Question

The International Rock Paper Scissors Society holds regional and national championships. Each region holds a semifinal competition in which contestants play 500 games of Rock Paper Scissors. The top 20 competitors in each region are invited to the national finals. Assume that you are provided with files for the East, Midwest, and Western regions. Each file contains the following fields for the top 20 competitors: last name, first name, and number of games won. The records in each file are sorted in alphabetical order. Merge the three files to create a file of the top 60 competitors who will compete in the national championship.

Need flowchart for scenario above.

Answer 1

Answer:

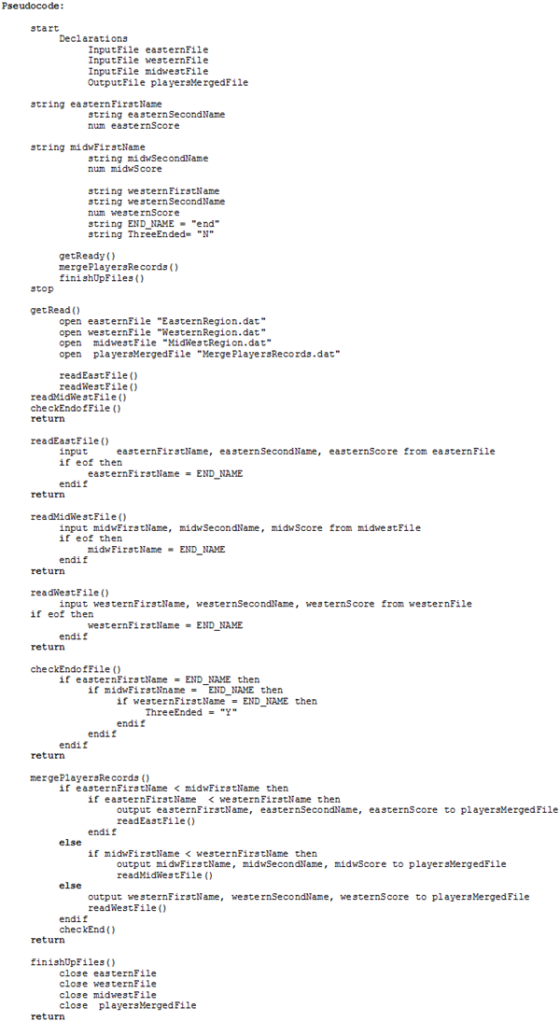

Pseudocode screen shot:

Pseudocode:

     start

          Declarations

              InputFile easternFile

              InputFile westernFile

              InputFile midwestFile

              OutputFile playersMergedFile

              string easternFirstName

              string easternSecondName

              num easternScore



             string midwFirstName

              string midwSecondName

              num midwScore



             string westernFirstName

              string westernSecondName

              num westernScore

              string END_NAME = "end"

              string ThreeEnded= "N"



          getReady()

          mergePlayersRecords()

          finishUpFiles()

     stop

     getRead()

          open easternFile "EasternRegion.dat"

          open westernFile "WesternRegion.dat"

          open midwestFile "MidWestRegion.dat"

          open playersMergedFile "MergePlayersRecords.dat"

          readEastFile()

          readWestFile()

           readMidWestFile()

          checkEndofFile()

     return

     readEastFile()

          input     easternFirstName, easternSecondName, easternScore from easternFile

          if eof then

              easternFirstName = END_NAME

          endif

     return

     readMidWestFile()

          input midwFirstName, midwSecondName, midwScore from midwestFile

          if eof then

              midwFirstName = END_NAME

          endif

     return

     readWestFile()

          input westernFirstName, westernSecondName, westernScore from westernFile

         if eof then

              westernFirstName = END_NAME

          endif

     return

     checkEndofFile()

          if easternFirstName = END_NAME then

              if midwFirstNname = END_NAME then

                   if westernFirstName = END_NAME then

                        ThreeEnded = "Y"

                   endif

              endif

          endif

     return

     mergePlayersRecords()

          if easternFirstName < midwFirstName then

              if easternFirstName < westernFirstName then

                   output easternFirstName, easternSecondName, easternScore to playersMergedFile

                   readEastFile()

              endif

          else

              if midwFirstName < westernFirstName then

                   output midwFirstName, midwSecondName, midwScore to playersMergedFile

                   readMidWestFile()

          else

              output westernFirstName, westernSecondName, westernScore to playersMergedFile

              readWestFile()

          endif

          checkEnd()

     return

     finishUpFiles()

          close easternFile

          close westernFile

          close midwestFile

          close playersMergedFile

     return
