Note: In all problems show your work, Draw the free body diagrams and write down equations -Determine the force in member BD and the components of the reaction at C. 15 cm o D 40 cm 50 cm 10 cm 500 N

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

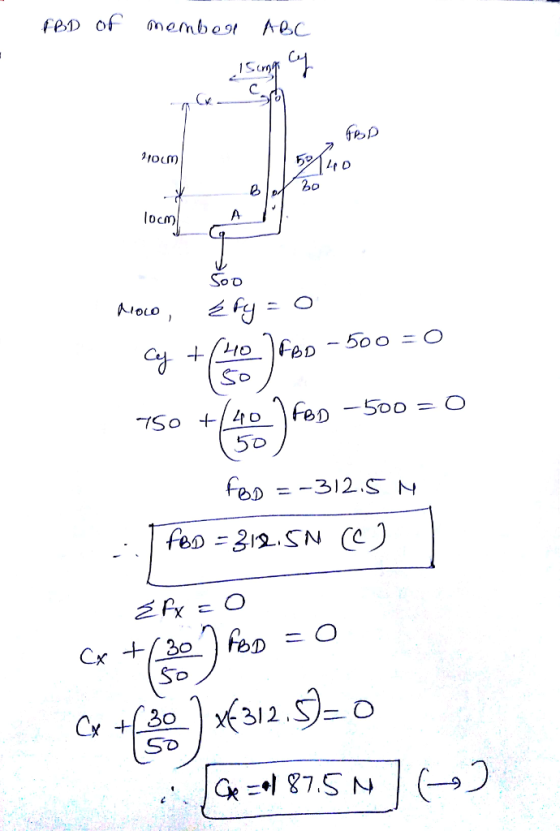

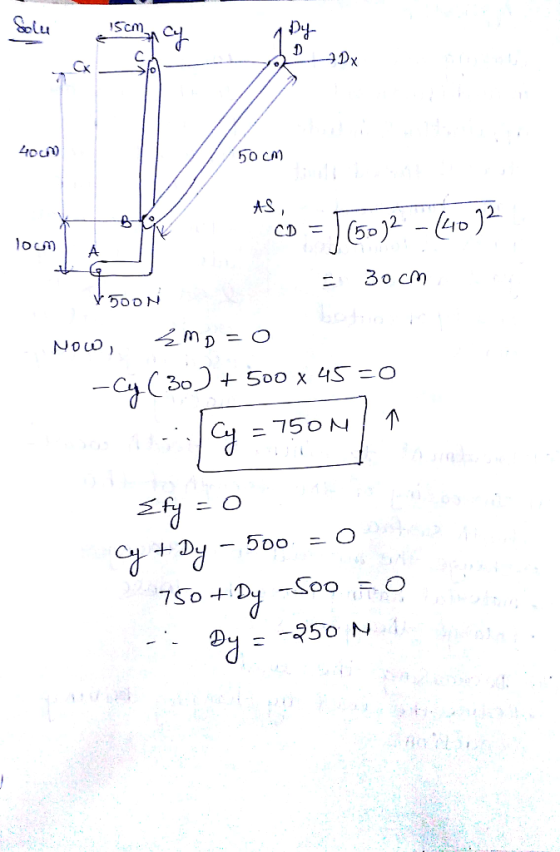

Add a comment

Answer 2

Similar Homework Help Questions

Note: In all problems show your work, Draw the free body diagrams and write down equations...

Note: In all problems show your work, Draw the free body diagrams and write down equations 1) 33% A rectangular plate is supported by three cables as shown. Draw the free body diagram. Knowing that the tension in cable AB is 100 N, determine the equation to find the weight of the plate. 500 B 350 350 130 300 450C Dimensions in mm
e body diagrams and write down Note: in all problems show your work, Draw the free...

e body diagrams and write down Note: in all problems show your work, Draw the free body diagrams and write do equations. 25%405 x 0.8-m gate AB is located at the bottom of a tank filled with water. The gate i hinged along its top edge A and rests on a frictionless stop at B. Determine the minimum tension reauired in cable BCD to open the eate. (specific weight 100 00 N/mA3) 0.2 m 0.3 m 0.4 m 0.3 mi
Requirement: (1) Draw necessary free body diagrams, (2) write necessary equations, and (3) name the adopted...

Requirement: (1) Draw necessary free body diagrams, (2) write necessary equations, and (3) name the adopted principle 3. The mass of block is 10 kg and the horizontal force applied to the block as shown in Figure below is 100 N. The coefficients of kinetic friction between the block and the inclined plane is μ A 0.2. Determine the acceleration of the block and its direction. Draw free body diagram and write the needed equation (25 points) 30P

4.36. For the three-degree-of-freedom mechanical system that follows, draw free-body diagrams for each of the components,...

4.36. For the three-degree-of-freedom mechanical system that follows, draw free-body diagrams for each of the components, carefully showing all external forces and moments. Be sure to show the reference positions for the position variables on the free-body diagrams. Directly from the component free-body diagrams, write down the equations of motion. ref k (spring) m2 12 b (dashpot) A coefficient of F-Fcos(of) y+ ref
I need help with this problem. Please show all work including the free-body diagrams, equilibrium equations,...

I need help with this problem. Please show all work including the free-body diagrams, equilibrium equations, calculations, etc. Thank you in advance! 4. Refer to Fig. 4. The 3kg ball at rest is hit by the 1kg ball traveling with a resultant velocity of v=10m/s. The coefficient of restitution between the materials of the balls is 0.5. Determine the velocities (x,y components, and resultant) of the balls after the collision. plane af-collision 3kg fig. 4 1kg) $300
please neatly and cleanly show all work, reasoning, and free body diagrams. thank you! Problem 03 For the frame sho...

please neatly and cleanly show all work, reasoning, and free body diagrams. thank you! Problem 03 For the frame shown in Figure 03, determine the components of all forces acting on the member ABC. Problem- 04 C 18 kN 2m B E 2 m A O F 3.6 m Figure -03 3*3*3 Problem 03 For the frame shown in Figure 03, determine the components of all forces acting on the member ABC. Problem- 04 C 18 kN 2m B E...

Note: Draw Free-body diagrams for all problems Q.1) Two flanged shafts subjected to a torque To...

Note: Draw Free-body diagrams for all problems Q.1) Two flanged shafts subjected to a torque To 18 kN-m are connected by four 30-mm bolts as shown in figure below. The diameter of the bolt circle is da- 200 mm. Calculate the shear stress in the bolts. To To
All work for these problems should be in your test for the in-class test, and on...

All work for these problems should be in your test for the in-class test, and on your own paper for the retest. Write down relevant equations, draw diagrams and show all of your work and label the different parts for full credit (20 points) A 1.5 kg block of wood is launched up a wooden ramp that has a 40-degree incline. The initial speed of the block is 12 m/s. The coefficient of static friction is 0.4 and the coefficient...
Solve: Draw the free body diagram, solve the reaction, shear and bending moment diagrams. Show all...

Solve: Draw the free body diagram, solve the reaction, shear and bending moment diagrams. Show all of the work 150 Lb/ft 30,000 ft Lb 10,000 ft Lb 7 ft A 8ft 9 ft

Draw free body diagrams and determine all support reactions (magnitude, units, and direction) and force in...

Draw free body diagrams and determine all support reactions (magnitude, units, and direction) and force in cable CB. For RISA-2D, consider the cable as a member but release both ends. 2 k/ft8 kips 10 ft 6 ft 4 ft
