Question

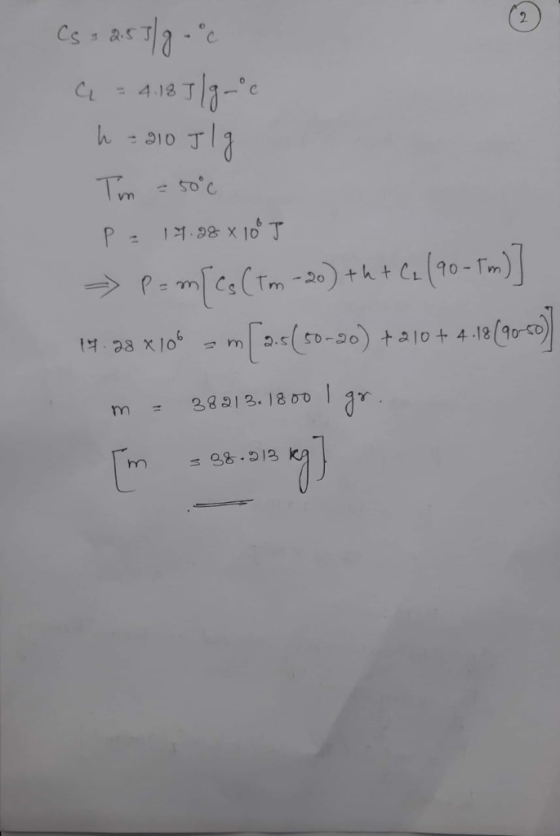

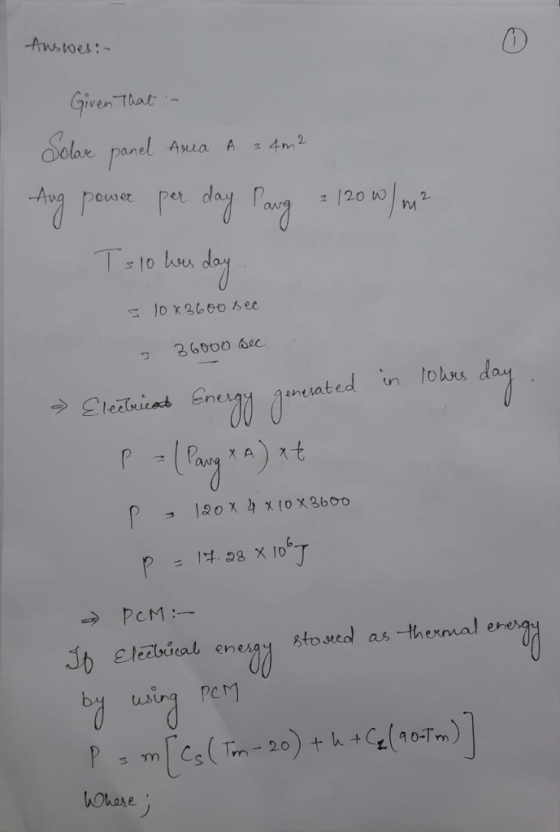

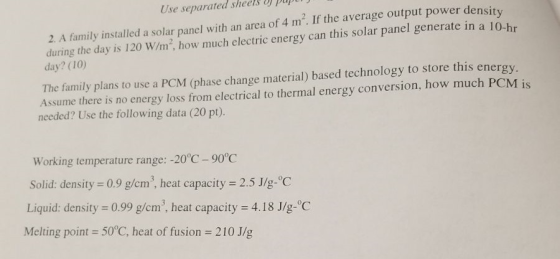

Use separated sheels ) puptr 2. A family installed a solar panel with an area of 4 m2. If the average output power density during the day is 120 W/ during the day is 120 W/m: how much clectric energy can this solar panel generate in a l day? (10) 0-hr The family plans to use a PCM (phase change material) based technology to store this energy Assume there is no energy loss from electrical to thermal energy conversion, how much PCM is needed? Use the following data (20 pt). Working temperature range: -20°C-90°C Solid: density 0.9 g/cm, heat capacity 2.5 J/g-C Liquid: density 0.99 g/cm. heat capacity 4.18 Jlg- C Melting point 50°C, heat of fusion 210 J/g

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Use separated sheels ) puptr 2. A family installed a solar panel with an area of...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • How much heat energy is required to convert 45.2 g of a solid iron at 28...

    How much heat energy is required to convert 45.2 g of a solid iron at 28 C to liquid iron at 1538 C? The molar heat of fusion of iron is 13.8 kJ/mol. Iron has a normal melting point of 1538 C. The specific heat capacity of solid iron is 0.449 J/ (g • C). Question 6 of 6 > How much heat energy is required to convert 45.2 g of solid iron at 28 °C to liquid iron at...

  • How much heat energy is required to convert 15.0 g of solid ethanol at -114.5 °C...

    How much heat energy is required to convert 15.0 g of solid ethanol at -114.5 °C to gasesous ethanol at 143.1 °C? The molar heat of fusion of ethanol is 4.60 kJ/mol and its molar heat of vaporization is 38.56 kJ/mol. Ethanol has a normal melting point of -114.5 °C and a normal boiling point of 78.4 °C. The specific heat capacity of liquid ethanol is 2.45 J/g·°C and that of gaseous ethanol is 1.43 J/g·°C. How much heat energy...

  • Please display answer to correct number of significant figures. 5.00000 out of 5.00000 points How much...

    Please display answer to correct number of significant figures. 5.00000 out of 5.00000 points How much energy in kJ is needed to heat 4.45 g of ice from-10.0。C to 30.0 ℃? The heat of fusion of water is 6.02 kJ/mol, and the heat capacity is 2.03 J/g。C for ice and 4.18 J/g"C for liquid water G

  • ilearnucredu Bonus Question: 1 Multiple Choice Question (8 pts) B1. Using the data shown below for...

    ilearnucredu Bonus Question: 1 Multiple Choice Question (8 pts) B1. Using the data shown below for water, determine in the following heating curve what region the water will be in when 25 g of liquid water at 35° C is provided with 11.5 kJ of energy. I V Time Boiling point Melting point Enthalpy of vaporization2,260 J/g Enthalpy of fusion Specific heat capacity (solid) 2.11 J/(g.K) Specific heat capacity (liquid) 4.18 J/(g K) Specific heat capacity (gas)2.08 J/(g. K) 373...

  • 1. At 1 atm, how much energy is required to heat 35.0 g H2O(s) at −10.0...

    1. At 1 atm, how much energy is required to heat 35.0 g H2O(s) at −10.0 ∘C to H2O(g) at 137.0 ∘C? Use the heat transfer constants found in this Quantity per gram per mole Enthalpy of fusion 333.6 J/g 6010. J/mol Enthalpy of vaporization 2257 J/g 40660 J/mol Specific heat of solid H2O (ice) 2.087 J/(g·°C) * 37.60 J/(mol·°C) * Specific heat of liquid H2O (water) 4.184 J/(g·°C) * 75.37 J/(mol·°C) * Specific heat of gaseous H2O (steam) 2.000...

  • How much heat energy is required to convert 94.5 g of solid iron at 26 °C...

    How much heat energy is required to convert 94.5 g of solid iron at 26 °C to liquid iron at 1538 °C? The molar heat of fusion of iron is 13.8 kJ/mol. Iron has a normal melting point of 1538 °C. The specific heat capacity of solid iron is 0.449 J/g·°C?

  • How much heat energy is required to convert 71.1 g of solid iron at 22°C to...

    How much heat energy is required to convert 71.1 g of solid iron at 22°C to liquid iron at 1538 °C? The molar heat of fusion of iron is 13.8 kJ/mol. Iron has a normal melting point of 1538 °C. The specific heat capacity of solid iron is 0.449 J/(g. C).

  • How much heat energy is required to convert 58.9 g of solid iron at 27 °C...

    How much heat energy is required to convert 58.9 g of solid iron at 27 °C to liquid iron at 1538 °C? The molar heat of fusion of iron is 13.8 kJ/mol. Iron has a normal melting point of 1538 °C. The specific heat capacity of solid iron is 0.449 J/g·°C.

  • How much heat energy is required to convert 57.6 g of solid iron at 21 °C...

    How much heat energy is required to convert 57.6 g of solid iron at 21 °C to liquid iron at 1538 °C? The molar heat of fusion of iron is 13.8 kJ/mol. Iron has a normal melting point of 1538 °C. The specific heat capacity of solid iron is 0.449 J/(g· °C). 9 = kJ

  • How much heat energy is required to convert 51.4 g of solid iron at 28 °C...

    How much heat energy is required to convert 51.4 g of solid iron at 28 °C to liquid iron at 1538 °C? The molar heat of fusion of iron is 13.8 kJ/mol. Iron has a normal melting point of 1538 °C. The specific heat capacity of solid iron is 0.449 J/(g °C) kJ
