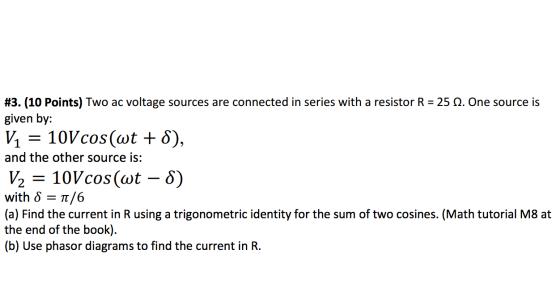

#3. Two ac voltage sources are connected in series with a resistor R = 25 Ohm....

Question

Question

science physics

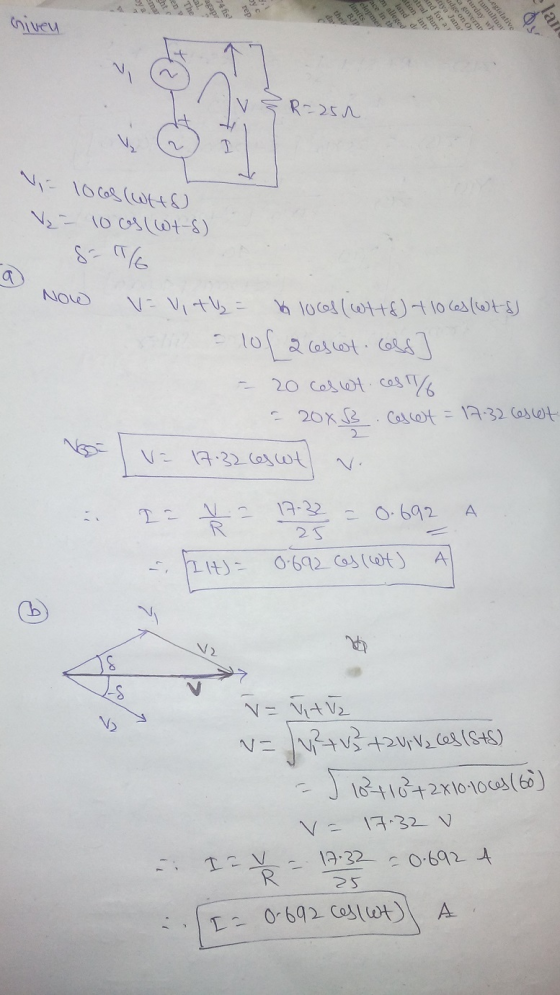

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

An AC voltage source is connected across a 100 Ohm resistor. If the source is set...

An AC voltage source is connected across a 100 Ohm resistor. If the source is set at peak voltage of 2 V at 60 Hz, find the RMS current through the resistor.
1. A resistor R and capacitor care connected in series with an AC voltage source with...

1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
2. A resistor R and inductor L are connected in series with an AC voltage source...

2. A resistor R and inductor L are connected in series with an AC voltage source with frequency fand maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejo), find expressions for Z and Ø. Write your answers in terms of the variables R, L, and o(= 21f). b. If the voltage source is described by the phasor V = Voejut, and the...

The source is connected across a series RC ac circuit with R = 9 Ohm and...

The source is connected across a series RC ac circuit with R = 9 Ohm and XC = 1/ωC = 2.7 Ohm. Q3. The source is connected across a series RC ac circuit with R = 9 Ohm and Xc = 1/(C = 2.7 Ohm. 3a) Find the magnitude of impedance of the series combination (Unit: Ohm) Submit Answer Tries 0/3 3b) Find the phase angle of impedance of theseries combination (Unit: deg) Submit Answer Tries 0/3 3c) Calculate the...
In an ac circuit a 500 ohm resistor is connected to a 16 volt ac source....

In an ac circuit a 500 ohm resistor is connected to a 16 volt ac source. (I) What is the current? (II) What is the power dissipated in the resistor? (III) What is the RMS voltage? (IV) What is the RMS current?
A 63 ohm resistor and a 8.0 microF capacitor are connected in series to an ac...

A 63 ohm resistor and a 8.0 microF capacitor are connected in series to an ac source. (a) Calculate the impedance of the circuit if the source frequency is 54 Hz. (b) Calculate the impedance of the circuit if the source frequency is 5.4 MHz. Express your answer using two significant figures.

A resistor with a 100 Ω is connected to an AC source with a maximum voltage...

A resistor with a 100 Ω is connected to an AC source with a maximum voltage of 10V. The RMS current and the average power of this resistor are?
Series and parallel RL and RC circuits with an AC source. A 60 Hz voltage source...

Series and parallel RL and RC circuits with an AC source. A 60 Hz voltage source has an amplitude of VT-120 V. For the following problems, compute the indicated phasors including both magnitudes and phase angles, and sketch the phasor diagrams (no submission) Q1. The source is connected across a series RL ac circuit with R 7.8 Ohm and XL = ωし= 5.1 Ohm. 1a) Find the magnitude of impedance of the series combination (Unit: Ohm) Submit Answer Tries 0/3...
A 10 ohm resistor is connected to a 120v AC alternating current source. What is the...

A 10 ohm resistor is connected to a 120v AC alternating current source. What is the power in kW dissipated in the resistor? a. 0.10 b. 0.14 c. 0.20 d. 0.29

Calculate the peak current in a 2.5 -k ohm resistor connected to a 220-V rms ac...

Calculate the peak current in a 2.5 -k ohm resistor connected to a 220-V rms ac source. Express your answer using two significant figures. I_peak =
