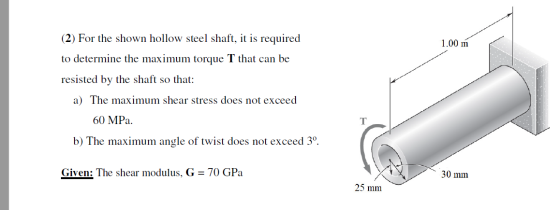

(2) For the shown hollow steel shaft, it is required 1.00 m to determine the maximum...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner and outer diameters respectively equal to 40 and 60 mm. The allowable shearing stress is 120 MPa with a modulus of rigidity (shear modulus) G-77 GPa, assuming fully elastic deformation. (a) What is the largest torque that can be applied to the shaft? (5 points) (b) What is the corresponding minimum value of the shearing stress in the shaft? (5 points) (c) What are...
please write some steps Fig.Q3 A driving shaft is made of steel whose modulus of rigidity...
please write some steps
Fig.Q3 A driving shaft is made of steel whose modulus of rigidity is 80 GN/m2. As shown in Fig.Q3(a), the shaft has a solid circular section and is subjected to a torque of 1400Nm applied, as indicated. 3. Calculate the angle of twist of one end relative to the other and the maximum shear stress which results. (a) As shown in Fig.Q3.(b), part of the shaft is then made hollow by boring a 35 mm diameter...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524 N·m from the engine to the generator. Determine the angle of twist (0) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T=524 N·m from the engine to the generator. Determine the angle of twist (%) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa. (10 points)
Mechanics of Materials. Need Help (b) The A-36 solid steel shaft is 3.5 m long and...
Mechanics of Materials. Need Help
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T-524 Nm from the engine to the generator. Determine the angle of twist () of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
A torque of 20 N-m is delivered to het gear A from the motor. If gear Cis motor. If gear C is sud...
A torque of 20 N-m is delivered to het gear A from the motor. If gear Cis motor. If gear C is suddenly locked so that it does not 100 mm 30 mm mW- rotate. If gear B is free to rotate, then determine (a) angle of twist of F with respect to E, and angle of twist of Fwith respect to D. The shaft which is mounted a set of bearing G and H is carrying all the gears...
G is 11.2*10^6 psi A shaft of length 2 m has the hollow cross section shown...
G is 11.2*10^6 psi
A shaft of length 2 m has the hollow cross section shown below (distances of the centerline of the wall shown). The shaft is made of an A36 structural steel; see table in the back of the book for the material properties (and note that modulus of rigidity refers also to the shear modulus G). If a torque T = 10 kN m is applied at one end while the other end is fixed, determine: 1)...
(2) The shaft is made from a solid steel section AB and a tubular portion made...
(2) The shaft is made from a solid steel section AB and a tubular portion made of steel and having a brass core. If it is fixed to a rigid support at A, and a torque of T= 50 N.m is applied to it at C, determine the angle of twist that occurs at C and compute the maximum shear stress and maximum shear strain in the brass and steel. Take Gsi = 75 GPa, Ghr = 37.5 GPa. 800...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm. Assume that the bearings shown allow free rotation of the shafts. If a 400 N-m torque is applied at gear D, determine (a) the maximum shear stress magnitudes in each shaft. (b) the angles of twist ф, and ф (c) the...
3- Determine the maximum shear stress in the beam section shown in the figure. Determine also...
3- Determine the maximum shear stress in the beam section shown in the figure. Determine also the rate of twist of the beam section if the shear modulus G is 25 GPa. 100 mm T-25 N.m 3 mm 3 mm 50 mm 80 mm 2 mm
3- Determine the maximum shear stress in the beam section shown in the figure. Determine also the rate of twist of the beam section if the shear modulus G is 25 GPa. 100 mm...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner and outer diameters respectively equal to 40 and 60 mm. The allowable shearing stress is 120 MPa with a modulus of rigidity (shear modulus) G-77 GPa, assuming fully elastic deformation. (a) What is the largest torque that can be applied to the shaft? (5 points) (b) What is the corresponding minimum value of the shearing stress in the shaft? (5 points) (c) What are...
please write some steps
Fig.Q3 A driving shaft is made of steel whose modulus of rigidity is 80 GN/m2. As shown in Fig.Q3(a), the shaft has a solid circular section and is subjected to a torque of 1400Nm applied, as indicated. 3. Calculate the angle of twist of one end relative to the other and the maximum shear stress which results. (a) As shown in Fig.Q3.(b), part of the shaft is then made hollow by boring a 35 mm diameter...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524 N·m from the engine to the generator. Determine the angle of twist (0) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T=524 N·m from the engine to the generator. Determine the angle of twist (%) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa. (10 points)
Mechanics of Materials. Need Help
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T-524 Nm from the engine to the generator. Determine the angle of twist () of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
A torque of 20 N-m is delivered to het gear A from the motor. If gear Cis motor. If gear C is suddenly locked so that it does not 100 mm 30 mm mW- rotate. If gear B is free to rotate, then determine (a) angle of twist of F with respect to E, and angle of twist of Fwith respect to D. The shaft which is mounted a set of bearing G and H is carrying all the gears...
G is 11.2*10^6 psi
A shaft of length 2 m has the hollow cross section shown below (distances of the centerline of the wall shown). The shaft is made of an A36 structural steel; see table in the back of the book for the material properties (and note that modulus of rigidity refers also to the shear modulus G). If a torque T = 10 kN m is applied at one end while the other end is fixed, determine: 1)...
(2) The shaft is made from a solid steel section AB and a tubular portion made of steel and having a brass core. If it is fixed to a rigid support at A, and a torque of T= 50 N.m is applied to it at C, determine the angle of twist that occurs at C and compute the maximum shear stress and maximum shear strain in the brass and steel. Take Gsi = 75 GPa, Ghr = 37.5 GPa. 800...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm. Assume that the bearings shown allow free rotation of the shafts. If a 400 N-m torque is applied at gear D, determine (a) the maximum shear stress magnitudes in each shaft. (b) the angles of twist ф, and ф (c) the...
3- Determine the maximum shear stress in the beam section shown in the figure. Determine also the rate of twist of the beam section if the shear modulus G is 25 GPa. 100 mm T-25 N.m 3 mm 3 mm 50 mm 80 mm 2 mm
3- Determine the maximum shear stress in the beam section shown in the figure. Determine also the rate of twist of the beam section if the shear modulus G is 25 GPa. 100 mm...
