The state of Iowa is among the top three states in U.S. in wind power generation....
The state of Iowa is among the top three states in U.S. in wind power generation. In 2016, over 20 billion kWh of electrical energy in Iowa was generated by wind power. Assuming that wind speed at the altitude of wind turbine is in average of 6 m/s, the efficiency of converting wind energy to the electricity is 80 %, and all wind turbines work constantly throughout the year. We can further assume that the air in Iowa has an average temperature of 11 °C and the air pressure of 97.5 kPa at the height of wind turbine, and the turbine has a 12-m diameter flow section. Complete the following calculations:

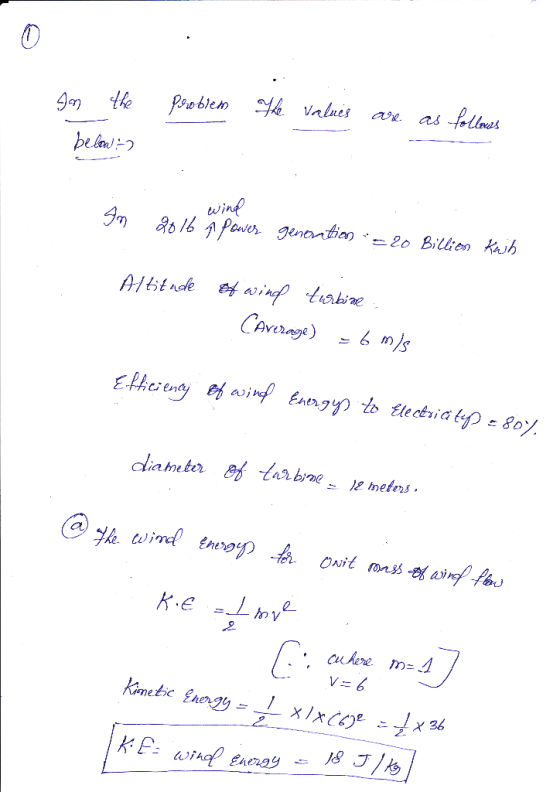

(a) Estimate the wind energy for unit mass of wind flow (J/kg) operating on a turbine.
(b) Estimate the mass flow of the turbine.

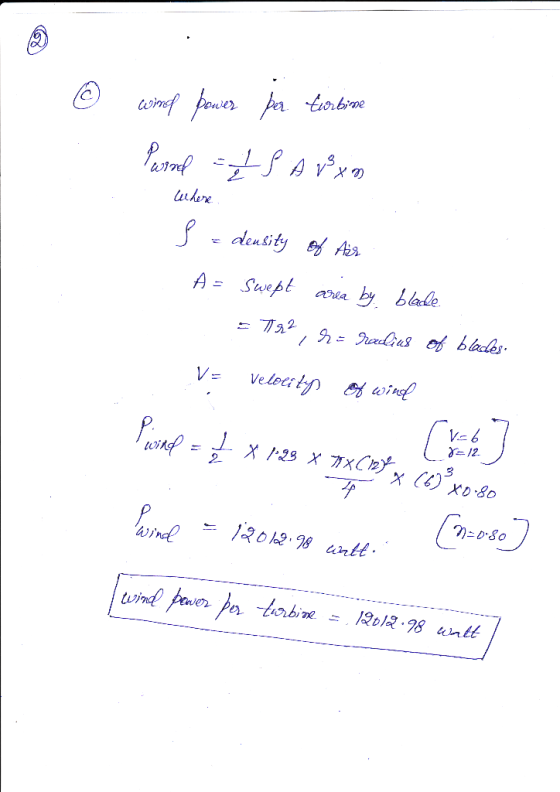

(c) () Estimate the wind power per turbine.

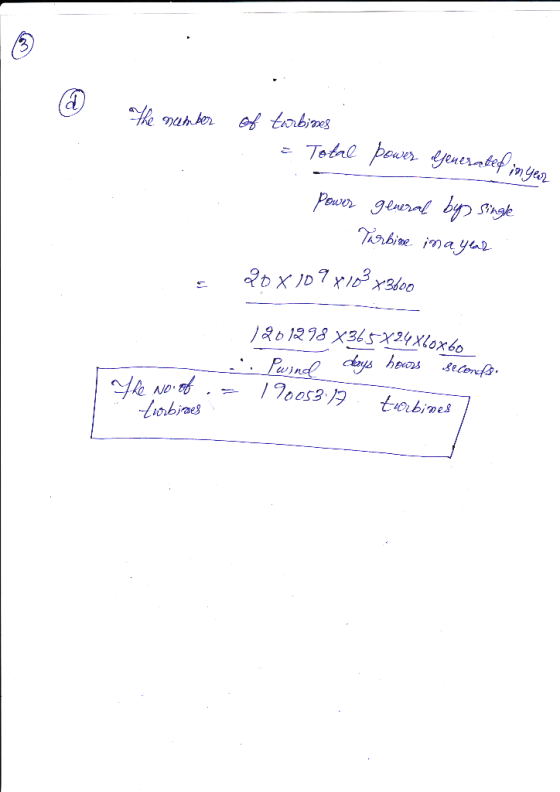

(d) Estimate how many wind turbines we have in the state of Iowa?
Homework Answers
Add Answer to:
The state of Iowa is among the top three states in U.S. in wind
power generation....
a) The following figure shows a water dam built for a hydroelectric power project running constantly...
a) The following figure shows a water dam built for a hydroelectric power project running constantly round the year. During a dry season, it acts as water reservoir of constant height 80 m. Meanwhile rainy season, water flow of 3 m/s is added to the system. (Water density 10x10 kg/m' and volume flow, V = 45x10 m/s respectively and the gravitational acceleration is about 9.8 kg/m for both seasons). Evaluate the followings: Ravet afsec RE Figure 2: Water flow utilization...
The rotor diameter of the wind turbine rotating at 20 rpm in winds of 30 km/h...
The rotor diameter of the wind turbine rotating at 20 rpm in winds of 30 km/h is 80 m. What is the annual revenue generated by wind turbines if 35% of the kinetic energy of the wind is converted into power, (a) the power generated (kW), (b) wing end speed (km/h) (c) is supplied to the consumer at $0.06 kWh? At this time, the density of the air is 1.225 kg/m3.
(4 points) A large wind turbine is used for electricity generation. The turbine has a blade...
(4 points) A large wind turbine is used for electricity generation. The turbine has a blade span diameter of 53 m and is installed in an area that has steady winds at 5.6 m/s. The efficiency of this wind turbine-generator is 34.8 %. The density of the air is 1.25 kgm3kgm3. What is the power generated from this windmill? If the blade span diameter is reduced by 33 %, the efficiency of the turbine-generator increases to 73.428 %. What is...
. A typical commercial wind turbine costs approximately $2 million per MW of installed power and...
. A typical commercial wind turbine costs approximately $2 million per MW of installed power and requires 5.76 TJ per million dollars of energy to manufacture the wind turbine. (a) Calculate the amount of energy that is consumed (i.e. energy invested) in the manufacture ofa 1.5 MW wind turbine, assuming that turbine manufacture requires 5.76 TJ per million dollars spent. (TJ Tera-joules 1012 joules) (b) If the wind turbine has blades that are 40 meters (radius) long and the average...
Question 30 6 points Save Answer (LO4) A wind turbine with a 40-m-diameter rotor is rotating...
Question 30 6 points Save Answer (LO4) A wind turbine with a 40-m-diameter rotor is rotating at 21 rpm under steady winds at an average velocity of 14.7 m/s. The electrical power output from the generator is 350 kW. The efficiency of the gearbox is 93% and generator efficiency is 86%. Take the density of air to be 1.013 kg/m. Answer the following questions; use the white paper to work-out your calculations and then choose the correct answer from the...
Find the power production (in MW) of a 25 m radius wind turbine if the average...
Find the power production (in MW) of a 25 m radius wind turbine if the average wind speed is 12 m/s and the efficiency of this turbine in converting kinetic energy of air to mechanical work is 10%? The density of air is 1.20 kg/m3 .
7.26. The conversion of the kinetic energy of wind to electricity may be an attractive altemative...
7.26. The conversion of the kinetic energy of wind to electricity may be an attractive altemative to the use of fossil fuels. Typically, wind causes the rotor of a turbine to turn, and a generator converts the rotational kinetic energy ofthe rotor into electricity. Power generated by a wind turbine (Ws) can be estimated from the density of the air (p), wind speed (u), and turbine rotor diameter (D) using the following formula лD? 1 W. ти* х п, where...
A community of 2,500 homes is considering their options for generating electricity locally. The final three...
A community of 2,500 homes is considering their options for generating electricity locally. The final three options under consideration are: A river which runs to the north of the community, which is suitable for the installation of a hydroelectric generation facility. A large flat-topped hill to the east of the community, which could be used for a wind farm. Open land to the south of the community, which could also be used for a wind farm. The residents of the...
5. The three rotor blades of a wind turbine can be considered to be long thin...
5. The three rotor blades of a wind turbine can be considered to be long thin rods. Each of the rotor blades is 43 m long and has a mass of 60 Mg. The turbine is spinning at 20 rpm and is generating 2.8 MW of power. This problem DOES need to be written out for your portfolio. NOTES IMAGES DISCUSS UNITS STATS HELP Part Description Answer Chk History nergy of the Determine the kinetic e turbine (include units with...
NO INTERPOLATION REQUIRED Air enters an adiabatic turbine at 1000 kPa and 1625 degrees C (state...
NO INTERPOLATION REQUIRED Air enters an adiabatic turbine at 1000 kPa and 1625 degrees C (state 1) with a mass flow rate of 5 kg/s and leaves at 100 kPa the isentropic efficiency of the turbine is 85%. Neglecting the kinetic energy change of the steam, and considering variable specific heats, determine: a. the isentropic power of the turbine Isentropic power in kW b. the temperature at the turbine exit temperature at exit in degrees C c. the actual power...
a) The following figure shows a water dam built for a hydroelectric power project running constantly round the year. During a dry season, it acts as water reservoir of constant height 80 m. Meanwhile rainy season, water flow of 3 m/s is added to the system. (Water density 10x10 kg/m' and volume flow, V = 45x10 m/s respectively and the gravitational acceleration is about 9.8 kg/m for both seasons). Evaluate the followings: Ravet afsec RE Figure 2: Water flow utilization...
. A typical commercial wind turbine costs approximately $2 million per MW of installed power and requires 5.76 TJ per million dollars of energy to manufacture the wind turbine. (a) Calculate the amount of energy that is consumed (i.e. energy invested) in the manufacture ofa 1.5 MW wind turbine, assuming that turbine manufacture requires 5.76 TJ per million dollars spent. (TJ Tera-joules 1012 joules) (b) If the wind turbine has blades that are 40 meters (radius) long and the average...
Question 30 6 points Save Answer (LO4) A wind turbine with a 40-m-diameter rotor is rotating at 21 rpm under steady winds at an average velocity of 14.7 m/s. The electrical power output from the generator is 350 kW. The efficiency of the gearbox is 93% and generator efficiency is 86%. Take the density of air to be 1.013 kg/m. Answer the following questions; use the white paper to work-out your calculations and then choose the correct answer from the...
7.26. The conversion of the kinetic energy of wind to electricity may be an attractive altemative to the use of fossil fuels. Typically, wind causes the rotor of a turbine to turn, and a generator converts the rotational kinetic energy ofthe rotor into electricity. Power generated by a wind turbine (Ws) can be estimated from the density of the air (p), wind speed (u), and turbine rotor diameter (D) using the following formula лD? 1 W. ти* х п, where...
5. The three rotor blades of a wind turbine can be considered to be long thin rods. Each of the rotor blades is 43 m long and has a mass of 60 Mg. The turbine is spinning at 20 rpm and is generating 2.8 MW of power. This problem DOES need to be written out for your portfolio. NOTES IMAGES DISCUSS UNITS STATS HELP Part Description Answer Chk History nergy of the Determine the kinetic e turbine (include units with...
