Question

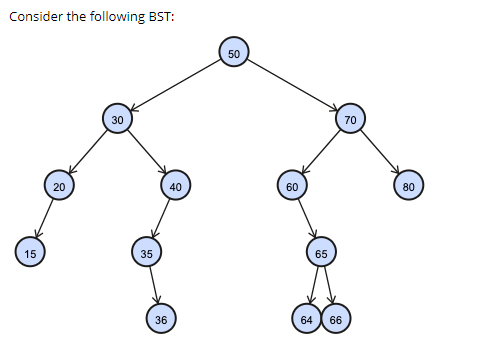

Consider the following BST: 50 30 70 20 40 60 80 15 35 65 36 64 66

Answer 1

Solution:

(32)

=>Node to be inserted = 62

The answers will be:

left of right: left

node: 64

Explanation:

=>In binary search tree(BST) a node with value less than node is inserted at the left part of root otherwise right part of the node.

=>The above property is being followed for every node of the tree.

=>62 > 50 hence it will be inserted at the right side of 50.

=>62 < 70 hence it will be inserted at the left side of 70.

=>62 > 60 hence it will be inserted at the right side of 60.

=>62 < 65 hence it will be inserted at the left side of 65.

=>62 < 64 hence it will be inserted at the left side of 64.

(33)

The answers will be:

Predecessor: 40

Successor: 60

Explanation:

Finding predecessor of 50:

=>Predecessor of a node is the maximum value in the left subtree of that node.

=>Precessor of 50 = 40

Finding successor of 50:

=>Successor of a node is the minimum value in the right subtree of that node.

=>Successor of 50 = 60

(34)

=>Successor is used for deleting the nodes.

=>Nodes to be deleted in order = 80, 40, 50

Explanation:

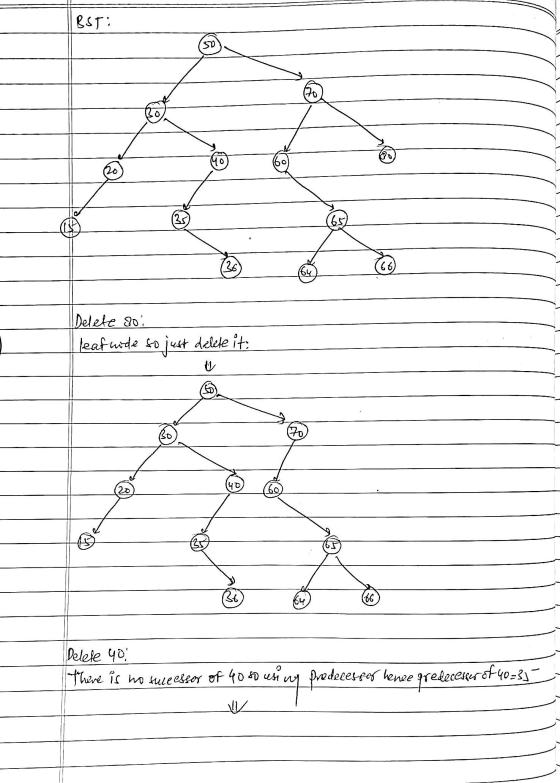

BST: 170 40 60 20 (65) (64 66) Delete soi leaf uide to just delete it: Bol 40 20 64 06 Delele you there is no tuleessor of 40 so using prodeeester hense predecessor of 40=31

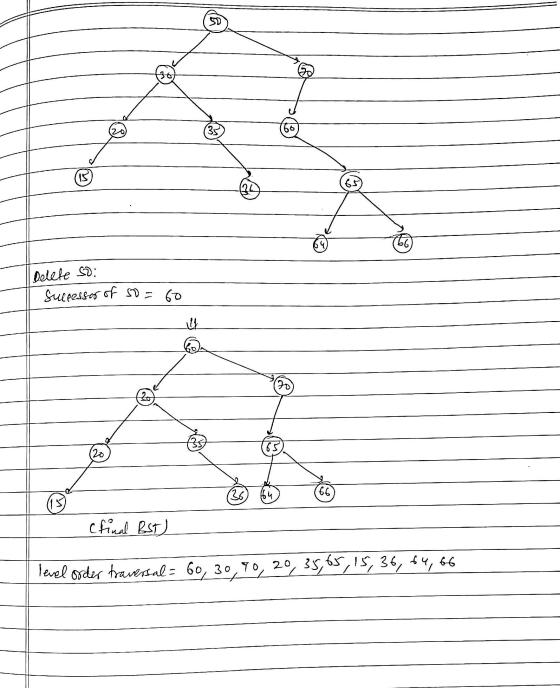

36 20 35 66 65 66) Delete SD: successor of so = 60 U 20 36 (64 66 (13) cfinal BST level order traversal = 60, 30,90, 29, 35,65,15,36, 64,66

I have explained each and every part with the help of statements as well as images attached to the answer above.
