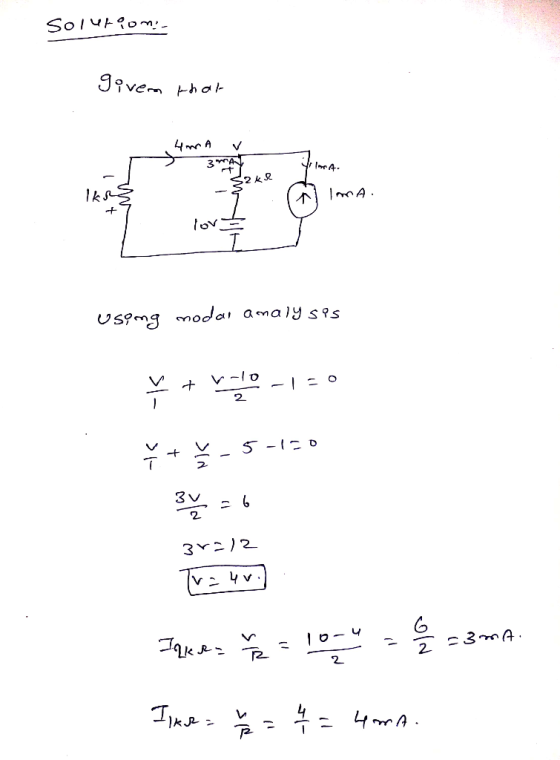

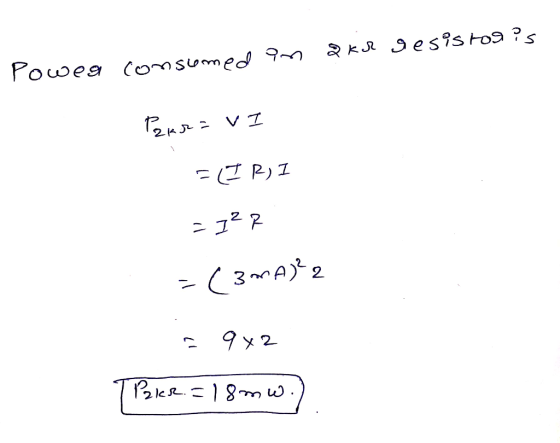

2) What is the power consumed by the 2K 12 V = resistor? In {alhr AR?...
Resistor 1= 3.5 ohms Resistor 2 = 3.5 ohms Power Supply = 12 V if the...
Resistor 1= 3.5 ohms
Resistor 2 = 3.5 ohms
Power Supply = 12 V
if the wire connected to the negative terminal of the power
supply has a voltage of 0, then what is tje voltage of the wire
which is connecte to the two resistors (the middle wire)?
لی) - | R. وط
a) Find each current for the cicruit below. b) Find the power consumed by each resistor...
a) Find each current for the cicruit below.
b) Find the power consumed by each resistor and the power
generated by each battery.
Find (a) I1, (b) I2, and (c) Is for the circuit below. 36 V 0.5 Ω 1.5Ω 2Ω 3Ω 2 Fig. 5 4 V 1Ω
Q6. Find the power consumed by the 50 k2 resistor. 200 k 2 200 k92 200...
Q6. Find the power consumed by the 50 k2 resistor. 200 k 2 200 k92 200 k 2 w 50 k2 - Vout + 8 8 v☺ + V = = P = 160 mW P= 1.28 mW • P = 412 mW • P = 6.25 kW • Unknown, since R3 is unknown
What is the current through each resistor in part A (in mA)? (Indicate the direction with...
What is the current through each resistor in part A (in mA)?
(Indicate the direction with the signs of your answers.)
I1
= mA
I2
= mA
I3
= mA
(b)
What is the current through each resistor in part B (in mA)?
(Indicate the direction with the signs of your answers.)
I1
= mA
I2
= mA
I3
= mA
(c)
What is the power dissipated or consumed by each circuit (in
mW)?
circuit A mWcircuit B mW
(d)...
Problem 4.6. Find the average power absorbed by the 2 ohm resistor. j2 <--Ix +12/0 V...
Problem 4.6. Find the average power absorbed by the 2 ohm resistor. j2 <--Ix +12/0 V 2 1x -j3 Problem 4.7. power Determine the impedance Z for maximum power transfer and the maximunm -j3 j2 -) 610 V
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V...
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V = 15 Volts. What is the current I through the resistor? Express your answer in mA. QUESTION 2 5 points Save Answer Three resistors are connected in series: R1 10k Ohms, R2 = 17k Ohms, R3 = 32k Ohms. A DC voltage source ( Volts) is connected across the three resistors. Determine the current I in mA. 7 QUESTION 3 5 points Save Answer...
A 12-V battery causes a current of 0.80A through a resistor. A) What is its resistance? B)...
A 12-V battery causes a current of 0.80A through a resistor. A) What is its resistance? B) How many joules of energy does the battery lose in a minute? You buy a 75-W lightbulb in Europe, where electricity is delivered to homes at 240 V. If you use the lightbulb in the United States at 120 V (assume its resistance does not change), how bright will it be relative to 75-W 120-V bulbs? [Hint: Assume roughly that brightness is proportional to...
A 8.0-? and a 6.0-? resistor are connected in parallel to a 12-V battery. (a) What...
A 8.0-? and a 6.0-? resistor are connected in parallel to a 12-V battery. (a) What is the current in the circuit? (b) What is the voltage drop across each resistor? (c) What is the power dissipated by each resistor?
Find the power dissipated in the 4 kΩ resistor 2. 6 V 24 V power
Find the power dissipated in the 4 kΩ resistor 2. 6 V 24 V power
a 1 ohm and a 2 ohm resistor are connected in series to a 12 v...
a 1 ohm and a 2 ohm resistor are connected in series to a 12 v power supply. which resistor has greater potential difference across it?
Resistor 1= 3.5 ohms
Resistor 2 = 3.5 ohms
Power Supply = 12 V
if the wire connected to the negative terminal of the power
supply has a voltage of 0, then what is tje voltage of the wire
which is connecte to the two resistors (the middle wire)?
لی) - | R. وط
a) Find each current for the cicruit below.
b) Find the power consumed by each resistor and the power
generated by each battery.
Find (a) I1, (b) I2, and (c) Is for the circuit below. 36 V 0.5 Ω 1.5Ω 2Ω 3Ω 2 Fig. 5 4 V 1Ω
Q6. Find the power consumed by the 50 k2 resistor. 200 k 2 200 k92 200 k 2 w 50 k2 - Vout + 8 8 v☺ + V = = P = 160 mW P= 1.28 mW • P = 412 mW • P = 6.25 kW • Unknown, since R3 is unknown
What is the current through each resistor in part A (in mA)?
(Indicate the direction with the signs of your answers.)
I1
= mA
I2
= mA
I3
= mA
(b)
What is the current through each resistor in part B (in mA)?
(Indicate the direction with the signs of your answers.)
I1
= mA
I2
= mA
I3
= mA
(c)
What is the power dissipated or consumed by each circuit (in
mW)?
circuit A mWcircuit B mW
(d)...
Problem 4.6. Find the average power absorbed by the 2 ohm resistor. j2 <--Ix +12/0 V 2 1x -j3 Problem 4.7. power Determine the impedance Z for maximum power transfer and the maximunm -j3 j2 -) 610 V
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V = 15 Volts. What is the current I through the resistor? Express your answer in mA. QUESTION 2 5 points Save Answer Three resistors are connected in series: R1 10k Ohms, R2 = 17k Ohms, R3 = 32k Ohms. A DC voltage source ( Volts) is connected across the three resistors. Determine the current I in mA. 7 QUESTION 3 5 points Save Answer...
Find the power dissipated in the 4 kΩ resistor 2. 6 V 24 V power
