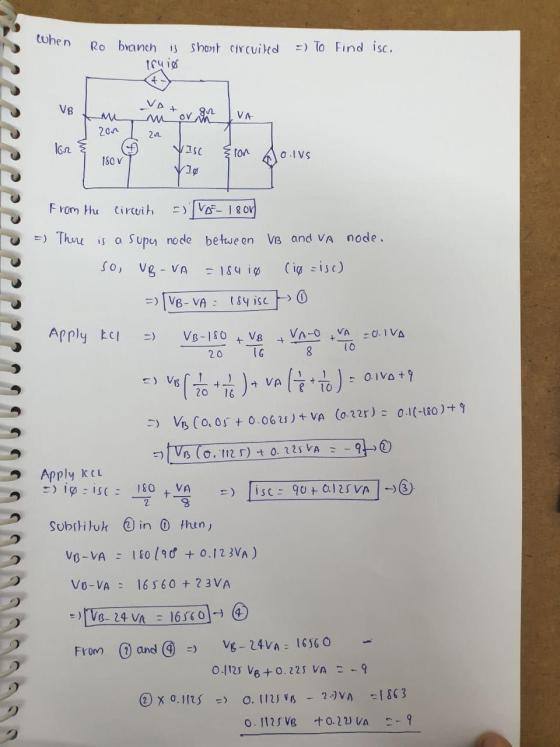

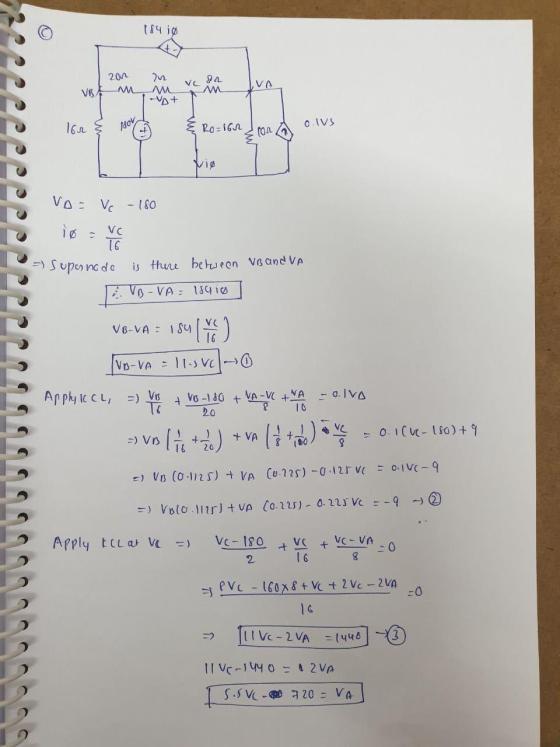

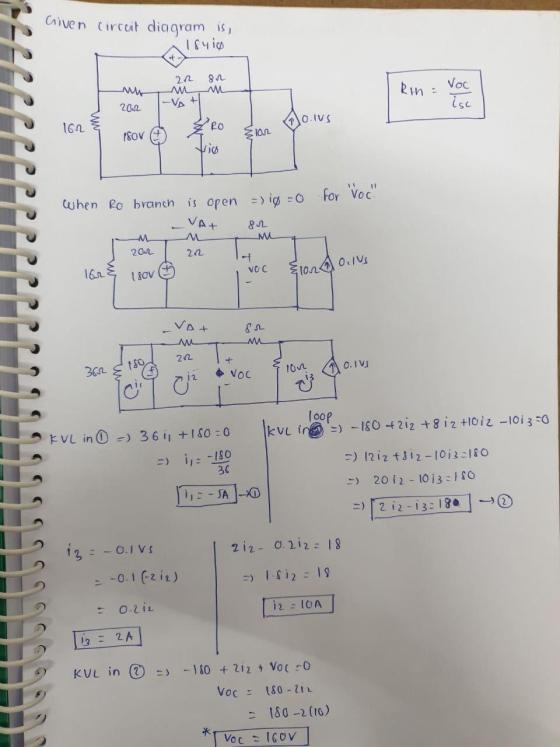

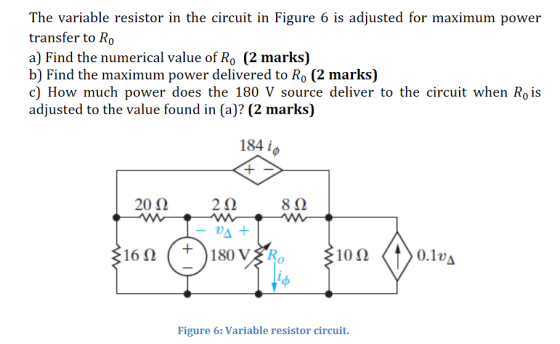

The variable resistor in the circuit in Figure 6 is adjusted for maximum power transfer to ?0 a) Find the numerical value of ?0 (2 marks) b) Find the maximum power delivered to ?0 (2 marks) c) How much power does the 180 V source deliver to the circuit wh
The variable resistor in the circuit in Figure 6 is adjusted for maximum power transfer to \(R_{0}\)

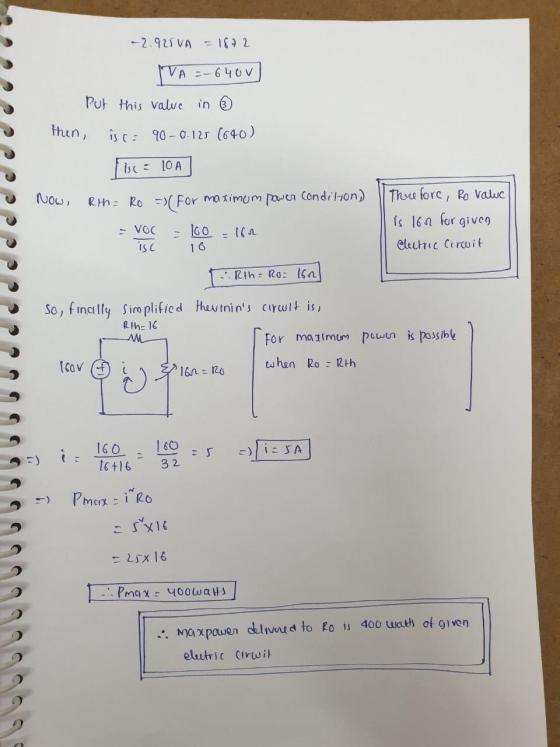

a) Find the numerical value of \(R_{0}\) (2 marks)
b) Find the maximum power delivered to \(R_{0}\) (2 marks)

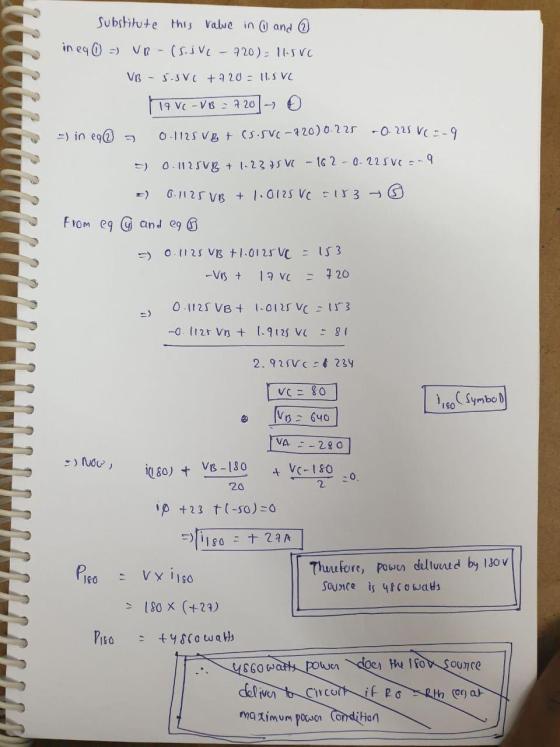

c) How much power does the \(180 \mathrm{~V}\) source deliver to the circuit when \(R_{0}\) is adjusted to the value found in (a)? (2 marks)
Homework Answers
Add Answer to:
The variable resistor in the circuit in Figure 6 is adjusted for maximum power transfer to ?0 a) Find the numerical value of ?0 (2 marks) b) Find the maximum power delivered to ?0 (2 marks) c) How much power does the 180 V source deliver to the circuit wh
The variable resistor in the circuit in (Figure 1) is adjusted for maximum power transfer to...
The variable resistor in the circuit in (Figure 1) is adjusted
for maximum power transfer to Ro. Suppose that ρ = 350.
Answer parts A-C please. Will thumb down if incorrect.
Express your answer to three significant figures and include the appropriate units. The variable resistor in the circuit in (Figure 1) is adjusted for maximum power transfer to R. Suppose that p= 350 R. = 43.0588 2 Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining...
Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to...
Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to Ro a) b) c) Find the value of Ro Find the maximum power that can be delivered to Ro What percentage of the total power developed in the circuit is delivered to Ro found in parta)? 316is 16? 32 ? A 180 ? 200 V 64 ? 48 ?
The variable resistor (R) in the circuit in (Figure 1) is adjusted for maximum power transfer...
The variable resistor (R) in the circuit in (Figure 1) is adjusted for maximum power transfer to R. Suppose that P=256 X Incorrect; Try Again: 3 attempts remaining Part 6 Figure What percentage of the total power developed in the circuit is delivered to R, found in partA? Express your answer using three significant figures. 1 of 1 V AED vec RO? % delivered = 40 160 Submit Previous Answers Request Answer 400 V 180 C 200 V X Incorrect:...
In the circuit given in Figure below, the resistor (R L ) is adjusted until it absorbs maximum power from the circuit.
In the circuit given in Figure below, the resistor (R L ) is adjusted until it absorbs maximum power from the circuit. Find the following:a) Thevenin equivalent voltage using node voltage methodb) Thevenin equivalent resistance using methodc) Thevenin equivalent resistance using the test-source methodd) Value of R L for maximum power transfer and maximum power delivered to the load resistor
The variable resistor R in the figure below is Adjusted until it Absorbs The maximum power...
The variable resistor R in the figure below is Adjusted until it Absorbs The maximum power from the circuit a) Calculate the value of R FOV MAXIMUM power transfer. 16-) Determine the MAXIMUM power absorbed by the resistov R. 0 m 44 R 54 $8 $ R #4 18VE)
A variable resistor R is connected across the terminals a, b in the circuit in (Figure...
A variable resistor R is connected across the terminals a, b in the circuit in (Figure 1). The variable resistor is adjusted until maximum power is transferred to R, Suppose that Ug = 350 V and R = 13 kl. Part D 1.0 M 1.5 M Find the resistor from the table closest in value to the Ro Common Standard Resistor Values (12) 100 1.0 k 10 k 100 k 120 1.2 k 12 k 120k 1.5k 15 k 150...
Oh man please help im so lost woth AC. Final is later today :( Problem 2. Maximum Power Delivered (10 marks) Find the impedance Zi. for maximum average power transfer and the value of the maximum...
Oh
man please help im so lost woth AC. Final is later today :(
Problem 2. Maximum Power Delivered (10 marks) Find the impedance Zi. for maximum average power transfer and the value of the maximum average power transferred to Zi for the circuit shown below. 2 3/10° A
Problem 2. Maximum Power Delivered (10 marks) Find the impedance Zi. for maximum average power transfer and the value of the maximum average power transferred to Zi for the circuit shown...
Problem 4.87 The variable resistor (R.) in the circuit in (Figure 1) is adjusted until it...
Problem 4.87 The variable resistor (R.) in the circuit in (Figure 1) is adjusted until it absorbs maximum power from the circuit. Suppose that n = 5.0. Find the value of R. Express your answer to three significant figures and include the appropriate units. R. = Value Units Submit Request Answer Part B Find the maximum power delivered to Ro- Express your answer to three significant figures and include the appropriate units. Pmax = Value Units Submit Request Answer Figure...
b) Find the Thèvenin equivalent circuit across a and b for the circuit given in Figure8....
b) Find the Thèvenin equivalent circuit across a and b for the circuit given in Figure8. c) The variable resistor RL in Figure 8 is adjusted for maximum power transfer to RL What is the value of RL when maximum power transfer occurs? d) What percentage of the total power developed in the circuit is delivered to R
Problem 4.90 PSpicelMultisim Part A The variable resistor (RL.) in the circuit in (Figure 1) is a...
Problem 4.90 PSpicelMultisim Part A The variable resistor (RL.) in the circuit in (Figure 1) is adjusted for maximum power transfer to RI. Suppose that R:54 Ω Find the numerical value of RL Express your answer to three significant figures and include the appropriate units RL-Value Units Submit vio Figure Incorrect; Try Again; 4 attempts remaining Part B 30 0 Find the maximum power transferred to RI Express your answer to three significant figures and include the appropriate units 45...
The variable resistor in the circuit in (Figure 1) is adjusted
for maximum power transfer to Ro. Suppose that ρ = 350.
Answer parts A-C please. Will thumb down if incorrect.
Express your answer to three significant figures and include the appropriate units. The variable resistor in the circuit in (Figure 1) is adjusted for maximum power transfer to R. Suppose that p= 350 R. = 43.0588 2 Submit Previous Answers Request Answer X Incorrect; Try Again; 9 attempts remaining...
Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to Ro a) b) c) Find the value of Ro Find the maximum power that can be delivered to Ro What percentage of the total power developed in the circuit is delivered to Ro found in parta)? 316is 16? 32 ? A 180 ? 200 V 64 ? 48 ?
The variable resistor (R) in the circuit in (Figure 1) is adjusted for maximum power transfer to R. Suppose that P=256 X Incorrect; Try Again: 3 attempts remaining Part 6 Figure What percentage of the total power developed in the circuit is delivered to R, found in partA? Express your answer using three significant figures. 1 of 1 V AED vec RO? % delivered = 40 160 Submit Previous Answers Request Answer 400 V 180 C 200 V X Incorrect:...
The variable resistor R in the figure below is Adjusted until it Absorbs The maximum power from the circuit a) Calculate the value of R FOV MAXIMUM power transfer. 16-) Determine the MAXIMUM power absorbed by the resistov R. 0 m 44 R 54 $8 $ R #4 18VE)
A variable resistor R is connected across the terminals a, b in the circuit in (Figure 1). The variable resistor is adjusted until maximum power is transferred to R, Suppose that Ug = 350 V and R = 13 kl. Part D 1.0 M 1.5 M Find the resistor from the table closest in value to the Ro Common Standard Resistor Values (12) 100 1.0 k 10 k 100 k 120 1.2 k 12 k 120k 1.5k 15 k 150...
Oh
man please help im so lost woth AC. Final is later today :(
Problem 2. Maximum Power Delivered (10 marks) Find the impedance Zi. for maximum average power transfer and the value of the maximum average power transferred to Zi for the circuit shown below. 2 3/10° A
Problem 2. Maximum Power Delivered (10 marks) Find the impedance Zi. for maximum average power transfer and the value of the maximum average power transferred to Zi for the circuit shown...
Problem 4.87 The variable resistor (R.) in the circuit in (Figure 1) is adjusted until it absorbs maximum power from the circuit. Suppose that n = 5.0. Find the value of R. Express your answer to three significant figures and include the appropriate units. R. = Value Units Submit Request Answer Part B Find the maximum power delivered to Ro- Express your answer to three significant figures and include the appropriate units. Pmax = Value Units Submit Request Answer Figure...
b) Find the Thèvenin equivalent circuit across a and b for the circuit given in Figure8. c) The variable resistor RL in Figure 8 is adjusted for maximum power transfer to RL What is the value of RL when maximum power transfer occurs? d) What percentage of the total power developed in the circuit is delivered to R
Problem 4.90 PSpicelMultisim Part A The variable resistor (RL.) in the circuit in (Figure 1) is adjusted for maximum power transfer to RI. Suppose that R:54 Ω Find the numerical value of RL Express your answer to three significant figures and include the appropriate units RL-Value Units Submit vio Figure Incorrect; Try Again; 4 attempts remaining Part B 30 0 Find the maximum power transferred to RI Express your answer to three significant figures and include the appropriate units 45...
