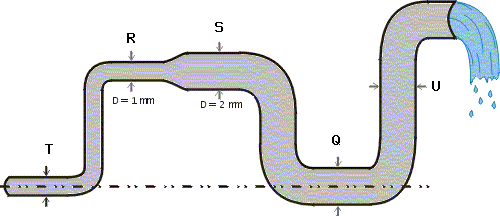

The figure illustrates flow through a pipe with diameters of 1.0 mm and 2.0 mm and with different elevations. Px is the pressure in the pipe, and Vx is the speed of a non-viscous incompressible fluid at locations x = Q,R,S,T, or U. Answers can be greater than, less than, or equal to
.
PQ is ... PT.
Greater than Less than Equal to PR is ...
PT
Greater than Less than Equal to VQ is ...
VU
Greater than Less than Equal to VS is ...
0.5VT
Greater than Less than Equal to PU is ...
PQ
Greater than Less than Equal to VT is ...
VR
Homework Answers
PQ is greater than PT.
PR is less than PT
VQ is equal to VU
VS is less than 0.5VT
PU is less than PQ
VT is equal to VR
the formulae used
are
Bernouli's theorm: P1+gh1+1/2(v21 ) = P2+gh2+1/2(v22)
Equation of continuity: a1v1 = a2v2
