Homework Answers
Add Answer to:

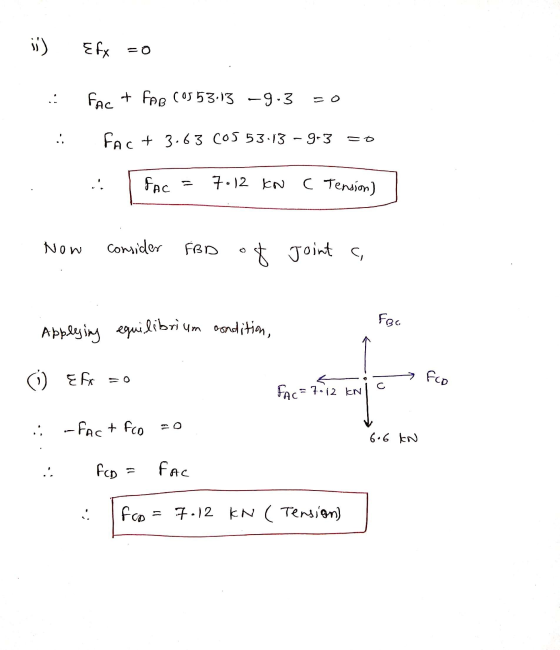

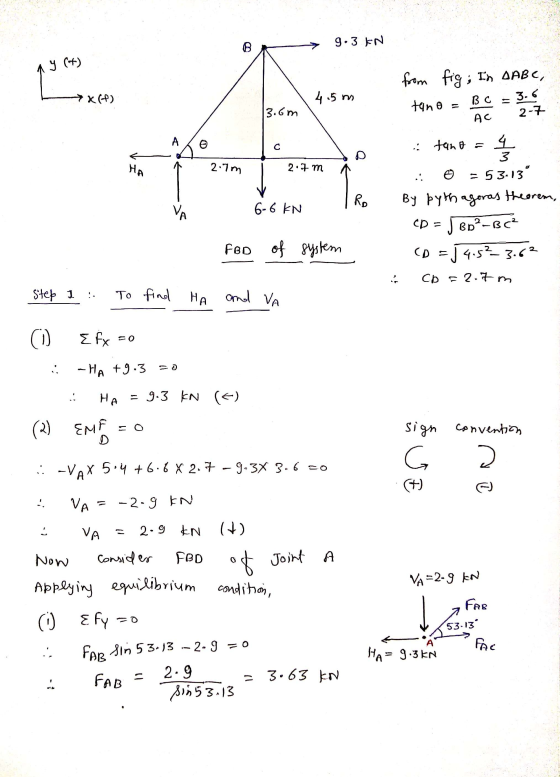

Find member AC& CD and determine either compression or
tension

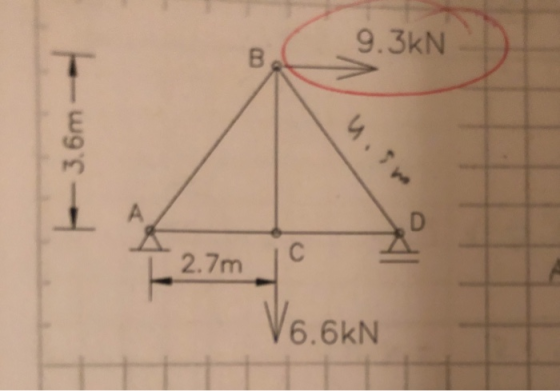

Bel 9.3kND 3.6m 2.7m V6.6kN
