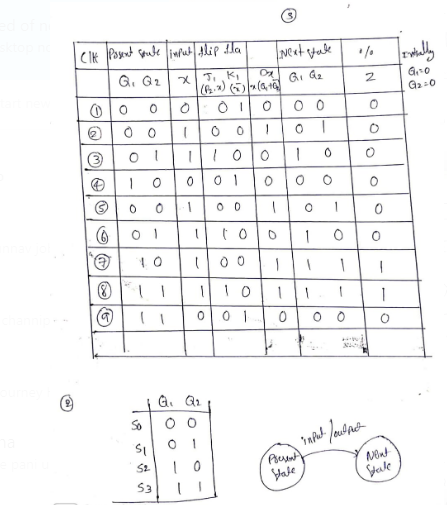

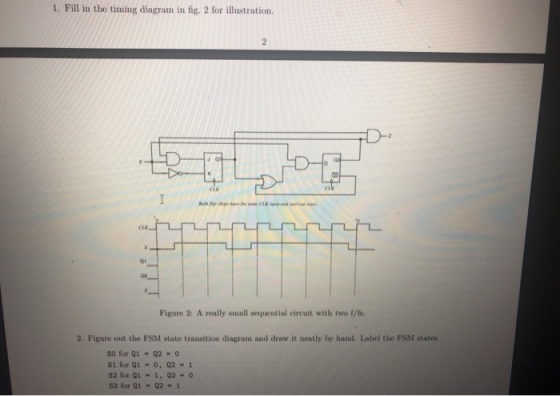

1. Fill in the timing diagram in fig. 2 for illustration, ST Figure 2: A really...
microprocessors,,pls help..
1. (3 Points) Draw a timing diagram similar to the 'practical' case of figure 5, below, for the case where signal Ao makes its transition first. Note: For each timing diagram that you draw, be sure that subsequent events appear to the right of causative events, and show causality arrows. 3.1 Glitch pulses Consider the one-bit adder circuit of figure 4. This circuit is called a one-bit (binary) adder because output signal So is the sum of input...
5) Decoders: Given the following circuit, S0 and S1 are computed using a 4-2 priority encoder with the priorities indicated on the figure. (hint: IDLE signal is always 0, if any of the inputs 10,11,12, or 13 is 1) 6 points) 4-to-2 Priority Encoder 10 YO YI 13 IDLE 13> 11 > 12>10 12 Full c Adder So Fill the following table showing the output signals S0 and SI given the input signals w, x, y, a) and z. Prof...
Problem 3. (25 pts) The timing diagram for three state cases represents the high impedance state with a line between the low (0) and high (0) states, as ill figure: ustrated in the following 0 Low (0) High Impedance (Z)1 High (1) a. (15 pts) Draw the timing diagrams for the outputs A,B,C,D of the following circuit given the input diagrams in the next page. (NOTE: to help you, dashed lines are shown for the different levels) b. (10 pts)...
1. Beginning with Uranium-235, fill in the decay-scheme diagram
in the figure below
2. In the table below, identify the new element and put it in
the diagram
A 235 4 231 227 223 219 215 211 207 203 80 81 82 83 84 85 86 87 88 89 90 91 92 Z Step Particle(s) Emitted B B a 1 2 3 4 5 6 7 8 9 10 11 12 13 Inverse 8 B a B

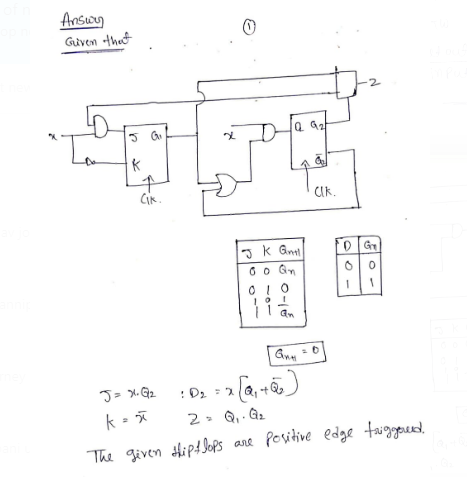

Design a synchronous sequential counter circuit that has the state diagram shown in figure 1. Use both D-type and T-type Flip Flops in your design. Show all your work in details. Extra credit will be given for implementation using other types of Flip Flops 3 4 Figure 1 Deliverables: 1. State Transition Table 2. K-Maps 3. Logical Expressions (Minimal Form) 4. Schematic Diagrams of the two designs 5. Verification steps for both designs.
a) Look at the reaction diagram for this reaction (Figure 9.2 in your textbook) and answer the following questions. 1) Is this diagram consistent with the rate law? Why or why not? 2) Experimental evidence shows that tertiary alkyl halides react the fastest and primary alkyl halides react the slowest with nucleophiles in this reaction. Explain why this is consistent with the reaction diagram in fig. 9.2. Stereochemistry of S 2 and S1 Reactions 1. The reaction shown is an...
* Question Completion Status: Question 2 35 points Save Answe Fill the state/excitation table for the sequential circuit specified by the state diagram of Figure 1 assuming that T-type flip-flops are used. (Write 0 or 1 in each cell) 00 10 01 11 Figure 1 Present State Input Next State Flip-Flop Inputs A(t) B(t) A(t+1) B(t+1) TA TB 0 0 0 0 0 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1
T1 D Q T2 T Q Clk Figure 1 Sequential Circuit. EXERCISE 2 Consider the circuit of Figure 1. 1) Is this a Moore or a mealy Machine? Explain briefly. 2) Complete the following transition table for the machine. Use symbols Q2, Qi, and Qo for the JK, T and D flipflops respectively. Next State O2'Q1 Qo Output (Z) Present State x=1 001 010 011 100 101 110 3) Starting at State So, give the shortest sequence taken by X...

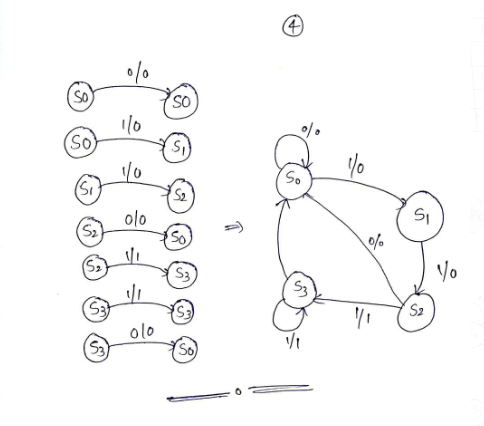

2. (8 marks] Design a sequential circuit specified by the state diagram in the figure below, using D flip-flops. A. (4 marks] Construct the state table. B. [3 marks] Write the necessary equations using k-map. C. [1 mark] Implement the circuit. 01/0 ooo 0011 s, lovo 1010 10/0 oo! 10/ S2 01/o
Given that option 2 is correct for question 1, answer the
proceeding questions..

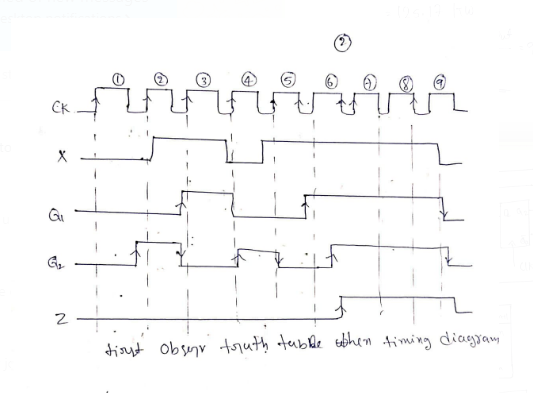

QUESTION 1 The following finite state machine is designed to produce an output which toggles continuously while its input a is high. A simple circuit implements this finite state machine using the controller model, but no additional hardware. a Off On F=0 F=1 Assuming that circuit starts off with F=0, as shown, fill out the timing diagram for its operation below. clk a F clk un a...
