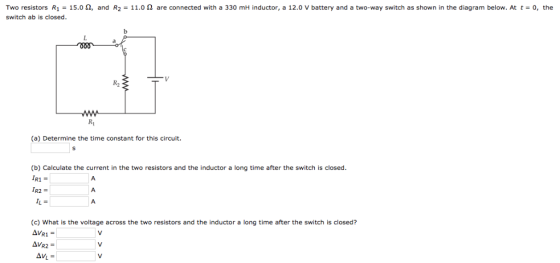

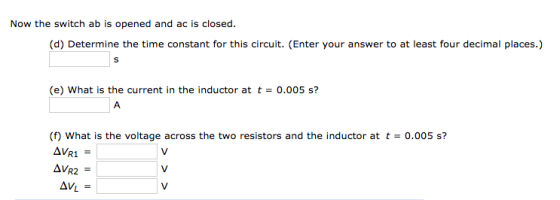

Two resistors R1-15.0 Ω, and R2-11.0 Ω are connected with a 330 mH inductor, a 12.0...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Ω, R3 = 100 Ω and R4 = 130 Ω.
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Ω, R3 = 100 Ω and R4 = 130 Ω. The inductance is L = 330 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign.1)The switch has been open for a long time when at time t = 0, the...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...
In a circuit, a parallel combination of a resistor R2 = 20.3 Ω and an inductor...
In a circuit, a parallel combination of a resistor
R2 = 20.3 Ω and an inductor of L =
3.70 mH is connected in series with a resistor of
R1 = 5.80 Ω, a 6.00-V dc battery, and a
switch.
What is the voltage across the 5.80-Ω resistor immediately after
the switch is closed?
What is the current in the 3.70-mH inductor after the switch has
been closed for a long time?
6.00 V I SR,
A 5.0-mH Inductor and a 11.0-ohm resistor are connected in series with a 1.5-V dc battery...
A 5.0-mH Inductor and a 11.0-ohm resistor are connected in series with a 1.5-V dc battery as shown.(a) What is the voltage across the resistor immediately after the switch is closed? V (b) What is the voltage across the resistor after the switch has been closed for a long time? V (c) What Is the current in the inductor after the switch has been closed for a long time? A
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
Two Loop RL Circuit1 A circuit is constructed with four resistors, one inductor, one battery and...
Two Loop RL Circuit1 A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 R2-412, R3 70 and R4 64 . The inductance is L-422 mH and the battery voltage is V 24 V. 1) The switch has been open for a long time when at time t 0, the switch is closed. What is 10), the magnitude of the current through the resistor R1 just after...
A circuit is constructed with two resistors and one inductor as shown in the Figure below....
A circuit is constructed with two resistors and one inductor as shown in the Figure below. The values for the resistors are: R1 = 2.50 and R2 = 4.5 0. The battery voltage is V = 12 V. The switch S is initially open. S R V R2 L 000 1) After the switch has been opened a long time, it is closed. What is the magnitude of the voltage across L immediately after the switch is closed? O 7.7...
answer all A circuit is constructed with four resistors, one inductor, one battery and a switch...
answer all
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-56 Ω, R3-45 Ω and R4-91. The inductance is L-245 mH and the battery voltage is V- 24V 1) The switch has been open for a long time when at timet 0, the switch is closed. What is I1(0), the magnitude of the current through the resistor R1 just after the switch is closed? 2) What...
A 12.0 V dc battery having no appreciable internal resistance, a 250 ohms resistor, a 15.0...
A 12.0 V dc battery having no appreciable internal resistance, a 250 ohms resistor, a 15.0 mH inductor, and an open switch are all connected in series. a. What is time constant in this circuit? b. What is the voltage on the resistor when the switch is just closed? c. What is the voltage on the inductor when the switch has been closed for a long time? d. What is maximum energy stored in the conductor? e. What is current...
I4(0) ... current through R4 just after switch is closed ... = 0.04196 A I4(∞) ......
I4(0)
... current through R4 just after switch is closed ... =
0.04196 A
I4(∞) ... current through
R4 after switch has been closed for a very long time ...
= 0.05539 A
IL(∞) ... current through inductor
after switch has been closed for a very long time ... =
0.03767 A
VL,max(closed) ... maximum voltage
across inductor during the time when switch is closed ... =
4.28 V
VL,max(open) ... maximum voltage
across inductor during the time when switch...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...
In a circuit, a parallel combination of a resistor
R2 = 20.3 Ω and an inductor of L =
3.70 mH is connected in series with a resistor of
R1 = 5.80 Ω, a 6.00-V dc battery, and a
switch.
What is the voltage across the 5.80-Ω resistor immediately after
the switch is closed?
What is the current in the 3.70-mH inductor after the switch has
been closed for a long time?
6.00 V I SR,
A 5.0-mH Inductor and a 11.0-ohm resistor are connected in series with a 1.5-V dc battery as shown.(a) What is the voltage across the resistor immediately after the switch is closed? V (b) What is the voltage across the resistor after the switch has been closed for a long time? V (c) What Is the current in the inductor after the switch has been closed for a long time? A
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
Two Loop RL Circuit1 A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 R2-412, R3 70 and R4 64 . The inductance is L-422 mH and the battery voltage is V 24 V. 1) The switch has been open for a long time when at time t 0, the switch is closed. What is 10), the magnitude of the current through the resistor R1 just after...
A circuit is constructed with two resistors and one inductor as shown in the Figure below. The values for the resistors are: R1 = 2.50 and R2 = 4.5 0. The battery voltage is V = 12 V. The switch S is initially open. S R V R2 L 000 1) After the switch has been opened a long time, it is closed. What is the magnitude of the voltage across L immediately after the switch is closed? O 7.7...
answer all
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-56 Ω, R3-45 Ω and R4-91. The inductance is L-245 mH and the battery voltage is V- 24V 1) The switch has been open for a long time when at timet 0, the switch is closed. What is I1(0), the magnitude of the current through the resistor R1 just after the switch is closed? 2) What...
I4(0)
... current through R4 just after switch is closed ... =
0.04196 A
I4(∞) ... current through
R4 after switch has been closed for a very long time ...
= 0.05539 A
IL(∞) ... current through inductor
after switch has been closed for a very long time ... =
0.03767 A
VL,max(closed) ... maximum voltage
across inductor during the time when switch is closed ... =
4.28 V
VL,max(open) ... maximum voltage
across inductor during the time when switch...
