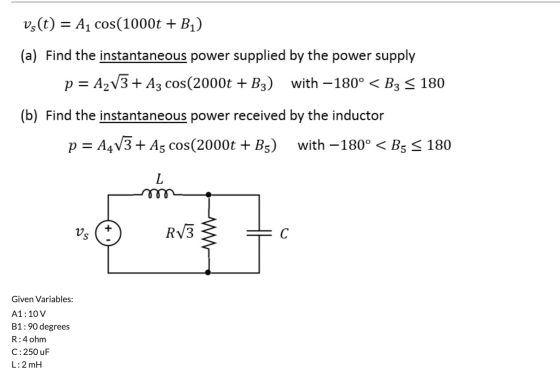

vs(t) = A1 cos(1000t + B1) (a) Find the instantaneous power supplied by the power supply p = A2V3+ Az cos(2000t + B3) with –1

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

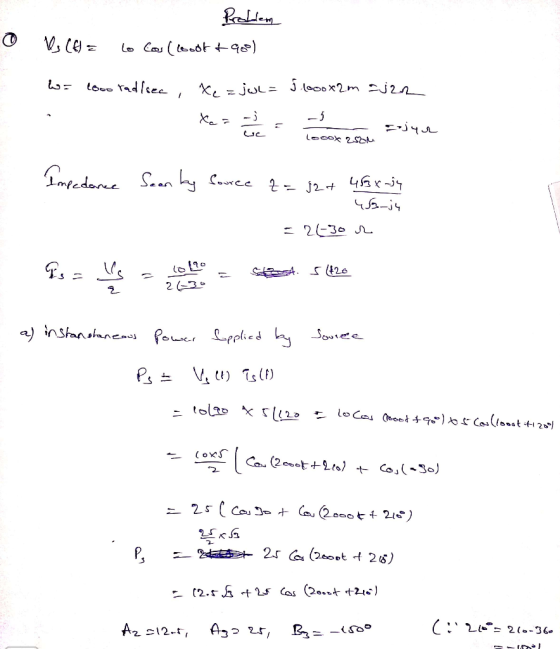

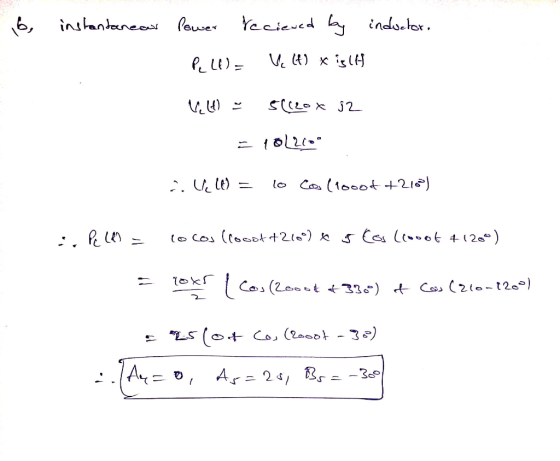

Plen V, (E) = lo Cas ( looot +908) looo radlsec, X, = jUL= J looox2m jn -j =rjyn ب loook 2SOM Impederce Sean ky fouree 455-i4Yecieved lby inductor. 6, instandaneou lower V. 4) x islH P LE) = S((20x j2 lo Cos (lo00t+210) lo cos (locot +210) 5(os (cooo

0 0
Add a comment
Know the answer?
Add Answer to:
vs(t) = A1 cos(1000t + B1) (a) Find the instantaneous power supplied by the power supply...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • vs(t) = A cos(1000t + B1) (a) Find the instantaneous power supplied by the power supply...

    vs(t) = A cos(1000t + B1) (a) Find the instantaneous power supplied by the power supply p = A2V3+ A3 cos(2000t + B3) with-180° < B3 S 180 (b) Find the instantaneous power received by the inductor p = A4V3 + A5 cos(2000t + B5) with-180° < B5 < 180 Vs RV3 Given Variables: A1:4V B1:30 degrees R:2 ohm C: 500 uF L:2 mH

  • LWW is(t) = A1 . cos(1000t +90) + A2 cos(2000t -90) Assume the system is in...

    LWW is(t) = A1 . cos(1000t +90) + A2 cos(2000t -90) Assume the system is in steady state. Find the current ia at times t1 47 ms: ia (t1) = B1 t2= 5m ms: ia (t2) = B2 kia(t) + R2 Given Variables: A1:9A A2:3A L:2 mH C:500 uF R1:10 ohm R2:2 ohm k:3 V/A Determine the following

  • You are given vs = A1:72.cos (100t + B1) Vc = A2 · cos (100t +...

    You are given vs = A1:72.cos (100t + B1) Vc = A2 · cos (100t + B2) Find vr = Az · cos (100t + B3) with – 180° 5 B3 S 180° + VR . Solve without using a calculator. Given Variables: A1:2V B1:25 degrees A2:2V B2:-20 degrees Determine the following: A3 (V): B3 (degrees):

  • Please explain how you added the phasors together. You are given vs = A1.v2.cos (100t +...

    Please explain how you added the phasors together. You are given vs = A1.v2.cos (100t + B1) Vc = A2 · cos (100t + B2) Find VR = Az · cos (100t + B3) with – 180° 5 B3 = 180° + VC Solve without using a calculator. Given Variables: A1:20 B1: 25 degrees A2:20 B2: -20 degrees Determine the following: A3 (V): B3 (degrees):

  • You are given Vs = A1.12.cos (100t +B) Vc = A2. Cos (100t + B2) Find...

    You are given Vs = A1.12.cos (100t +B) Vc = A2. Cos (100t + B2) Find VR = Az . cos (100t + B3) with - 180° SB3 S 180° + DR w Solve without using a calculator. Given Variables: A1: 8 V B1: 5 degrees A2:8 V B2: -40 degrees Determine the following: A3 (V): B3 (degrees):

  • You are told that the sources in the two circuits below supply the same average power....

    You are told that the sources in the two circuits below supply the same average power. (a) Find the average power supplied. (b) Find A1. A v2 cos(500t +B) WWW R Given Variables: V1:9 V R: 3 ohm B1: 30 degrees Determine the following: P (W): A1 (V):

  • please also find a4(W) and b4(VAR) (got cut off in the pic), thanks! (t) = A,...

    please also find a4(W) and b4(VAR) (got cut off in the pic), thanks! (t) = A, cos(500+B) Find the complex power S, = +by received by the source Find the complex power S, 4+by received by the resistor Re- Find the complex power S, = s + byl received by the resistors Find the complex power = 14 + he received by the inductor w R Given Variables: A1: 6V B1:45 degrees R1 : 4 ohm R2: 4 ohm L1...

  • Average Power 3. (30 pts) a) Find the average power absorbed by ZR ZR2, 2 and...

    Average Power 3. (30 pts) a) Find the average power absorbed by ZR ZR2, 2 and Ze components. b) Solve for Vs. c) Find the average power in the Is current source. Use Passive Sign Convention to show that the source is supplying power. d) Show that the power absorbed - power supplied (ie EP=0). ANUIUIJ JITU TUT 250 uF A 1 mH Time Domain v(t)= 4sin(1000t + 90°)V 393 vo(t) i(t) i (t)= 7cos(1000) A Bi(t)
