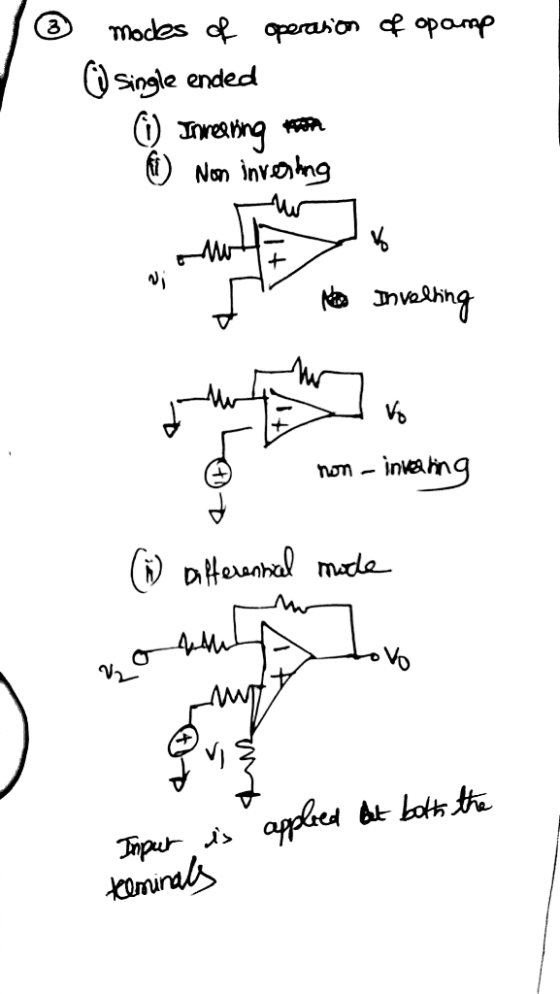

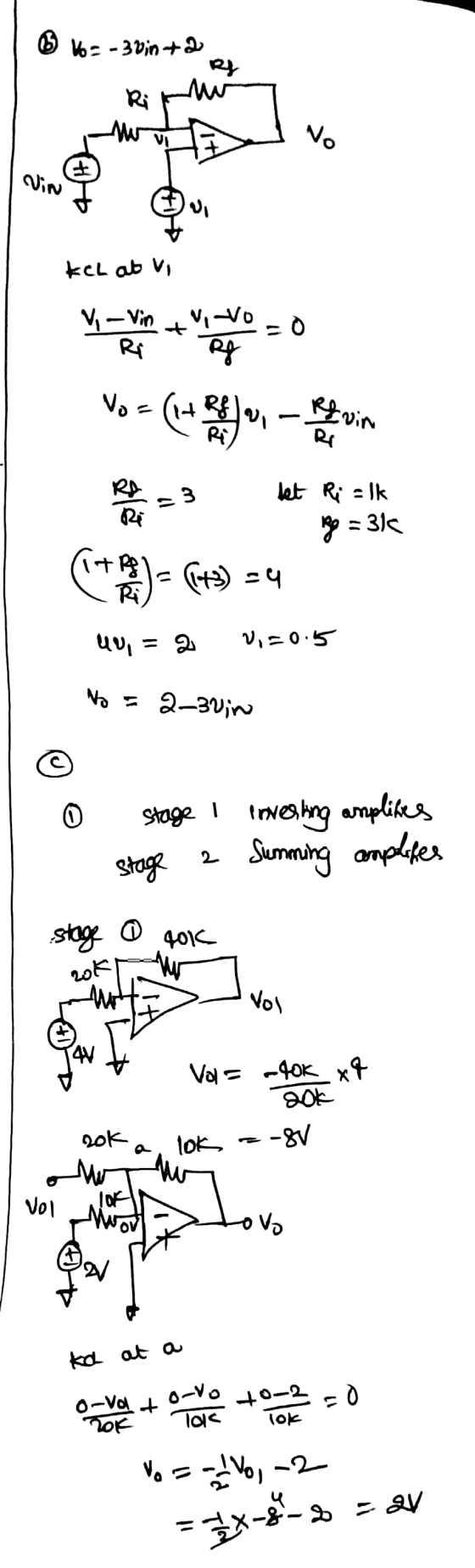

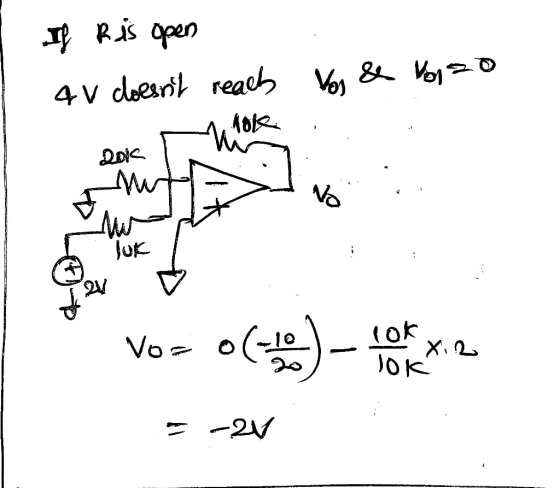

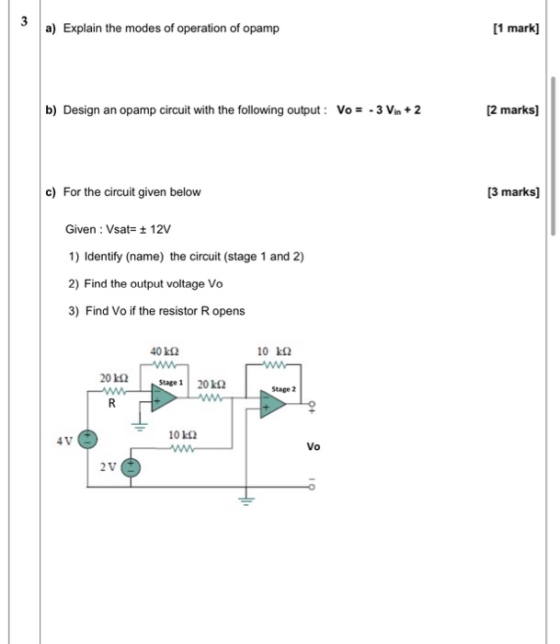

![3 a) Explain the modes of operation of opamp [1 mark] b) Design an opamp circuit with the following output: Vo = - 3 Vin + 2](http://img.homeworklib.com/questions/18192830-cbdd-11eb-81da-a7fb97d5165f.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
3 a) Explain the modes of operation of opamp [1 mark] b) Design an opamp circuit...
