A uniform line of charge of length V/2 lying between x = 0 and x =...

Question

Question

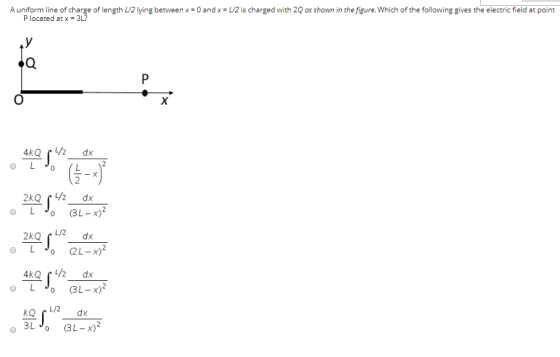

A uniform line of charge of length V/2 lying between x = 0 and x = 1/2 is charged with 2Q os shown in the figure. Which of th

science physics

Answer 1

Answer #1

$E = k \int_{0}^{L/2} \frac{\lambda}{(3L-x)^{2}}dx$

$Since \: \lambda = 2Q/L$

Therefore ,

$E = k \int_{0}^{L/2} \frac{2Q/L}{(3L-x)^{2}}dx$

or

$E =\frac{2kQ}{L} \int_{0}^{L/2} \frac{dx }{(3L-x)^{2}}$

Thus second option is correct.

Answer 2
