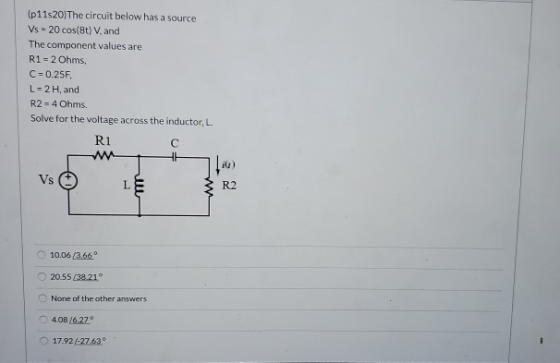

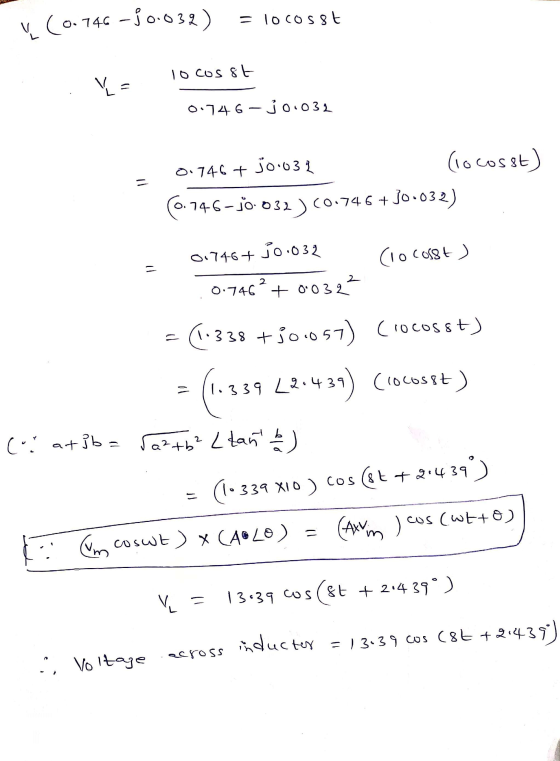

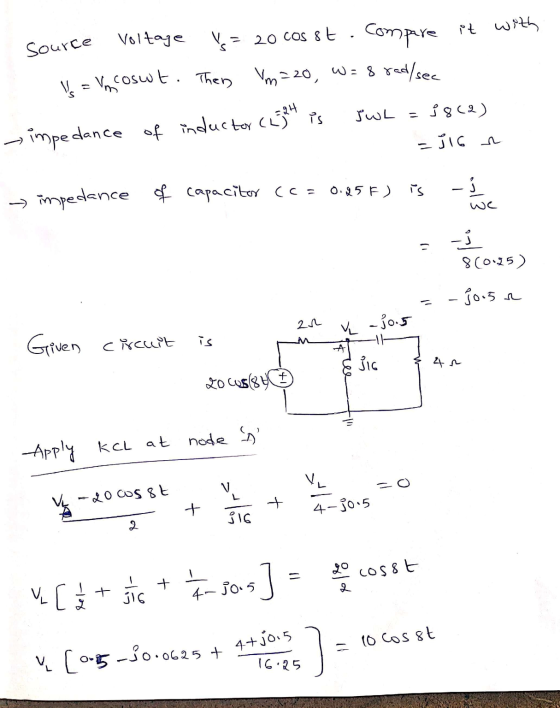

(p11s20) The circuit below has a source Vs - 20 cos(8t) V, and The component values...
1.29 The voltage source of the circuit shown in Fig. P1.29 is given by vs(t) =...
1.29 The voltage source of the circuit shown in Fig. P1.29 is given by vs(t) = 25 cos(4 x 104t - 45°) (V). Obtain an expression for il(t), the current flowing through the inductor IR vs() R23 R1 = 20 12, R2 = 30 12, L = 0.4 mH
For the circuit below, the AC voltage source has the form e = 20 V *...
For the circuit below, the AC voltage source has the form e = 20 V * Cos(500t + 0) (Where 20 V is the maximum Voltage) a) Find the total complex impedance of the circuit (Hint: it should have the form Z = a+bj, determine a and b) b) Now write the impedance in polar form (Hint: it should now have the form Z =Zeøj). c) Find the amplitude of the current through each component. R1 = 512 w R2...
In this circuit, the source voltage is VS = 25 V, and the resistances are: R1...
In this circuit, the source voltage is VS =
25 V, and the resistances are:
R1 = 10 kΩ, R2 = 18
kΩ,
R3 = 2 kΩ, R4 = 20 kΩ.
Using the mesh current method, find the mesh currents
Ia and Ib (polarities as
marked).
In this circuit, the source voltage is Vs = 25 V, and the resistances are: R1 = 10 k 2, R2 = 18 k22, R3 = 2 k.22, R4 = 20 k 2. Using...
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20, XL-30. Xc-20 a) Determine the load impedance Zab that will absorb maximum power if...
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20, XL-30. Xc-20 a) Determine the load impedance Zab that will absorb maximum power if it is connected to terminals a-b of the circuit below. b) Determine the maximum power absorbed by this load. Xc XL. M-0.8H R1 2-2 0.4H Vit)
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20,...
8–31 A voltage vs(t) = 50 cos (5000t) V is applied to the circuit in Figure...
8–31 A voltage vs(t) = 50 cos (5000t) V is applied to the circuit in Figure P8–31. (a) Convert the circuit into the phasor domain. (b) Find the phasor current flowing through the circuit and the phasor voltages across the inductor and the resistor. (c) Plot all three phasors from (b) on a phasor diagram. Describe if the current leads or lags the inductor voltage. i(t) 50 22 25 mH 00 + VL(t) - + Vr(t)- vs(t) (+) FIGURE P8-31
2) Circuitous Equivalence (20 points). Solve the circuit below to determine the relationship between Ri and...
2) Circuitous Equivalence (20 points). Solve the circuit below to determine the relationship between Ri and R2. The bottom node is grounded as shown, and the voltage at node A-+1 V relative to ground. Solve the circuit using two different methods, referring to Figure 2-37 in the textbook. by first making Vs and Ri into an equivalent current source and resistor and ther reducing and solving the circuit. by first making Is and R2 into an equivalent voltage source and...
3. Consider the AC circuit shown in the figure below, consisting of an alternating voltage source—of...
3. Consider the AC circuit shown in the figure below, consisting
of an alternating voltage source—of voltage V (t) = V0 cos (ωt)—a
capacitor (of capacitance C), an inductor (of inductance L), and
two resistors (of resistances R1 and R2). Also, note the
highlighted points a and b in the circuit. (a) While explaining
your reasoning, determine the necessary condition that must be
satisfied between the circuit elements such that the potential
difference between points a and b is zero...
PI : For circuit below v-20 V and R,-8 Ohm and R2-2 Ohm. Calculate voltage and...
PI : For circuit below v-20 V and R,-8 Ohm and R2-2 Ohm. Calculate voltage and power loss in each resistor in the circuit. (Use voltage division and P = (voltage*voltage) resistance)- You cannot use KVL, KCL or Ohms law) Ri R2 P2: For circuit below i = 50 A and R1 = 15 Ohm and R2 = 10 Ohm. Calculate current and power loss in each resistor in the circuit. (Use current division and P - (current*current) resistance) You...
Problem 1 (20 %) We want to analyse an electrical circuit described as a 2-port (Figure ). The circuit has source terminal with a constant ideal voltage source Vs and a loading terminal with a lo...
Problem 1 (20 %) We want to analyse an electrical circuit described as a 2-port (Figure ). The circuit has source terminal with a constant ideal voltage source Vs and a loading terminal with a loading resistor Ri. Circuit with passive components Figure 1. General electric circuit We want to represent the circuit as seen from the loading terminal as a Thevinin and a Norton equivalent. Sketch these crt equivalents and describe the steps how to determine their component values....
1.29 The voltage source of the circuit shown in Fig. P1.29 is given by vs(t) = 25 cos(4 x 104t - 45°) (V). Obtain an expression for il(t), the current flowing through the inductor IR vs() R23 R1 = 20 12, R2 = 30 12, L = 0.4 mH
For the circuit below, the AC voltage source has the form e = 20 V * Cos(500t + 0) (Where 20 V is the maximum Voltage) a) Find the total complex impedance of the circuit (Hint: it should have the form Z = a+bj, determine a and b) b) Now write the impedance in polar form (Hint: it should now have the form Z =Zeøj). c) Find the amplitude of the current through each component. R1 = 512 w R2...
In this circuit, the source voltage is VS =
25 V, and the resistances are:
R1 = 10 kΩ, R2 = 18
kΩ,
R3 = 2 kΩ, R4 = 20 kΩ.
Using the mesh current method, find the mesh currents
Ia and Ib (polarities as
marked).
In this circuit, the source voltage is Vs = 25 V, and the resistances are: R1 = 10 k 2, R2 = 18 k22, R3 = 2 k.22, R4 = 20 k 2. Using...
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20, XL-30. Xc-20 a) Determine the load impedance Zab that will absorb maximum power if it is connected to terminals a-b of the circuit below. b) Determine the maximum power absorbed by this load. Xc XL. M-0.8H R1 2-2 0.4H Vit)
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20,...
8–31 A voltage vs(t) = 50 cos (5000t) V is applied to the circuit in Figure P8–31. (a) Convert the circuit into the phasor domain. (b) Find the phasor current flowing through the circuit and the phasor voltages across the inductor and the resistor. (c) Plot all three phasors from (b) on a phasor diagram. Describe if the current leads or lags the inductor voltage. i(t) 50 22 25 mH 00 + VL(t) - + Vr(t)- vs(t) (+) FIGURE P8-31
2) Circuitous Equivalence (20 points). Solve the circuit below to determine the relationship between Ri and R2. The bottom node is grounded as shown, and the voltage at node A-+1 V relative to ground. Solve the circuit using two different methods, referring to Figure 2-37 in the textbook. by first making Vs and Ri into an equivalent current source and resistor and ther reducing and solving the circuit. by first making Is and R2 into an equivalent voltage source and...
3. Consider the AC circuit shown in the figure below, consisting
of an alternating voltage source—of voltage V (t) = V0 cos (ωt)—a
capacitor (of capacitance C), an inductor (of inductance L), and
two resistors (of resistances R1 and R2). Also, note the
highlighted points a and b in the circuit. (a) While explaining
your reasoning, determine the necessary condition that must be
satisfied between the circuit elements such that the potential
difference between points a and b is zero...
PI : For circuit below v-20 V and R,-8 Ohm and R2-2 Ohm. Calculate voltage and power loss in each resistor in the circuit. (Use voltage division and P = (voltage*voltage) resistance)- You cannot use KVL, KCL or Ohms law) Ri R2 P2: For circuit below i = 50 A and R1 = 15 Ohm and R2 = 10 Ohm. Calculate current and power loss in each resistor in the circuit. (Use current division and P - (current*current) resistance) You...
Problem 1 (20 %) We want to analyse an electrical circuit described as a 2-port (Figure ). The circuit has source terminal with a constant ideal voltage source Vs and a loading terminal with a loading resistor Ri. Circuit with passive components Figure 1. General electric circuit We want to represent the circuit as seen from the loading terminal as a Thevinin and a Norton equivalent. Sketch these crt equivalents and describe the steps how to determine their component values....
