Homework Answers

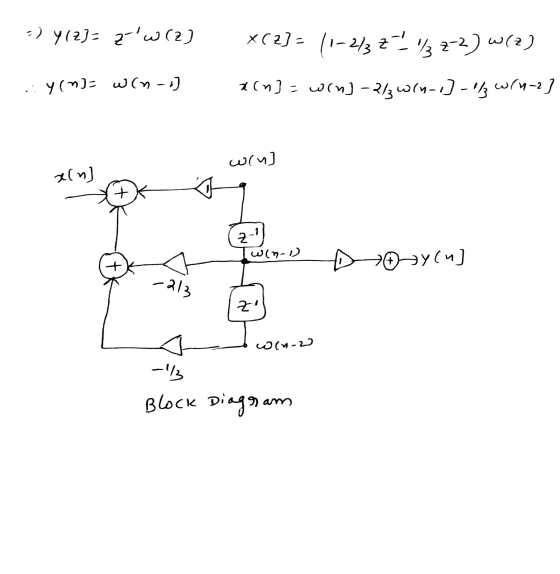

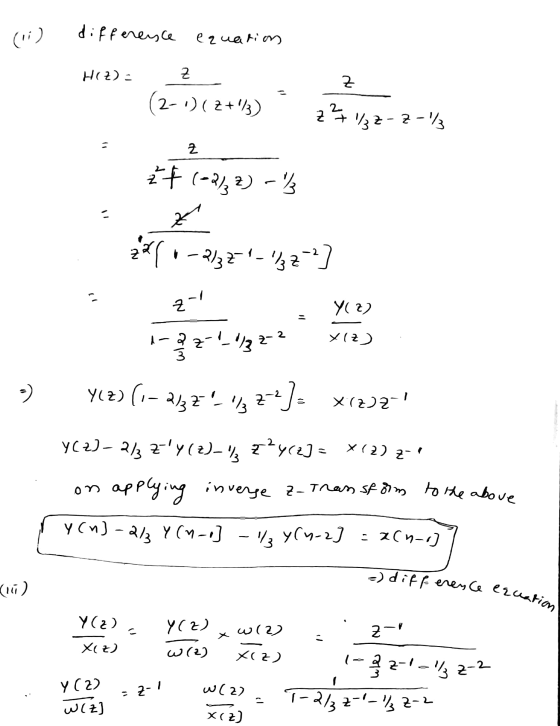

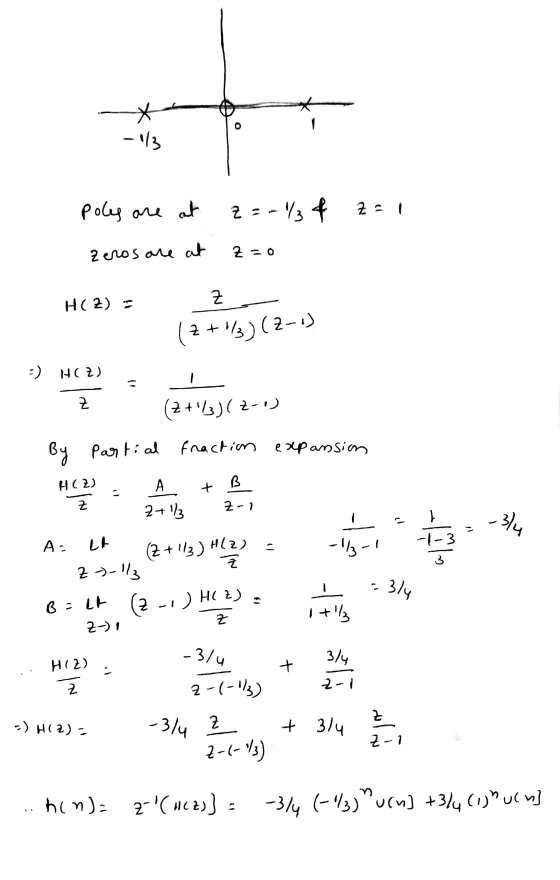

![-) y(23- 2 ( 2 ) х(2] = (1-2/3 г. 4 2-2) w(2) С? — «Qт =(a) 1 () (v) - ?/(-) - (ч-2 ] (м) (и) 2-1 (1-4)m —0Hy(4) - 213 21 C-](http://img.homeworklib.com/questions/8dbfdd20-ccbf-11eb-b5bb-e11fa88a9690.png?x-oss-process=image/resize,w_560)
Add Answer to:

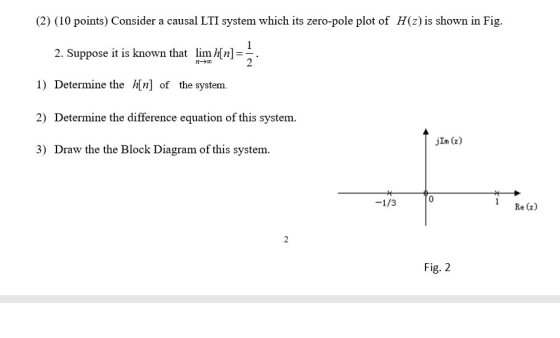

(2) (10 points) Consider a causal LTI system which its zero-pole plot of H(z) is shown...
4. 1 20 points). Consider a causal LTI system with a pole-zero plot for th the dfee equation H(2) as show below. The system is known to have a DC gain of 1. Find the difference equation for this...
4. 1 20 points). Consider a causal LTI system with a pole-zero plot for th the dfee equation H(2) as show below. The system is known to have a DC gain of 1. Find the difference equation for this system. Show all work. Z - plane 0.5 -0.5 0.5e
4. 1 20 points). Consider a causal LTI system with a pole-zero plot for th the dfee equation H(2) as show below. The system is known to have a DC gain...
3. Consider an LTI system with transfer function H(s). Pole-zero plot of H(s) is shown below....
3. Consider an LTI system with transfer function H(s). Pole-zero plot of H(s) is shown below. Im O--- Re (a) How many ROCs can be considered for this system? (b) Assume system is causal. Find ROC of H(S) (c) Assume y(t) is system output with step unit as input. Given lim yết) = 5 , Find H(s). (d) (optional) Find y(2) (y(t) for t = 2).
For a causal LTI discrete-time system described by the difference equation:
For a causal LTI discrete-time system described by the difference equation: y[n] + y[n – 1] = x[n] a) Find the transfer function H(z).b) Find poles and zeros and then mark them on the z-plane (pole-zero plot). Is this system BIBO? c) Find its impulse response h[n]. d) Draw the z-domain block diagram (using the unit delay block z-1) of the discrete-time system. e) Find the output y[n] for input x[n] = 10 u[n] if all initial conditions are 0.
5. Consider an LTI system with transfer function H(s). Pole-zero plot of H(s) is shown below....
5. Consider an LTI system with transfer function H(s). Pole-zero plot of H(s) is shown below. Im (a) How many ROCs can be considered for this system? (b) Assume system is causal. Find ROC of H(S) (c) Assume y(t) is system output with step unit as input. Given lim y(t) = 5 , 00 Find H(s).
an LTI causal system a) find pole and zero system and plot in the s field...
an LTI causal system
a) find pole and zero system and plot in the s
field
b) find ROC
c&d)
G) sstem LTI Kausal x (s) HUss (2) (s+s) c) Find tfor x (t) - Lt)
1. A causal LTI system is implemented by the difference equation y(n) = 2r(n) - 0.5...
1. A causal LTI system is implemented by the difference equation y(n) = 2r(n) - 0.5 y(n-1). (a) Find the frequency response H/(w) of the system. (b) Plot the pole-zero diagram of the system. Based on the pole zero diagram, roughly sketch the frequency response magnitude |H'(w). (c) Indicate on your sketch of H w , its exact values at w=0, 0.5, and . (d) Find the output signal y(n) produced by the input signal (n) = 3 + cos(0.5...
4. Block Diagrams (a) Consider a causal LTI system with transfer function H(s)2 Show the direct-form block diagram of Hi(s) (b) Consider a causal LTI system with transfer function 2s2 +4s -6 H(s)- Sh...
4. Block Diagrams (a) Consider a causal LTI system with transfer function H(s)2 Show the direct-form block diagram of Hi(s) (b) Consider a causal LTI system with transfer function 2s2 +4s -6 H(s)- Show the direct-form block diagram of Hi(s) c) Now observe that to draw a block diagram as a cascaded combination of two 1st order subsystems. d) Finally, use partial fraction expansion to express this system as a sum of individual poles and observe that you can draw...
Given a system with pole zero plot shown in Figure 4-37 and the fact that H(0)...
Given a system with pole zero plot shown in Figure 4-37 and the fact that H(0) = -5 Im{z} 2 1 -0.5 2 Re{z} 0 -1 -2 -2 -1 0 2 Figure 4-37 a) Find h[n] given that the system is causal b) Find h[n] given that the system is stable.
(2) Consider the causal discrete-time LTI system with an input r (n) and an output y(n)...
(2) Consider the causal discrete-time LTI system with an input r (n) and an output y(n) as shown in Figure 1, where K 6 (constant), system #1 is described by its impulse response: h(n) = -36(n) + 0.48(n- 1)+8.26(n-2), and system # 2 has the difference equation given by: y(n)+0.1y(n-1)+0.3y(n-2)- 2a(n). (a) Determine the corresponding difference equation of the system #1. Hence, write its fre- quency response. (b) Find the frequency response of system #2. 1 system #1 system #2...
Laplace Transform 5. Given a causal LTI system with pole-zero cancellation such as H(s)= S+1 what...
Laplace Transform
5. Given a causal LTI system with pole-zero cancellation such as H(s)= S+1 what is the region of convergence and why. (5+1)(3+2) i. ROC = undefined ii. ROC = Re(s) > 0 iii. ROC = Re(s) >-2 iv. ROC = Re(s) >-1
4. 1 20 points). Consider a causal LTI system with a pole-zero plot for th the dfee equation H(2) as show below. The system is known to have a DC gain of 1. Find the difference equation for this system. Show all work. Z - plane 0.5 -0.5 0.5e
4. 1 20 points). Consider a causal LTI system with a pole-zero plot for th the dfee equation H(2) as show below. The system is known to have a DC gain...
3. Consider an LTI system with transfer function H(s). Pole-zero plot of H(s) is shown below. Im O--- Re (a) How many ROCs can be considered for this system? (b) Assume system is causal. Find ROC of H(S) (c) Assume y(t) is system output with step unit as input. Given lim yết) = 5 , Find H(s). (d) (optional) Find y(2) (y(t) for t = 2).
5. Consider an LTI system with transfer function H(s). Pole-zero plot of H(s) is shown below. Im (a) How many ROCs can be considered for this system? (b) Assume system is causal. Find ROC of H(S) (c) Assume y(t) is system output with step unit as input. Given lim y(t) = 5 , 00 Find H(s).
an LTI causal system
a) find pole and zero system and plot in the s
field
b) find ROC
c&d)
G) sstem LTI Kausal x (s) HUss (2) (s+s) c) Find tfor x (t) - Lt)
1. A causal LTI system is implemented by the difference equation y(n) = 2r(n) - 0.5 y(n-1). (a) Find the frequency response H/(w) of the system. (b) Plot the pole-zero diagram of the system. Based on the pole zero diagram, roughly sketch the frequency response magnitude |H'(w). (c) Indicate on your sketch of H w , its exact values at w=0, 0.5, and . (d) Find the output signal y(n) produced by the input signal (n) = 3 + cos(0.5...
4. Block Diagrams (a) Consider a causal LTI system with transfer function H(s)2 Show the direct-form block diagram of Hi(s) (b) Consider a causal LTI system with transfer function 2s2 +4s -6 H(s)- Show the direct-form block diagram of Hi(s) c) Now observe that to draw a block diagram as a cascaded combination of two 1st order subsystems. d) Finally, use partial fraction expansion to express this system as a sum of individual poles and observe that you can draw...
Given a system with pole zero plot shown in Figure 4-37 and the fact that H(0) = -5 Im{z} 2 1 -0.5 2 Re{z} 0 -1 -2 -2 -1 0 2 Figure 4-37 a) Find h[n] given that the system is causal b) Find h[n] given that the system is stable.
(2) Consider the causal discrete-time LTI system with an input r (n) and an output y(n) as shown in Figure 1, where K 6 (constant), system #1 is described by its impulse response: h(n) = -36(n) + 0.48(n- 1)+8.26(n-2), and system # 2 has the difference equation given by: y(n)+0.1y(n-1)+0.3y(n-2)- 2a(n). (a) Determine the corresponding difference equation of the system #1. Hence, write its fre- quency response. (b) Find the frequency response of system #2. 1 system #1 system #2...
Laplace Transform
5. Given a causal LTI system with pole-zero cancellation such as H(s)= S+1 what is the region of convergence and why. (5+1)(3+2) i. ROC = undefined ii. ROC = Re(s) > 0 iii. ROC = Re(s) >-2 iv. ROC = Re(s) >-1
