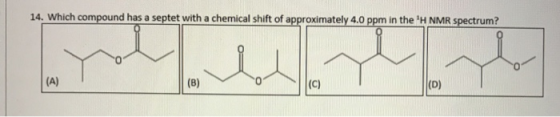

14. Which compound has a septet with a chemical shift of approximately 4.0 ppm in the...
3. Which compound has a 'H NMR spectrum consistent with the following? Chemical shift, ppm Splitting Number of H at...
3. Which compound has a 'H NMR spectrum consistent with the following? Chemical shift, ppm Splitting Number of H atoms 2.0 quintet (five) 2.8 singlet (one) 3.7 triplet (three) 3.8 triplet (three) A) CICH,CH2CH2OH C) HOCH2CH2CH2OH B) CH3CH2CH2OH D) H2C=CHCH2CH2C1
Draw a H NMR spectrum for each compound. Pay attention to the chemical shift (ppm) multiplicity,...
Draw a H NMR spectrum for each compound. Pay attention to the chemical shift (ppm) multiplicity, and integration of each peak. The boxes indicate where the peaks should go (which ppm range) as well as the relative height of each peak OH PPM O 3 PPM -2. H 10 8 PPM
Provide the HNMR: a) number of signals b) the chemical shift (ppm) for each signal c)...
Provide the HNMR:
a) number of signals
b) the chemical shift (ppm) for each signal
c) the integration (# of H's) for each
d) the splitting (peaks) for each
11) Chemical Formula: C10H1202 IR: strong peak 1720cm-1 6H | 2H 2H septet 1H PPM 12)...
11) Chemical Formula: C10H1202 IR: strong peak 1720cm-1 6H | 2H 2H septet 1H PPM 12) Chemical Formula: C9H200 IR: strong broad 3300cm-1 18H 1Η IH PPM
Which compound corresponds to the following H NMR data? 7.5 ppm, multiplet, 5H 4.8 ppm, singlet,...
Which compound corresponds to the following H NMR data? 7.5 ppm, multiplet, 5H 4.8 ppm, singlet, 2H 3.2 ppm, septet, 1H 1.2 ppm, doublet, 6H Select one: O a. *or
Which molecule would have a 1H NMR signal that matches the following description? 4.7 ppm, 1H,...
Which molecule would have a 1H NMR signal that
matches the following description?
4.7 ppm, 1H, septet
Which molecule would have a HNMR signal that matches the following description? 4.7 ppm, 1H, septet Select one a. O b. O d
What chemical shift (in ppm, in a 1H NMR spectrum) might you expect for the H...
What chemical shift (in ppm, in a 1H NMR spectrum) might you expect for the H atom, shown in red, in the molecule below? O 0.8 O 1.4 O 2.5 O 3.2 O 5.6 Submit Answer Tries 0/1 What chemical shift (in ppm, in a 1H NMR spectrum) might you cxpcct for the H atom, shown in red, in the molecule below? 생 O 0.8 O 5.8 O 7.5 O 9.1 Submit Answer Tries 0/1 What chemical shift (in ppm,...
. If the chemical shift (8) for a proton is 3.5 ppm, using a 300 MHz...
. If the chemical shift (8) for a proton is 3.5 ppm, using a 300 MHz NMR spectrometer, what would the chemical shift for the same proton be using a 500 MHz NMR spectrometer? a. 2.1 ppm b. 3.5 ppm c. 5.8 ppm d. Cannot be determined from the information given.
The chemical shift of Ha in the molecule below was recorded at 3.85 ppm downfield from...
The chemical shift of Ha in the molecule below was recorded at
3.85 ppm downfield from TMS on a 500 MHz spectrometer. What is this
chemical shift, in Hz, on a 250 MHz NMR? Other hydrogen’s are
omitted for clarity. ppm = (chemical shift in Hz)/(spectrometer
frequency in MHz)
Question 37 Which one of the following best represents the predicted approximate chemical shift and splitting...
Question 37 Which one of the following best represents the predicted approximate chemical shift and splitting for the hydrogen(s) indicated with the arrow in the compound nicotine 500 om inget 5.00 pom doutlet Question 38 Which one of the following best represents the predicted approximate chemical shift and splitting for the hydrogen(s) indicated with the arrow? Co-CH₃ - 1.10 ppm, singlet 2.10 ppm, doublet 3.40 ppm, singlet 45 ppm, singlet 3.5 ppm, quartet
3. Which compound has a 'H NMR spectrum consistent with the following? Chemical shift, ppm Splitting Number of H atoms 2.0 quintet (five) 2.8 singlet (one) 3.7 triplet (three) 3.8 triplet (three) A) CICH,CH2CH2OH C) HOCH2CH2CH2OH B) CH3CH2CH2OH D) H2C=CHCH2CH2C1
Draw a H NMR spectrum for each compound. Pay attention to the chemical shift (ppm) multiplicity, and integration of each peak. The boxes indicate where the peaks should go (which ppm range) as well as the relative height of each peak OH PPM O 3 PPM -2. H 10 8 PPM
Provide the HNMR:
a) number of signals
b) the chemical shift (ppm) for each signal
c) the integration (# of H's) for each
d) the splitting (peaks) for each
11) Chemical Formula: C10H1202 IR: strong peak 1720cm-1 6H | 2H 2H septet 1H PPM 12) Chemical Formula: C9H200 IR: strong broad 3300cm-1 18H 1Η IH PPM
Which compound corresponds to the following H NMR data? 7.5 ppm, multiplet, 5H 4.8 ppm, singlet, 2H 3.2 ppm, septet, 1H 1.2 ppm, doublet, 6H Select one: O a. *or
Which molecule would have a 1H NMR signal that
matches the following description?
4.7 ppm, 1H, septet
Which molecule would have a HNMR signal that matches the following description? 4.7 ppm, 1H, septet Select one a. O b. O d
What chemical shift (in ppm, in a 1H NMR spectrum) might you expect for the H atom, shown in red, in the molecule below? O 0.8 O 1.4 O 2.5 O 3.2 O 5.6 Submit Answer Tries 0/1 What chemical shift (in ppm, in a 1H NMR spectrum) might you cxpcct for the H atom, shown in red, in the molecule below? 생 O 0.8 O 5.8 O 7.5 O 9.1 Submit Answer Tries 0/1 What chemical shift (in ppm,...
. If the chemical shift (8) for a proton is 3.5 ppm, using a 300 MHz NMR spectrometer, what would the chemical shift for the same proton be using a 500 MHz NMR spectrometer? a. 2.1 ppm b. 3.5 ppm c. 5.8 ppm d. Cannot be determined from the information given.
The chemical shift of Ha in the molecule below was recorded at
3.85 ppm downfield from TMS on a 500 MHz spectrometer. What is this
chemical shift, in Hz, on a 250 MHz NMR? Other hydrogen’s are
omitted for clarity. ppm = (chemical shift in Hz)/(spectrometer
frequency in MHz)
Question 37 Which one of the following best represents the predicted approximate chemical shift and splitting for the hydrogen(s) indicated with the arrow in the compound nicotine 500 om inget 5.00 pom doutlet Question 38 Which one of the following best represents the predicted approximate chemical shift and splitting for the hydrogen(s) indicated with the arrow? Co-CH₃ - 1.10 ppm, singlet 2.10 ppm, doublet 3.40 ppm, singlet 45 ppm, singlet 3.5 ppm, quartet
