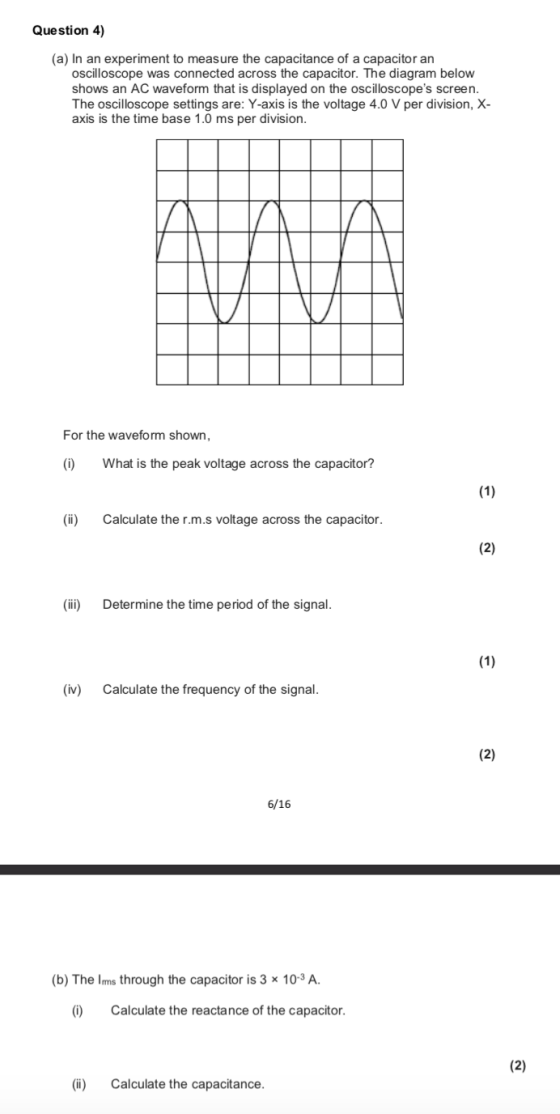

Question 4) (a) In an experiment to measure the capacitance of a capacitor an oscilloscope was...

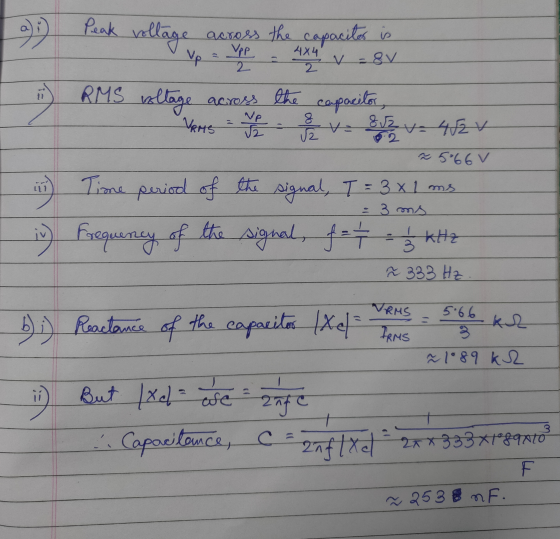

The waveform shown is displayed on an oscilloscope with a timcbase setting of 0.1 ms per...
The waveform shown is displayed on an oscilloscope with a timcbase setting of 0.1 ms per division (and 10 divisions on the screen) and starting on the extreme left of the screen. What is the voltage at the extreme right hand side of the screen? 1.5 05 0.5 Time ims) Answer
Analog Oscilloscope Setup: 1. Turn on the power to the oscilloscope. 2. Connect the function gene...
Analog Oscilloscope Setup: 1. Turn on the power to the oscilloscope. 2. Connect the function generator to the Channel 1 input on the oscilloscope 3. In the Vertical Control Group, set the Channel 1 AC/GND/DC switch to AC. 4. Set the Volts-per-Division knob 5. Intensity knob: adjust the signal intensity and focus to a comfortable level by using the intensity and focus knobs, respectively Set the seconds-per-division knob 6. Assignment Procedures: 1. Using the settings completed above, answer the following...
Draw the correct waveforms in the aranhs below for questions 10: 8. With the oscilloscope AC...
Draw the correct waveforms in the aranhs below for questions 10: 8. With the oscilloscope AC coupled, draw the signal display you would expect to see on the screen of the oscilloscope on the graph provided below. SWITCH SETTINGS TIME/DIV 50 us VOLTS/DIV → 2 V SIGNAL PARAMETERS TH 12 Vdc 9. With the oscilloscope DC coupled, draw the signal display you would expect to see on the screen of the oscilloscope on the graph provided below. SWITCH SETTINGS TIME/DIV...
i need a help is the relationship between capacitive r and capacitance? ea Part C: Dependence of Capacitive Reactance on the Frequemcy 1. Set up the experiment with the capacitance C-1 2. Adjust...
i need a help
is the relationship between capacitive r and capacitance? ea Part C: Dependence of Capacitive Reactance on the Frequemcy 1. Set up the experiment with the capacitance C-1 2. Adjust various frequencies f at the function generator 3. In each case determine the voltage drops 'at the capacitor Vc (peak to peak) using procisely by reading the period on the oscilloscope. 3Table 2: R-2.2 k-Q C-1-laF 2.5 62Gs 1-25 100 100 57.1s :1 a sheet of graph...
If the volts/division is set at 0.5, the largest signal that can fit on an oscilloscope...
If the volts/division is set at 0.5, the largest signal that can fit on an oscilloscope display screen (assuming an 8 horizontal x 10 vertical division screen) is: a. 62.5 millivolts peak-to-peak. b. 8 volts peak-to-peak. c. 5 volts peak-to-peak. d. 0.5 volts peak-to-peak. If the seconds/division is set at 0.1 ms, the amount of time represented by the width of the screen (assuming an 8 horizontal x 10 vertical division screen) is: a. 0.1 ms b. 0.8 ms c....
Oscilloscope with RC circuits: Explain with an example how you measure the frequency of a signal...
Oscilloscope with RC circuits: Explain with an example how you measure the frequency of a signal from oscilloscope by using (a) x-axis scale and (b) using y-axis scale? (c) what is the difference between V(peak voltage) and Vrms (root-mean-square) of AC voltage source?
1. In this class and in other physics lab classes you will often use oscilloscopes to...
1. In this class and in other physics lab classes you will often use oscilloscopes to look at signal that change in time. Below is a sinusoidal AC signal on an oscilloscope screen. The vertical axis is set to 10 mV/division and the horizontal axis is set to 50 ms/division For the signal shown, what is the: a. Average voltage? b. Peak voltage? c. Peak-to-peak voltage? d. RMS voltage? e. Period? f. Frequency? g. If you were to write an...
Objectives: To learn transient behavior of series RC circuits To observe of time constant and its...
Objectives: To learn transient behavior of series RC circuits To observe of time constant and its effect on charging process of capacitor using pulse waveforms Equipment: Oscilloscope Function generator Resistors (1 k) Capacitors (1 uF) Breadboard Pre-Lab Questions A pulse is a voltage or current that changes from one level to the other and back again. If a waveform's high time equals its low time, it is called a square wave. The length of each cycle (one positive peak and...
1. What is the vacRMS Voltage for the signal shown below? 10 V 2 V 2....
1. What is the vacRMS Voltage for the signal shown below? 10 V 2 V 2. An AC voltage of 12vacaMs is equal to what peak to peak voltage? 3. In a purely resistive AC circuit where 10vacpK-PK is applied across an 8-ohm resistor, the current is 4. The total capacitance of a 330HF capacitor connected in parallel with a 470 uF capacitor is If an ac signal has a frequency of 125kHz, how much time does it take for...
I need help with question #2 TWU Physics Laboratory I Oscilloscope it is If an alternating...
I
need help with question #2
TWU Physics Laboratory I Oscilloscope it is If an alternating signal is applied to the vertical plates of the oscilloscoe utar This particular possible that a pattern such as that shown in Figure 2 might be obtai wave shape is called a sine wave. The oscilloscops.san voltage by measuring the height of the signal display determined indirectly by determining the width of one cycle and the horizontal s time per unit length. k A...
The waveform shown is displayed on an oscilloscope with a timcbase setting of 0.1 ms per division (and 10 divisions on the screen) and starting on the extreme left of the screen. What is the voltage at the extreme right hand side of the screen? 1.5 05 0.5 Time ims) Answer
Analog Oscilloscope Setup: 1. Turn on the power to the oscilloscope. 2. Connect the function generator to the Channel 1 input on the oscilloscope 3. In the Vertical Control Group, set the Channel 1 AC/GND/DC switch to AC. 4. Set the Volts-per-Division knob 5. Intensity knob: adjust the signal intensity and focus to a comfortable level by using the intensity and focus knobs, respectively Set the seconds-per-division knob 6. Assignment Procedures: 1. Using the settings completed above, answer the following...
Draw the correct waveforms in the aranhs below for questions 10: 8. With the oscilloscope AC coupled, draw the signal display you would expect to see on the screen of the oscilloscope on the graph provided below. SWITCH SETTINGS TIME/DIV 50 us VOLTS/DIV → 2 V SIGNAL PARAMETERS TH 12 Vdc 9. With the oscilloscope DC coupled, draw the signal display you would expect to see on the screen of the oscilloscope on the graph provided below. SWITCH SETTINGS TIME/DIV...
i need a help
is the relationship between capacitive r and capacitance? ea Part C: Dependence of Capacitive Reactance on the Frequemcy 1. Set up the experiment with the capacitance C-1 2. Adjust various frequencies f at the function generator 3. In each case determine the voltage drops 'at the capacitor Vc (peak to peak) using procisely by reading the period on the oscilloscope. 3Table 2: R-2.2 k-Q C-1-laF 2.5 62Gs 1-25 100 100 57.1s :1 a sheet of graph...
1. In this class and in other physics lab classes you will often use oscilloscopes to look at signal that change in time. Below is a sinusoidal AC signal on an oscilloscope screen. The vertical axis is set to 10 mV/division and the horizontal axis is set to 50 ms/division For the signal shown, what is the: a. Average voltage? b. Peak voltage? c. Peak-to-peak voltage? d. RMS voltage? e. Period? f. Frequency? g. If you were to write an...
Objectives: To learn transient behavior of series RC circuits To observe of time constant and its effect on charging process of capacitor using pulse waveforms Equipment: Oscilloscope Function generator Resistors (1 k) Capacitors (1 uF) Breadboard Pre-Lab Questions A pulse is a voltage or current that changes from one level to the other and back again. If a waveform's high time equals its low time, it is called a square wave. The length of each cycle (one positive peak and...
1. What is the vacRMS Voltage for the signal shown below? 10 V 2 V 2. An AC voltage of 12vacaMs is equal to what peak to peak voltage? 3. In a purely resistive AC circuit where 10vacpK-PK is applied across an 8-ohm resistor, the current is 4. The total capacitance of a 330HF capacitor connected in parallel with a 470 uF capacitor is If an ac signal has a frequency of 125kHz, how much time does it take for...
I
need help with question #2
TWU Physics Laboratory I Oscilloscope it is If an alternating signal is applied to the vertical plates of the oscilloscoe utar This particular possible that a pattern such as that shown in Figure 2 might be obtai wave shape is called a sine wave. The oscilloscops.san voltage by measuring the height of the signal display determined indirectly by determining the width of one cycle and the horizontal s time per unit length. k A...
