Homework Answers
Add Answer to:

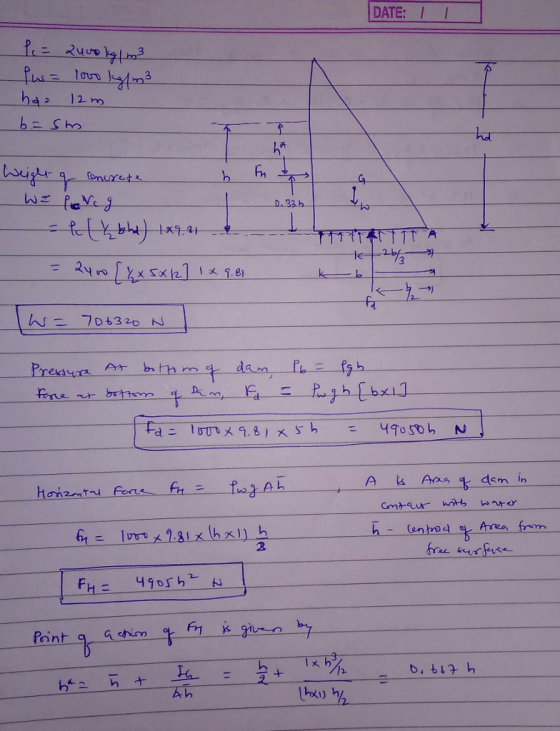

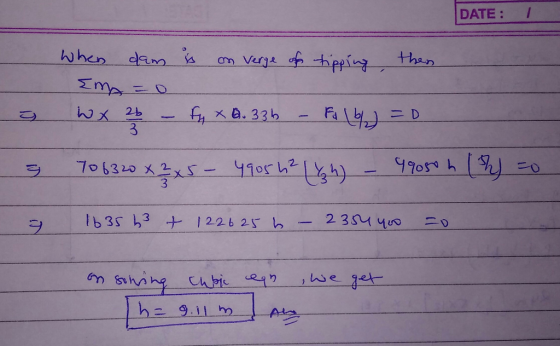

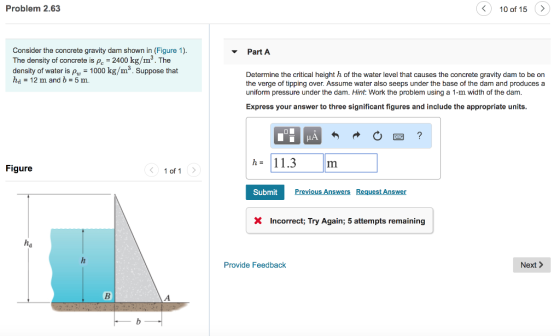

Problem 2.63 〈 10 of 15 Consider the concrete gravity dam shown in (Figure 1). The...
1. A gravity dam is shown in Figure 1. Assume the coefficient of friction between the...
1. A gravity dam is shown in Figure 1. Assume the coefficient of friction between the dam base and the foundation is 0.75, the specific gravity of concrete is 2.5, and uplift forces exist on the base of the dam. Neglect earthquake and silt (sedimentation) forces and take the unit weight of water as 9.81 kN/m². The freeboard is 3.0 m. Calculate the safety factor against the sliding and overturning. Check whether the dam is safe against sliding and overturning...
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK A concrete dam of mass density 2400 kg/m3 with dimensions a 10 m b = 7...
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK A concrete dam of mass density 2400 kg/m3 with dimensions a 10 m b = 7 m and c water is 1,000 kg/m3 and the dam is very long out of plane, determine: 7 m is subject to a hydrostatic fluid pressure on its right hand face. If the density of The horizontal and vertical support reactions exerted by the ground on the base AB of the dam. Assuming that the dam rotates...
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK A concrete dam of mass density 2400 kg/m3 with...
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK A concrete dam of mass density 2400 kg/m3 with dimensions a 10 m b = 7 m and c water is 1,000 kg/m3 and the dam is very long out of plane, determine: 7 m is subject to a hydrostatic fluid pressure on its right hand face. If the density of The horizontal and vertical support reactions exerted by the ground on the base AB of the dam. Assuming that the dam rotates...
Q.5) Water backs up behind a concrete dam as shown in Figure below. Leakage under the...
Q.5) Water backs up behind a concrete dam as shown in Figure below. Leakage under the foundation gives a linear pressure distribution under the base of the concrete dam as shown in Figure. If the water depth H, is too great, the dam will topple over about its toe (Point A). For the dimensions given, determine the maximum water depth. Base your analysis on a unit length of the dam. The specific weight of the concrete is 23.7 kN/m”. (Answer...
KHomework Set 9 Pressure on a Dam As the reservoir behind a dam is filled with water, the pressur...
KHomework Set 9 Pressure on a Dam As the reservoir behind a dam is filled with water, the pressure that the water exerts on the dam increases Eventually, the force on the dam becomes substantial and it could cause the dam to collapse. There are two significant issues to be considered: First, the base of the dam should be able to withstand the pressure pgh , where p is the density of the water behind the danm h is its...
The cross section of a concrete dam is shown in the figure below. For a 0.3...
The cross section of a concrete dam is shown in the figure
below. For a 0.3 m wide dam section, determine the result of the
pressure forces exerted by the water on the BC face of the dam. Use
ρ = 10³ kg / m³ for the specific water mass.
= 6,3 m r = 6.3 m Dado: X 4R/3
Question Design the cross section of a gravity dam as shown in the figure below. Assume...
Question Design the cross section of a gravity dam as shown in the figure below. Assume the specific unit weight of the concrete is 24 kN/m² and the friction factor between the dam and the underlying layer is 0.65. Consider only water loads and weight of the dam. Find the normal stress and check against sliding and overturning, assuming full uplift. (8 mark) 10 m 8 44 m 1:10 3:10
Problem (2) (12) For the concrete dam and soil profile shown in the Figure below, the...
Problem (2) (12) For the concrete dam and soil profile shown in the Figure below, the flow net is cons channel and 8 isted of 3 fNow rops, calculate: a) The rate of seepage under the dam in ft /sec/ft. b) Pore water pressure at points A, C, and D in Ib/ft. c) The uplift force in lb/ft at the base of the dam due to water pressure C use points C and D). 20
Problem 2 A concrete dam has a curved surface and restrain water (p=1000kg/m3) at a depth...
Problem 2 A concrete dam has a curved surface and restrain water (p=1000kg/m3) at a depth H=2 m. The trace of the surface is a parabola described by the equation: z= 0.2x2 . dam 1- Determine the gage pressure distribution in the water 2- Determine the magnitude of the pressure force F acting on the curved dam surface per unit width (dimension normal to the page) of the gate. [Solution: F=45,780 N] 3-Determine the angle of that force relative to...
Chapter 15 Pressure on a Dam Due 4 of 16 ( As the reservoir behind a...
Chapter 15 Pressure on a Dam Due 4 of 16 ( As the reservoir behind a dam is filled with water pressure that the water exerts on the dam increases Eventually, the force on the dam becomes substantial, and it could cause the dam to collapse. There are two significant issues to be considered: First, the base of the dam should be able to withstand the pressure Agh, where ? is the density of the water behind the Consider a...
1. A gravity dam is shown in Figure 1. Assume the coefficient of friction between the dam base and the foundation is 0.75, the specific gravity of concrete is 2.5, and uplift forces exist on the base of the dam. Neglect earthquake and silt (sedimentation) forces and take the unit weight of water as 9.81 kN/m². The freeboard is 3.0 m. Calculate the safety factor against the sliding and overturning. Check whether the dam is safe against sliding and overturning...
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK A concrete dam of mass density 2400 kg/m3 with dimensions a 10 m b = 7 m and c water is 1,000 kg/m3 and the dam is very long out of plane, determine: 7 m is subject to a hydrostatic fluid pressure on its right hand face. If the density of The horizontal and vertical support reactions exerted by the ground on the base AB of the dam. Assuming that the dam rotates...
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK A concrete dam of mass density 2400 kg/m3 with dimensions a 10 m b = 7 m and c water is 1,000 kg/m3 and the dam is very long out of plane, determine: 7 m is subject to a hydrostatic fluid pressure on its right hand face. If the density of The horizontal and vertical support reactions exerted by the ground on the base AB of the dam. Assuming that the dam rotates...
Q.5) Water backs up behind a concrete dam as shown in Figure below. Leakage under the foundation gives a linear pressure distribution under the base of the concrete dam as shown in Figure. If the water depth H, is too great, the dam will topple over about its toe (Point A). For the dimensions given, determine the maximum water depth. Base your analysis on a unit length of the dam. The specific weight of the concrete is 23.7 kN/m”. (Answer...
KHomework Set 9 Pressure on a Dam As the reservoir behind a dam is filled with water, the pressure that the water exerts on the dam increases Eventually, the force on the dam becomes substantial and it could cause the dam to collapse. There are two significant issues to be considered: First, the base of the dam should be able to withstand the pressure pgh , where p is the density of the water behind the danm h is its...
The cross section of a concrete dam is shown in the figure
below. For a 0.3 m wide dam section, determine the result of the
pressure forces exerted by the water on the BC face of the dam. Use
ρ = 10³ kg / m³ for the specific water mass.
= 6,3 m r = 6.3 m Dado: X 4R/3
Question Design the cross section of a gravity dam as shown in the figure below. Assume the specific unit weight of the concrete is 24 kN/m² and the friction factor between the dam and the underlying layer is 0.65. Consider only water loads and weight of the dam. Find the normal stress and check against sliding and overturning, assuming full uplift. (8 mark) 10 m 8 44 m 1:10 3:10
Problem (2) (12) For the concrete dam and soil profile shown in the Figure below, the flow net is cons channel and 8 isted of 3 fNow rops, calculate: a) The rate of seepage under the dam in ft /sec/ft. b) Pore water pressure at points A, C, and D in Ib/ft. c) The uplift force in lb/ft at the base of the dam due to water pressure C use points C and D). 20
Problem 2 A concrete dam has a curved surface and restrain water (p=1000kg/m3) at a depth H=2 m. The trace of the surface is a parabola described by the equation: z= 0.2x2 . dam 1- Determine the gage pressure distribution in the water 2- Determine the magnitude of the pressure force F acting on the curved dam surface per unit width (dimension normal to the page) of the gate. [Solution: F=45,780 N] 3-Determine the angle of that force relative to...
Chapter 15 Pressure on a Dam Due 4 of 16 ( As the reservoir behind a dam is filled with water pressure that the water exerts on the dam increases Eventually, the force on the dam becomes substantial, and it could cause the dam to collapse. There are two significant issues to be considered: First, the base of the dam should be able to withstand the pressure Agh, where ? is the density of the water behind the Consider a...
