7. Draw an acceptable Lewis Dot structure from each condensed structure, such that all atoms have zero formal charge.

a. acrylonitrile, CH2CHCN, starting material used to manufacture synthetic Orlon fibers.

b. dihydroxyacetone, (HOCH2)2CO, an ingredient in sunless tanning products.

science chemistry

Answer 1

Answer #1

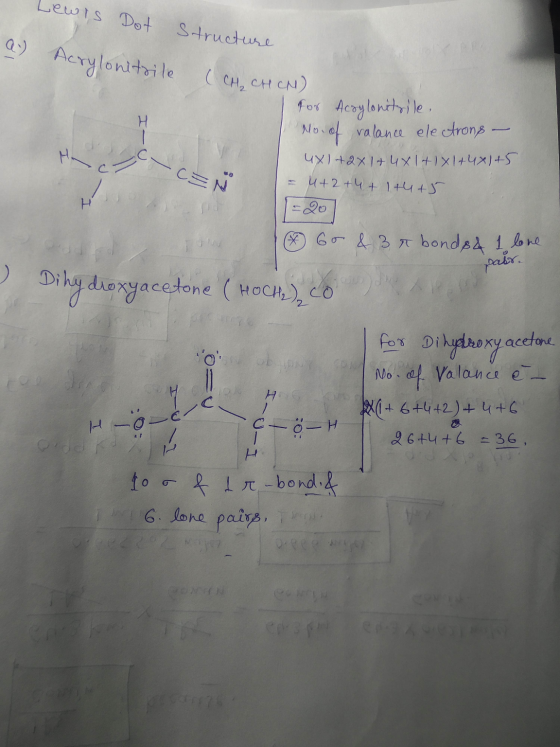

Lewrs Dot Structure Acrylonitrile H₂ For Acrylonitrile, No. of valance electrons - 4X1+2x1+4x1+1X1+4x)+5 = 4+2 +4 + 1t4+5 CSN
