An absorption refrigeration system receives heat from a source at 110°C and maintains the refrigerated space...

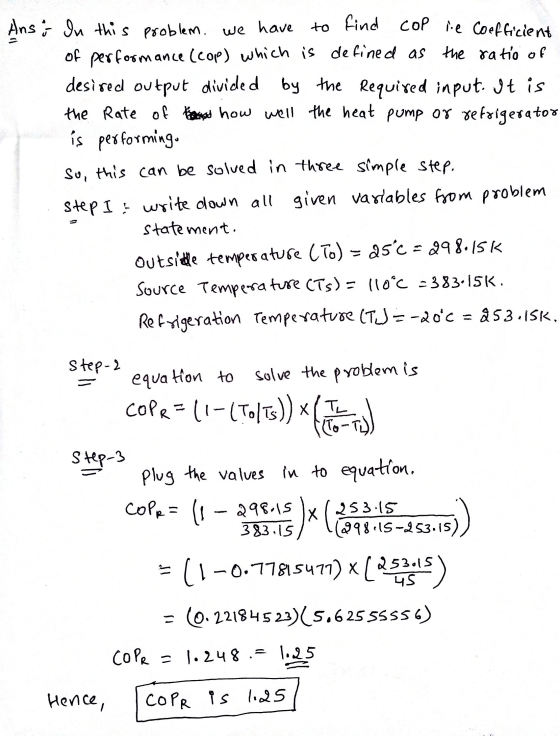

An absorption refrigeration system receives heat from a source
at 110°C and maintains the refrigerated space at -20°C. If the
temperature of the environment is 25°C, what is the maximum COP
this absorption refrigeration system can have?
Homework Answers
Add Answer to:
An absorption refrigeration system receives heat from a source
at 110°C and maintains the refrigerated space...
Problem #1 (40 Marks) A refrigeration system is designed to maintain a cool space at -20°C in arn environment of +50°C....
Problem #1 (40 Marks) A refrigeration system is designed to maintain a cool space at -20°C in arn environment of +50°C. The wide temperature range is difficult to achieve with a single refrigerant, because the refrigerant will generally be at excessively high pressures at the top of the temperature range, and sub-atmospheric pressures at the bottom end The problem is solved with a 2-stage cascaded system that uses refrigerant 134a (R134a) and refrigerant 22 (R22) respectively for the high temperature...
Refrigeration Question 1 a) A refrigerant R134a refrigerator is to maintain the refrigerated spac...
Refrigeration Question 1 a) A refrigerant R134a refrigerator is to maintain the refrigerated space at -100C. Would you recommended an evaporator pressure of 1.6 bar or 2 bar for this system? Why? -la An automotive Air conditioner using refrigerant R134a as the working fluid and operating on ideal vapor compression refrigerant cycle is to maintain a space at 24°C while operating its condenser at 1000 kPa. Determine the COP of the system when a temperature difference of 14°C is allowed...
A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space...
A commercial refrigerator with refrigerant-134a as the working fluid is used to keep the refrigerated space at −25°C by rejecting waste heat to cooling water that enters the condenser at 20°C at a rate of 0.25 kg/s and leaves at 26°C. The refrigerant enters the condenser at 1.2 MPa and 50°C and leaves at the same pressure subcooled by 5°C. If the compressor consumes 3.3 kW of power, determine (a) the mass flow rate of the refrigerant, (b) the refrigeration...

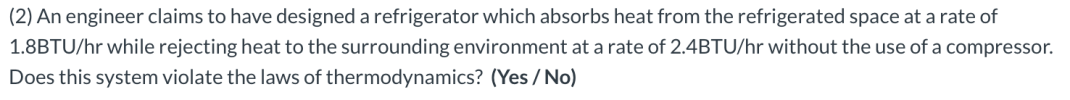

(2) An engineer claims to have designed a refrigerator which absorbs heat from the refrigerated space...
(2) An engineer claims to have designed a refrigerator which absorbs heat from the refrigerated space at a rate of 1.8BTU/hr while rejecting heat to the surrounding environment at a rate of 2.4BTU/hr without the use of a compressor. Does this system violate the laws of thermodynamics? (Yes / No)

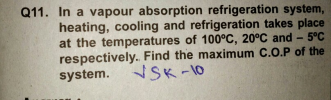

Q11. In a vapour absorption refrigeration system, heating, cooling and refrigeration takes place at the temperatures...
