An inductor has a 53.6-? reactance when connected to a 60.0-Hz source. The inductor is removed...
An inductor has a 53.6-? reactance when connected to a 60.0-Hz source. The inductor is removed and then connected to a 51.0-Hz source that produces a 80.0-V rms voltage. What is the maximum current in the inductor?
Homework Answers
wL = 53.6
=> 60*2*3.14*L = 53.6
=> L = 0.14225053078556263269639 H
max current = 80*sqrt(2)/wL =
(80*1.414213562373095)/(51*2*3.14*0.14225053078556263269639) =
2.483254718828964 A answer
Add Answer to:
An inductor has a 53.6-?
reactance when connected to a 60.0-Hz
source. The inductor is removed...
When an inductor is connected to a 60.0 Hz source it has an inductive reactance of...
When an inductor is connected to a 60.0 Hz source it has an inductive reactance of 54.6 Ω. Determine the maximum current in the inductor (in A) if it is connected to a 45.0 Hz source that produces a 105 V rms voltage.
maximum current in inductor
When an inductor is connected to a 60.0 Hz source it has an inductive reactance of 56.8 Ω. Determine the maximum current in the inductor (in A) if it is connected to a 45.0 Hz source that produces a 120 V rms voltage
An LRC circuit consists of a 15.0 μF capacitor, a resistor, and an inductor connected in...
An LRC circuit consists of a 15.0 μF capacitor, a resistor, and an inductor connected in series across an AC power source of variable frequency having a voltage amplitude of 20.0 V. You observe that when the power source frequency is adjusted to 44.5 Hz, the rms current through the circuit has its maximum value of 65.0 mA. What will be the rms current if you change the frequency of the power source to 60.0 Hz? {? A}
An AC source has an output rms voltage of 78 V at a frequency of 80...
An AC source has an output rms voltage of 78 V at a frequency of 80 Hz. If the source is connected across a 25mH inductor, what are (a) the inductive reactance of the circuit, (b) the rms current in the circuit and (c) the maximum current in the circuit?
An AC source has an output rms voltage of 71.0 V at a frequency of 41.5...
An AC source has an output rms voltage of 71.0 V at a frequency of 41.5 Hz. The source is connected across a 25.5-mH inductor. (a) Find the inductive reactance of the circuit. (b) Find the rms current in the circuit. (c) Find the maximum current in the circuit.
When an inductor is connected to a source of sinusoidally varying voltage with constant amplitude and...

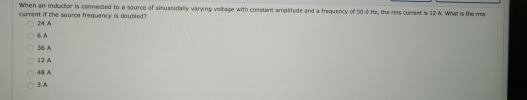

When an inductor is connected to a source of sinusoidally varying voltage with constant amplitude and a frequency of 50.0 Hz, the rms current is 12 A. What is the rms current if the source frequency is doubled? 24 A 6A 36 A 12 A O 48 A OOOO
