The radius of a single atom of generic element X is 179 pm, and a crystal...

Question

Question

The radius of a single atom of generic element X is 179 pm, and a crystal of X has a unit cell that is body-centered cubic. Calculate the volume.

science chemistry

Answer 1

Answer #1

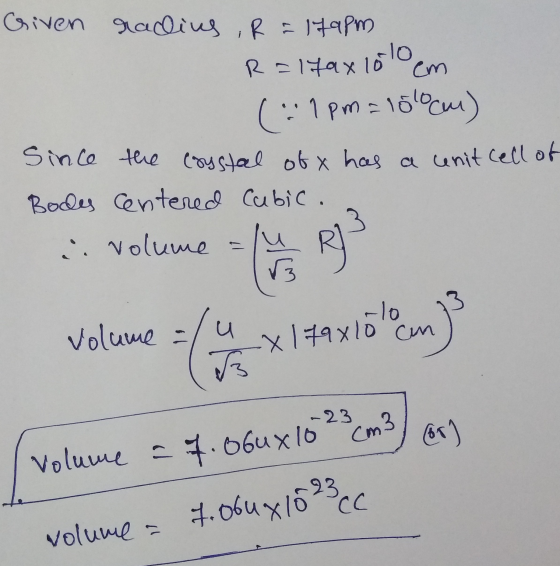

Criven rading, R = 179pm R=17ax 10 10 cm (:1pm = 1560cm) Since the crystal ofx has a unit cell of Bodes Centered Cubic. e vol

Please let me know if you have any doubt. Thank you
