The circulatory system is a circuit and so too are networks of resistors and batteries. Find...
The circulatory system is a circuit and so too are networks of resistors and batteries. Find the quantity in the circulation system that plays the corresponding role to an electrical quantity in an electrical circuit.

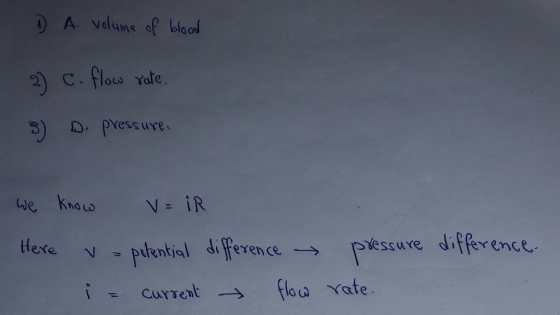

1) Which quantity corresponds to electrical charge?
| A. volume of blood |
| B. viscosity |
| C. flow rate |
2) Which quantity corresponds to current?
| A. pressure |
| B. viscosity |
| C. flow rate |
3) Which quantity corresponds to voltage?
| A. volume |
| B. resistance |
| C. flow rate |
| D. pressure |
Homework Answers
Add Answer to:
The circulatory system is a circuit and so too are networks of
resistors and batteries. Find...
In hemodynamics, blood flow through the cardiovascular system can be modeled as an electric circuit in...
In hemodynamics, blood flow through the cardiovascular system
can be modeled as an electric circuit in which the blood serves as
electricity, the blood vessels as resistive wires, and the heart as
a battery (see Figure 1).
Figure 1 Cardiovascular circuit model
Ohm’s law states that the voltage drop ΔV across each element,
the current I flowing through it, and its electrical
resistance R are related by ΔV = IR. In a blood vessel, pressure
difference between one vessel and...
4. Consider a hypothetical circulatory system composed of 5 capillary beds arranged in parallel. Each capillary...
4. Consider a hypothetical circulatory system composed of 5 capillary beds arranged in parallel. Each capillary bed has a resistance of 3 PRU The total mean pressure gradient in this systenm is 100 mm Hg. a. Calculate the total resistance for this circulatory system (parallel). b. Calculate the flow rate (in ml/sec) through one capillary bed. What would the total flow rate through this parallel system be (now calculate flow for 5 beds in parallel)? c. d. Calculate the total...
NAME SID__ 31. Which of the following is a correct statement when comparing Open Circulatory Systems...
NAME SID__ 31. Which of the following is a correct statement when comparing Open Circulatory Systems and Closed Circulatory Systems? a. Open Circulatory Systems generally require MORE energy to operate, since it is less efficient to circulate the entire amount of interstitial fluid in the body cavity. 8. Arthropods and Insects generally use a Closed Circulatory System, while vertebrates generally use an Open Circulatory System Both systems utilize some form of the following three components: (1) circulatory fluid, (2) vessels...
Which of the following statements is FALSE regarding evaluating networks of resistors and batteries? Please explain!...
Which of the following statements is FALSE regarding evaluating networks of resistors and batteries? Please explain! Select the correct answer a. When following the direction of a (proposed) current, the voltage change across a battery is positive ( a voltage gain) b. The sum of the currents entering a junction (node) must equal the sum of the currents exiting that junction (node). c. The sum of the current around any closed loop must equal to zero d. The sum of...
23-29 23. has an open circulatory system. A. Frog B. Chicken C. Fly D. Human 24....
23-29
23. has an open circulatory system. A. Frog B. Chicken C. Fly D. Human 24. Which statement is wrong in regards to the comparison between the closed and open circulatory system? A. Closed circulatory system is more energy-consuming. B. Closed circulatory system has blood pressure C. Closed circulatory system can regulate the blood flow to certain organ. D. Closed circulatory system can quickly dissipate body heat. 25. The heart chamber that receives blood is called A. Ventricle B. Atrium...
Determine an equivalent electrical circuit using a voltage source and passive elements such as resistors, inductors, and...
Determine an equivalent electrical circuit using a voltage
source and passive elements such as resistors, inductors, and
capacitors that collectively have a similar ODE to the mechanical
system shown below. Steps:
a) Derive the non-homogeneous ODE of the forced mechanical
vibrating system
b) Arrange electrical components into an equivalent circuit with
the aid of textbook Table 6-1.
c) Derive the circuit ODE to demonstrate similar structure to
the ODE of part a)
d) Repeat parts b and c as needed...
Consider the circuit shown below. All three batteries are ideal. The voltmeter and ammeter are also...
Consider the circuit shown below. All three batteries are ideal. The voltmeter and ammeter are also ideal. 7.00V 崇弓= 12.0V v) R 5.00 R2 6.00 Ω = 8.00 V A. What is the internal resistance of the batteries? B. What is the internal resistance of the voltmeter? C. what is the internal resistance of the ammeter? D. Based on your answers to questions A-C draw a simpler equivalent circuit (in the space above to the right of the original circuit)...
Help pls !! The voltage across a circuit (A) can be increased if resistors are added...
Help pls !!
The voltage across a circuit (A) can be increased if resistors are added to circuit in series (B) can be increased if resistorsct i sries (D) is nell (C) can be decreased if resistors are are added to a circuit in increased nor decreased by adding resistors to bulb burns out, other continues to give off light. These light bulbs are connected in (A) se the (B) parallel (C) short circuit (D) there is not enough information...
1 2 3 4 5 A circuit with 4 resistors and two batteries is created as...
1 2 3 4 5 A circuit with 4 resistors and two batteries is created as shown. ma as DT 1) Using Kirchhoff's Junction Rule, which of the following is a correct equation relating the currents for the node labeled 13 - 15 = 0 13 + 5 = 0 13 + 14 - 15 = 0 0-13 + 14 - 15 = 0 12 +13 + 14 - 15 = 0 0-12 + 13 + 14 - 15 =...
1) Which of the following statements is true regarding the human circulatory system? A) If we...
1) Which of the following statements is true regarding the human circulatory system? A) If we were to stretch them out we would have about 50 miles worth of blood vessels. B)The type of blood vessels that carry blood away from the heart are called veins. C) Blood pumped out of the heart carries delivers oxygen and nutrition to all the body tissues and organs except the liver. D) The left side of the heart always contains freshly oxygenated blood....
In hemodynamics, blood flow through the cardiovascular system
can be modeled as an electric circuit in which the blood serves as
electricity, the blood vessels as resistive wires, and the heart as
a battery (see Figure 1).
Figure 1 Cardiovascular circuit model
Ohm’s law states that the voltage drop ΔV across each element,
the current I flowing through it, and its electrical
resistance R are related by ΔV = IR. In a blood vessel, pressure
difference between one vessel and...
4. Consider a hypothetical circulatory system composed of 5 capillary beds arranged in parallel. Each capillary bed has a resistance of 3 PRU The total mean pressure gradient in this systenm is 100 mm Hg. a. Calculate the total resistance for this circulatory system (parallel). b. Calculate the flow rate (in ml/sec) through one capillary bed. What would the total flow rate through this parallel system be (now calculate flow for 5 beds in parallel)? c. d. Calculate the total...
NAME SID__ 31. Which of the following is a correct statement when comparing Open Circulatory Systems and Closed Circulatory Systems? a. Open Circulatory Systems generally require MORE energy to operate, since it is less efficient to circulate the entire amount of interstitial fluid in the body cavity. 8. Arthropods and Insects generally use a Closed Circulatory System, while vertebrates generally use an Open Circulatory System Both systems utilize some form of the following three components: (1) circulatory fluid, (2) vessels...
23-29
23. has an open circulatory system. A. Frog B. Chicken C. Fly D. Human 24. Which statement is wrong in regards to the comparison between the closed and open circulatory system? A. Closed circulatory system is more energy-consuming. B. Closed circulatory system has blood pressure C. Closed circulatory system can regulate the blood flow to certain organ. D. Closed circulatory system can quickly dissipate body heat. 25. The heart chamber that receives blood is called A. Ventricle B. Atrium...
Determine an equivalent electrical circuit using a voltage
source and passive elements such as resistors, inductors, and
capacitors that collectively have a similar ODE to the mechanical
system shown below. Steps:
a) Derive the non-homogeneous ODE of the forced mechanical
vibrating system
b) Arrange electrical components into an equivalent circuit with
the aid of textbook Table 6-1.
c) Derive the circuit ODE to demonstrate similar structure to
the ODE of part a)
d) Repeat parts b and c as needed...
Consider the circuit shown below. All three batteries are ideal. The voltmeter and ammeter are also ideal. 7.00V 崇弓= 12.0V v) R 5.00 R2 6.00 Ω = 8.00 V A. What is the internal resistance of the batteries? B. What is the internal resistance of the voltmeter? C. what is the internal resistance of the ammeter? D. Based on your answers to questions A-C draw a simpler equivalent circuit (in the space above to the right of the original circuit)...
Help pls !!
The voltage across a circuit (A) can be increased if resistors are added to circuit in series (B) can be increased if resistorsct i sries (D) is nell (C) can be decreased if resistors are are added to a circuit in increased nor decreased by adding resistors to bulb burns out, other continues to give off light. These light bulbs are connected in (A) se the (B) parallel (C) short circuit (D) there is not enough information...
1 2 3 4 5 A circuit with 4 resistors and two batteries is created as shown. ma as DT 1) Using Kirchhoff's Junction Rule, which of the following is a correct equation relating the currents for the node labeled 13 - 15 = 0 13 + 5 = 0 13 + 14 - 15 = 0 0-13 + 14 - 15 = 0 12 +13 + 14 - 15 = 0 0-12 + 13 + 14 - 15 =...
