1) What is the battery current Ibat when the switch in the figure(Figure 1) is open?...

Question

Question

What is the battery current Ibat when the switch i

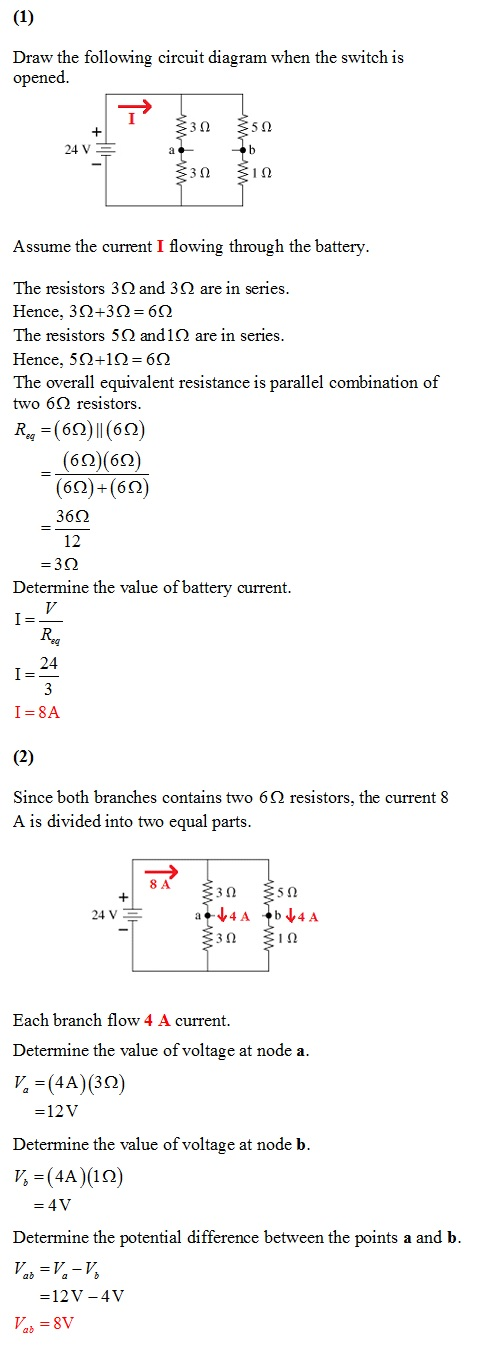

1) What is the battery current

Ibat when the switch in the figure(Figure 1) is open?

2)What is the potential difference

Vab between points a and b when the switch is open?

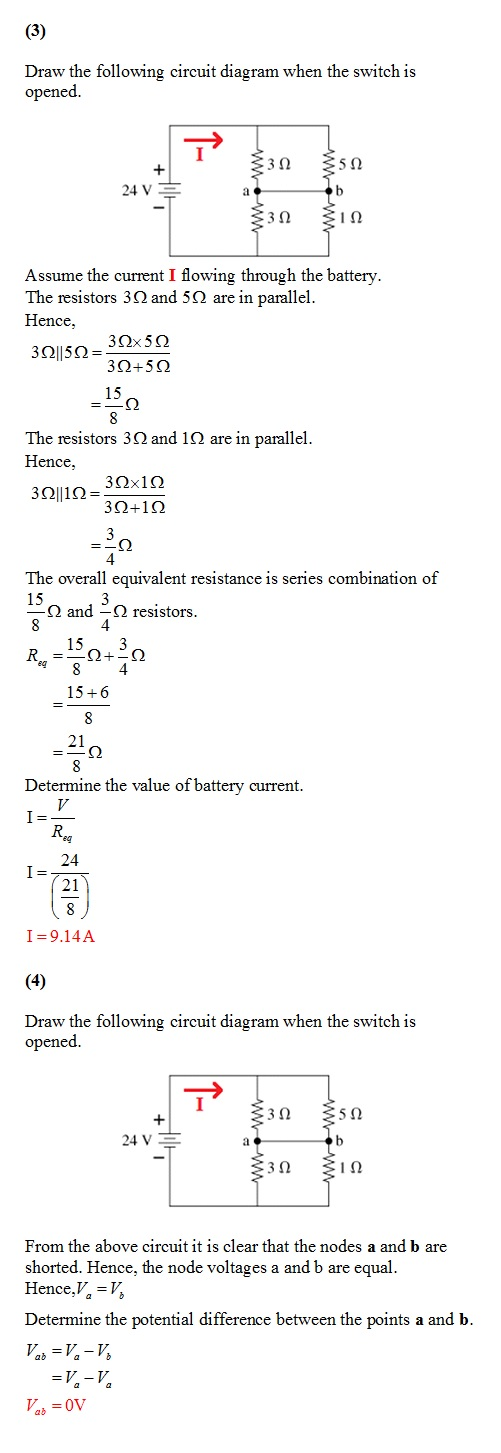

3)What is the battery current

Ibat when the switch is closed?

4) What is the potential difference

Vab between points a and b when the switch is closed?

math calculus

Answer 1

✔ Recommended Answer

Answer #1

Answer 2
