Homework Answers
1)Cell potential of the given reaction
Ecell=Ecathode-Eanode
=ERight-ELeft
=0.80v-(-0.25v)
=0.80v+0.25v
=1.05v
2) Net ionic equation for overall balanced redox reaction
2Ag⁺(aq) + Ni(s) → 2Ag(s) + Ni²⁺(aq)

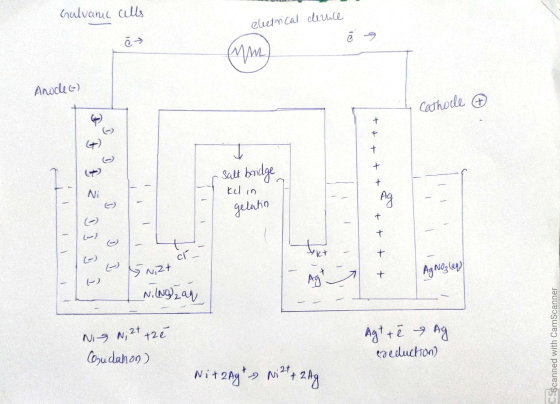

3) Pls
see uploaded figure with answer
4) Representation of Galvanic cell
Ni(s)| Ni[2+] (aq) || Ag+ (aq)| Ag(s)
5) A salt bridge, in electrochemistry, is a laboratory device used to connect the oxidation and reduction half-cells of a galvanic cell (voltaic cell). It is a type of electrochemical cell. It maintains electrical neutrality within the internal circuit, preventing the cell from rapidly running its reaction to equilibrium. Eg: AgNO3, KCl
Add Answer to:

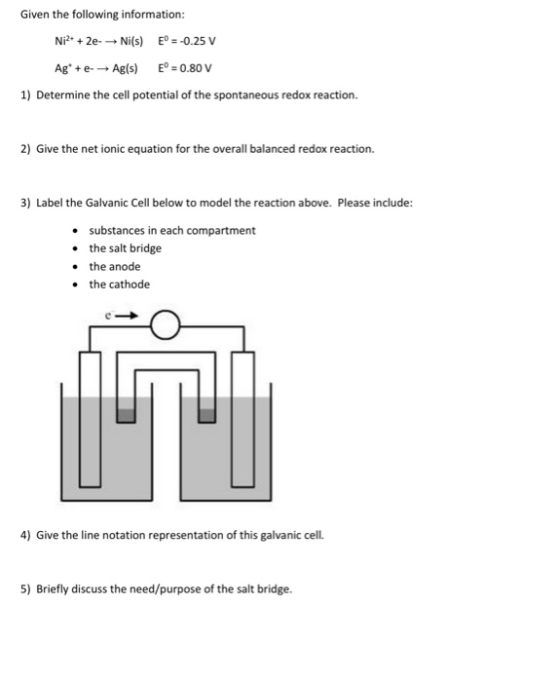

Given the following information: Ni2+ + 2e- Ni(s) Eº = -0.25 V Ag* + e. Ag(s)...
