Question

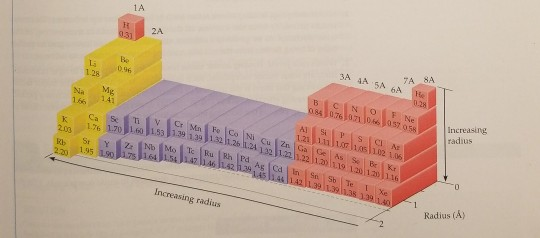

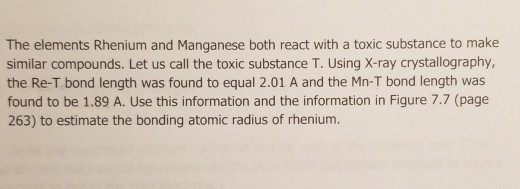

The elements Rhenium and Manganese both react with a toxic substance to make similar compounds. Let us call the toxic substance T. Using X-ray crystallography, the Re-T bond length was found to equal 2.01 A and the Mn-T bond length was found to be 1.89 A. Use this information and the information in Figure 7.7 (page 263) to estimate the bonding atomic radius of rhenium.

Please explain. Thanks.

Answer 1

Bond length of Re-T is 2.01 and bond length of Mn-T is1.89

rRe is the radius of Rhenium

rMn is the radius of manganese

rT is radius of toxic compound

bond length of Re-T (d1)= rRe + rT ------(1)

Bond length of Mn-T i(d2) = rMn + rT-------(2)

applying [(1) - (2)]

d1 - d2 = (rRe + rT) -(rMn + rT) , Given d1=2.01 A & d2=1.89 A

(2.01-1.89) = rRe - rMn

0.12= rRe - 1.39, Given rMn = 1.39 A

rRe = 1.51 A
