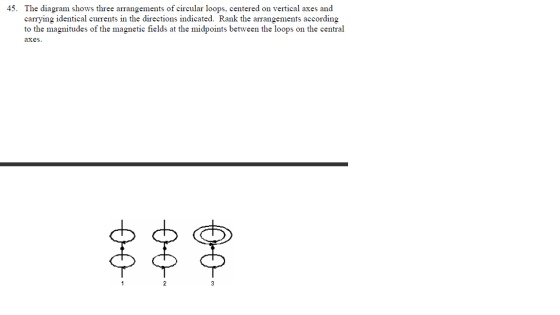

The diagram shows three arrangements of circular loops, centered on vertical axes and carrying identical currents...
5. Consider the four arrangements of three concentric loops of wire. The currents in the loops...
5. Consider the four arrangements of three concentric loops of wire. The currents in the loops have all the same magnitude, but different directions as shown by the arrows. Rank the magnitude of the magnetic field produced at the ćenter of each arrangement, smallest to largest. Answer:
The figure shows three arrangements of a block attached to identical springs that are in their...
The figure shows three arrangements of a block attached to
identical springs that are in their relaxed state when the block is
centered as shown. Rank the arrangements according to the magnitude
of the net force on the block, largest first, when the block is
displaced by distance d (a) to the right
and (b) to the left. Rank the arrangements
according to the work done on the block by the spring forces,
greatest first, when the block is displaced...
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are...
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are all equal, two being out of the page and one being into the page. Rank the wires according to the magnitudes of the magnetic forces on them greatest first 2 3 Select one: a. 1 = 2 = 3 b. 1 > 2>3 c. 2 >1= 3 d. 3 >2 > 1 e. 1 = 32
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are...
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are all equal, two being out of the page and one being into the page. Rank the wires according to the magnitudes of the magnetic forces on them, greatest first. 2 3 Select one: a. 2>1=3 b. 1=3> 2 c. 3 > 2 > 1 O d. 1 > 2> 3 O d e. 1 = 2 =3
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are...
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are all equal, two being out of the page and one being into the page. Rank the wires according to the magnitudes of the magnetic forces on them greatest first. Select one O a. 1 = 2-3 O b. 1-3 > 2 O c. 21-3 O d. 1 > 2>3 O e. 3 > 2 > 1
The figure shows three long, parallel, current-carrying wires perpendicular to the page. In the picture, the...
The figure shows three long, parallel, current-carrying wires
perpendicular to the page. In the picture, the current directions
are indicated for I1 and I3. The three currents have equal
magnitudes. The direction of the current I2 is INTO the page.
Determine the direction of the net force acting on the wire I3 due
to the presence of the other two wires. Group of answer choices
left
right
Up
down
The figure shows three long, parallel, current-carrying wires perpendicular to the...
The figure shows three long, parallel, current-carrying wires. The current directions are indicated for currents I1...
The figure shows three long, parallel, current-carrying wires.
The current directions are indicated for currents
I1 and I3. The three
currents have equal magnitudes. In the space provided below write
the direction of the currentI2 ( it
could be INTO the page or OUT of the page, it is your choice!).
Then, accordingly to your selection of
I2 , write the direction of the net
force acting on the wire I3 due to the
presence of the other two wires....
10. The figure shows six sets of five equally spaced, long parallel wires carrying electric currents...
10. The figure shows six sets of five equally spaced, long parallel wires carrying electric currents of equal magnitudes into or out of the page. Rank the magnitude of the magnetic forces acting on the central wire in each scenario, due to the currents in the other four wires, from greatest to smallest. Support your ranking with the appropriate calculations/justifications. O O O A O O O o B O O С O ♡ ♡ O D E O ♡...
Question 15 Not yet awered Points out of 6.00 Plas question The diagram shows three equally...
Question 15 Not yet awered Points out of 6.00 Plas question The diagram shows three equally spaced wires that are perpendicular to the page. The currents are all equal, two being out of the page and one being into the page. Rank the wires according to the magnitudes of the magnetic forces on them greatest first Select one O a. 1 = 2 =3 O b. 1=3>2 O c. 1>2 > 3 O d. 2 > 1=3 O e. 3>2>1
1. (30) The diagram below shows two current-carrying wires. Both wires carry the same current, bat...
1. (30) The diagram below shows two current-carrying wires. Both wires carry the same current, bat in disferen directions, as indicated. (a) Draw an arrow in the direction of the magnetic field at each labeled point. (b) Rank the magnitude of the magnetic field at each point, greatest first. Briefly explain your reasoning (e) Suppose the current in the wire on the left were changed to flow out of the page. Would the magnitude of the magnetic field at each...
5. Consider the four arrangements of three concentric loops of wire. The currents in the loops have all the same magnitude, but different directions as shown by the arrows. Rank the magnitude of the magnetic field produced at the ćenter of each arrangement, smallest to largest. Answer:
The figure shows three arrangements of a block attached to
identical springs that are in their relaxed state when the block is
centered as shown. Rank the arrangements according to the magnitude
of the net force on the block, largest first, when the block is
displaced by distance d (a) to the right
and (b) to the left. Rank the arrangements
according to the work done on the block by the spring forces,
greatest first, when the block is displaced...
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are all equal, two being out of the page and one being into the page. Rank the wires according to the magnitudes of the magnetic forces on them greatest first 2 3 Select one: a. 1 = 2 = 3 b. 1 > 2>3 c. 2 >1= 3 d. 3 >2 > 1 e. 1 = 32
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are all equal, two being out of the page and one being into the page. Rank the wires according to the magnitudes of the magnetic forces on them, greatest first. 2 3 Select one: a. 2>1=3 b. 1=3> 2 c. 3 > 2 > 1 O d. 1 > 2> 3 O d e. 1 = 2 =3
The diagram shows three equally spaced wires that are perpendicular to the page. The currents are all equal, two being out of the page and one being into the page. Rank the wires according to the magnitudes of the magnetic forces on them greatest first. Select one O a. 1 = 2-3 O b. 1-3 > 2 O c. 21-3 O d. 1 > 2>3 O e. 3 > 2 > 1
The figure shows three long, parallel, current-carrying wires
perpendicular to the page. In the picture, the current directions
are indicated for I1 and I3. The three currents have equal
magnitudes. The direction of the current I2 is INTO the page.
Determine the direction of the net force acting on the wire I3 due
to the presence of the other two wires. Group of answer choices
left
right
Up
down
The figure shows three long, parallel, current-carrying wires perpendicular to the...
The figure shows three long, parallel, current-carrying wires.
The current directions are indicated for currents
I1 and I3. The three
currents have equal magnitudes. In the space provided below write
the direction of the currentI2 ( it
could be INTO the page or OUT of the page, it is your choice!).
Then, accordingly to your selection of
I2 , write the direction of the net
force acting on the wire I3 due to the
presence of the other two wires....
10. The figure shows six sets of five equally spaced, long parallel wires carrying electric currents of equal magnitudes into or out of the page. Rank the magnitude of the magnetic forces acting on the central wire in each scenario, due to the currents in the other four wires, from greatest to smallest. Support your ranking with the appropriate calculations/justifications. O O O A O O O o B O O С O ♡ ♡ O D E O ♡...
Question 15 Not yet awered Points out of 6.00 Plas question The diagram shows three equally spaced wires that are perpendicular to the page. The currents are all equal, two being out of the page and one being into the page. Rank the wires according to the magnitudes of the magnetic forces on them greatest first Select one O a. 1 = 2 =3 O b. 1=3>2 O c. 1>2 > 3 O d. 2 > 1=3 O e. 3>2>1
1. (30) The diagram below shows two current-carrying wires. Both wires carry the same current, bat in disferen directions, as indicated. (a) Draw an arrow in the direction of the magnetic field at each labeled point. (b) Rank the magnitude of the magnetic field at each point, greatest first. Briefly explain your reasoning (e) Suppose the current in the wire on the left were changed to flow out of the page. Would the magnitude of the magnetic field at each...
