(a) If an inductor carrying a 1.80 A current stores an energy of 0.250 mJ, what...
_____mH
(b) How much energy does the same inductor store if it carries a 3.3 A current?
_____mJ
Homework Answers
a) 0.25x10^-3 = 0.5L(1.8)^2
L = 1.54x10^-4 H
L = 0.154 mH
b) E = 0.5*1.54x10^-4*3.3^2
= 0.84 mJ
Add Answer to:
(a) If an inductor carrying a 1.80 A current stores an energy of
0.250 mJ, what...
(a) If an inductor carrying a 1.55 A current stores an energy of 0.250 m), what...
(a) If an inductor carrying a 1.55 A current stores an energy of 0.250 m), what is its inductance? MH (b) How much energy does the same inductor store if it carries a 3.1 A current? m) Additional Materials eBook [-/2 Points) DETAILS SERCP10 21.P.008. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHE What is the maximum current delivered to a circuit containing a 4.00 uF capacitor when it is connected across the following outlets? (a) a North American outlet having...
When a certain inductor carries a current 4.1 mA, it stores 4.0 mJ of magnetic energy....
When a certain inductor carries a current 4.1 mA, it stores 4.0 mJ of magnetic energy. How much current would it have to carry to store 8.6mJ of energy? Show your work in detail please!
When a certain inductor carries a current I, it stores 3.2mJ of magnetic energy. How much...
When a certain inductor carries a current I, it stores 3.2mJ of magnetic energy. How much current (in terms of I) would it have to carry to store 9.2mJ of energy? I'/I = ? Please show all steps!
(a) How much energy is stored in a 10.2 mH inductor carrying a 1.15 A current?...
(a) How much energy is stored in a 10.2 mH inductor carrying a 1.15 A current? (b) How much current would such an inductor have to carry to store 1.0 J of energy? (c) Is this a reasonable amount of current for ordinary laboratory circuit elements?

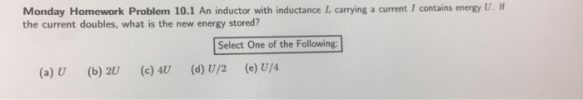

Monday Homework Problem 10.1 An inductor with inductance L carrying a current I contains energy U....
Monday Homework Problem 10.1 An inductor with inductance L carrying a current I contains energy U. If the current doubles, what is the new energy stored? Select One of the Following (a) U (b) 2U (c) U (d) U/2 (e) U/
a.) An inductor carries a current of 4.4 A, and the magnetic energy stored in the...
a.) An inductor carries a current of 4.4 A, and the magnetic energy stored in the inductor is 0.0022 J. What is the inductance? mH b.) An inductor with L = 1.4 mH is connected to a circuit that produces a current increasing steadily from 1.8 A to 5.2 A over a time of 2.6 s. What is the voltage across the inductor? mV
The current through a 58 mH inductor is measured 1.6 amps. How much energy is stored...
The current through a 58 mH inductor is measured 1.6 amps. How much energy is stored in millijoules? Question 15 10 pt One 3 mH and one 8 mH inductor are connected in series. What is the equivalent inductance (in mH)?

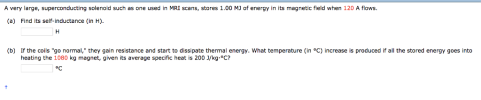

A very large, superconducting solenoid such as one used in MRI scans, stores 1.00 MJ of...
A very large, superconducting solenoid such as one used in MRI scans, stores 1.00 MJ of energy in its magnetic field when 120 A flows. (a) Find its self-inductance (in H) (b) If the coils "go normal," they gain resistance and start to dissipate thermal energy. What temperature (in °C) increase is produced if all the stored energy goes into heating the 1080 kg magnet, given its average specific heat is 200 J/kg.°C? OC
5. A uniform magnetic field of magnitude 0.70 T is directed perpendicular to the plane of...
5. A uniform magnetic field of magnitude 0.70 T is directed perpendicular to the plane of a rectangular loop having dimensions 7.8 cm by 13 cm. Find the magnetic flus through the loop .2 mWb b. 6,4 mWh c. 7.1 mWb d. 5.6 m Wb e. None of the above. 16 A battery is connected in series with a 2.7 resistor and a 13 mlt indwcter. The masimum current in the circuit is 140 mA. Find the time constant of...
An Inductor has an inductance 25 mH. 8 identical Inductors are then constructed in series. This...
An Inductor has an inductance 25 mH. 8 identical Inductors are then constructed in series. This network of Inductors is then connected to a 6.0 V cell, of internal resistance 4.0 Ω. How much energy is stored within the magnetic fields of these inductors (in total) when the current has reached a steady value? Express your answer in mJ.
(a) If an inductor carrying a 1.55 A current stores an energy of 0.250 m), what is its inductance? MH (b) How much energy does the same inductor store if it carries a 3.1 A current? m) Additional Materials eBook [-/2 Points) DETAILS SERCP10 21.P.008. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHE What is the maximum current delivered to a circuit containing a 4.00 uF capacitor when it is connected across the following outlets? (a) a North American outlet having...
Monday Homework Problem 10.1 An inductor with inductance L carrying a current I contains energy U. If the current doubles, what is the new energy stored? Select One of the Following (a) U (b) 2U (c) U (d) U/2 (e) U/
The current through a 58 mH inductor is measured 1.6 amps. How much energy is stored in millijoules? Question 15 10 pt One 3 mH and one 8 mH inductor are connected in series. What is the equivalent inductance (in mH)?
A very large, superconducting solenoid such as one used in MRI scans, stores 1.00 MJ of energy in its magnetic field when 120 A flows. (a) Find its self-inductance (in H) (b) If the coils "go normal," they gain resistance and start to dissipate thermal energy. What temperature (in °C) increase is produced if all the stored energy goes into heating the 1080 kg magnet, given its average specific heat is 200 J/kg.°C? OC
5. A uniform magnetic field of magnitude 0.70 T is directed perpendicular to the plane of a rectangular loop having dimensions 7.8 cm by 13 cm. Find the magnetic flus through the loop .2 mWb b. 6,4 mWh c. 7.1 mWb d. 5.6 m Wb e. None of the above. 16 A battery is connected in series with a 2.7 resistor and a 13 mlt indwcter. The masimum current in the circuit is 140 mA. Find the time constant of...
