Question

In Fig.30.11 in the textbook, suppose that E = 60.0V, R = 240 ?, and L = 0.160H. Initially there is no current in the circuit. Switch S2 is left open, and switch S1 is closed.

a)Just after S1 is closed, what is the potential differences Vab?

b)Just after S1 is closed, what is the potential differences Vbc?

c)A long time (many time constants) after S1 is closed, what is Vab?

d)A long time (many time constants) after S1 is closed, what is Vbc?

e)What is Vab at an intermediate time when i = 0.150A?

f)What is Vbc at an intermediate time when i = 0.150A?

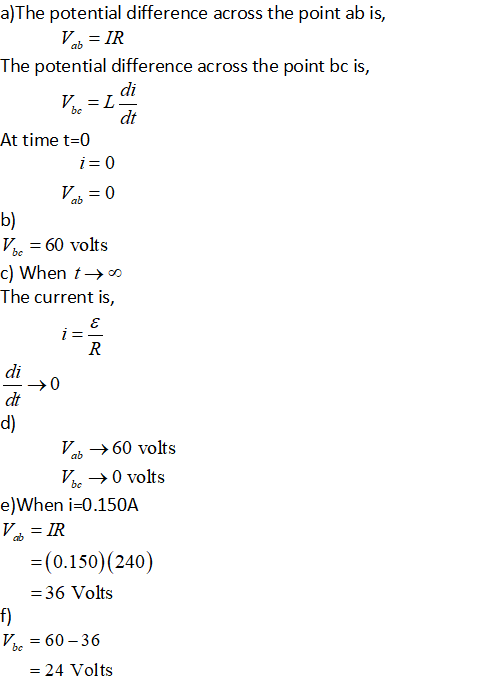

Answer 1
