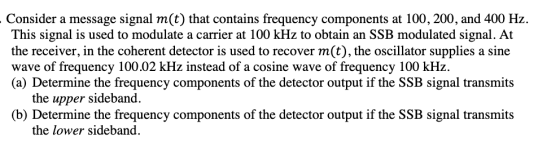

Consider a message signal m(t) that contains frequency components at 100, 200, and 400 Hz. This...
Consider the message signal m(t):
Consider the message signal m(t):a. Sketch the AM signal u(t)=[ A + m(t) ] Cos(wct) for modulation indexes μ = 0.5 and μ = 2.0 by assuming the carrier frequency to be much higher than the bandwidth of m(t) b. Determine the efficiency percentage (η = ps/pt) for μ = 0.5. Herein, Ps and Pt are sideband and total powers respectively, and Pt= Ps + Pc , in which Pc is the carrier power. Hint : Take into account the Parseval's property. c. If the AM waveforms corresponding...
An AM receiver is tuned to broadcast station at 600 kHz. Calculate the image rejection in dB, assuming that the input f...
An AM receiver is tuned to broadcast station at 600 kHz. Calculate the image rejection in dB, assuming that the input filter consist of one tuned circuit with a Q of 40? An SSB system transmit a peak envelope power of 100 W into a 75 ohms load. The carrier signal is modulated by two tones, with frequencies 2 kHz and 3 kHz with equal magnitude and only the lower sideband is transmitted with a suppressed carrier. Determine the average...
An AM receiver is tuned to broadcast station at 600 kHz. Calculate the image rejection in...
An AM receiver is tuned to broadcast station at 600 kHz. Calculate the image rejection in dB, assuming that the input filter consist of one tuned circuit with a Q of 40? An SSB system transmit a peak envelope power of 100 W into a 75 ohms load. The carrier signal is modulated by two tones, with frequencies 2 kHz and 3 kHz with equal magnitude and only the lower sideband is transmitted with a suppressed carrier. Determine the average...
Let m(t) = cos wmt denote the message signal to modulate with wm = 200 Hz....
Let m(t) = cos wmt denote the message signal to modulate with wm = 200 Hz. The carrier frequency is given by We = 100 Hz. You will perform modulation and demodulation of double sideband-suppresed carrier (DSB-SC). 1. Modulate m(t). (4 pts) Note: Denote the result of modulation as Smod(t). 2. Demodulate Smod(t). (6 pts) Note: Denote the result of modulation as Sdem(t). Note: To get full credits, strictly mark on m(t) recovered.
When the message signal m (t) =cos (2π fmt) and the carrier signal is c(t)=cos (2π fct) , fm<&...
When the message signal m (t) =cos (2π fmt) and the
carrier signal is c(t)=cos (2π fct) ,
fm<< fc,
The modulated DSB-SC signal
SDSB-SC=m(t)cos(2πfct) is generated, and only
the upper sideband
To generate and transmit the SSB signal. As shown in the figure
below, the receiver is a local oscillator
cosine signal to the received signal and passes it through a
low-pass filter. Answer the following questions.
(a) Draw the waveform of DSB-SC modulated signal
SDSB-SC(t）
(b)Find the result...
Can you please explain the solution step by step. P.S write needly :) Problem 9.11 Derive...
Can you please explain the solution step by step.
P.S write needly :)
Problem 9.11 Derive an expression for the post-detection signal-to-noise ratio of the coherent receiver of Fig. 9.6, assuming that the modulated signal s0) is produced by sinusoidal modulating wave m(1)-A, cos(2p.J) Perform your calculation for the following two receiver types: (a) Coherent DSB-SC receiver (b) Coherent SSB receiver. Assume the message bandwidth is f. Evaluate these expressions-r the received signal strength is 100 picowatts, the noise spectral...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modula...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
PROBLEM 12 The message signal m(t) is a rectangular pulse of unit amplitude and duration T...
PROBLEM 12 The message signal m(t) is a rectangular pulse of unit amplitude and duration T (centered about the origin). The radio-frequency (RF) pulse defined by s(t) = {4_cos(wt), -āsts 1 0. Otherwise a) Drive a formula for the spectrum of s(t) and v(t) assuming that WT. >> 211 b) Sketch the magnitude spectrum of s(t) for w.T. = 20 The below figure describing the modulation and the demodulation of the m(t) signal. VO mo Product modulator Product modulator Low-pass...
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate a carrier and once to phase modulate the same carrier. a) Find a relation between kp and k such that the maximu...
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate a carrier and once to phase modulate the same carrier. a) Find a relation between kp and k such that the maximum phase of the modulated signals in both cases are equal. b) If kp k 1, what is the maximum instantaneous frequency in each case? m(r) 0
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate...
A single tone message signal, m(t) = 2 cos(211 X 1000 t), (freq. is in Hz)...
A single tone message signal, m(t) = 2 cos(211 X 1000 t), (freq. is in Hz) is applied to an FM modulator with the following parameters: Amplitude of the Carrier = 10 (V), Carrier Frequency = 100 (kHz), Frequency sensitivity factor = kx = 103 (Hz/Volt). The modulated signal s(t) is passed through a bandpass filter centered at 102 (kHz) with a bandwidth of 3(kHz), and the output signal sf(t) is obtained. (a) Express the output of the filter, sf(t)...
Let m(t) = cos wmt denote the message signal to modulate with wm = 200 Hz. The carrier frequency is given by We = 100 Hz. You will perform modulation and demodulation of double sideband-suppresed carrier (DSB-SC). 1. Modulate m(t). (4 pts) Note: Denote the result of modulation as Smod(t). 2. Demodulate Smod(t). (6 pts) Note: Denote the result of modulation as Sdem(t). Note: To get full credits, strictly mark on m(t) recovered.
When the message signal m (t) =cos (2π fmt) and the
carrier signal is c(t)=cos (2π fct) ,
fm<< fc,
The modulated DSB-SC signal
SDSB-SC=m(t)cos(2πfct) is generated, and only
the upper sideband
To generate and transmit the SSB signal. As shown in the figure
below, the receiver is a local oscillator
cosine signal to the received signal and passes it through a
low-pass filter. Answer the following questions.
(a) Draw the waveform of DSB-SC modulated signal
SDSB-SC(t）
(b)Find the result...
Can you please explain the solution step by step.
P.S write needly :)
Problem 9.11 Derive an expression for the post-detection signal-to-noise ratio of the coherent receiver of Fig. 9.6, assuming that the modulated signal s0) is produced by sinusoidal modulating wave m(1)-A, cos(2p.J) Perform your calculation for the following two receiver types: (a) Coherent DSB-SC receiver (b) Coherent SSB receiver. Assume the message bandwidth is f. Evaluate these expressions-r the received signal strength is 100 picowatts, the noise spectral...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
PROBLEM 12 The message signal m(t) is a rectangular pulse of unit amplitude and duration T (centered about the origin). The radio-frequency (RF) pulse defined by s(t) = {4_cos(wt), -āsts 1 0. Otherwise a) Drive a formula for the spectrum of s(t) and v(t) assuming that WT. >> 211 b) Sketch the magnitude spectrum of s(t) for w.T. = 20 The below figure describing the modulation and the demodulation of the m(t) signal. VO mo Product modulator Product modulator Low-pass...
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate a carrier and once to phase modulate the same carrier. a) Find a relation between kp and k such that the maximum phase of the modulated signals in both cases are equal. b) If kp k 1, what is the maximum instantaneous frequency in each case? m(r) 0
1- Signal m(t) is shown in Figure 1. This signal is used once to frequency modulate...
A single tone message signal, m(t) = 2 cos(211 X 1000 t), (freq. is in Hz) is applied to an FM modulator with the following parameters: Amplitude of the Carrier = 10 (V), Carrier Frequency = 100 (kHz), Frequency sensitivity factor = kx = 103 (Hz/Volt). The modulated signal s(t) is passed through a bandpass filter centered at 102 (kHz) with a bandwidth of 3(kHz), and the output signal sf(t) is obtained. (a) Express the output of the filter, sf(t)...
