Homework Answers
Add Answer to:
El In the diagram below showing the loog adge on as i rotaies dlociwise in a...

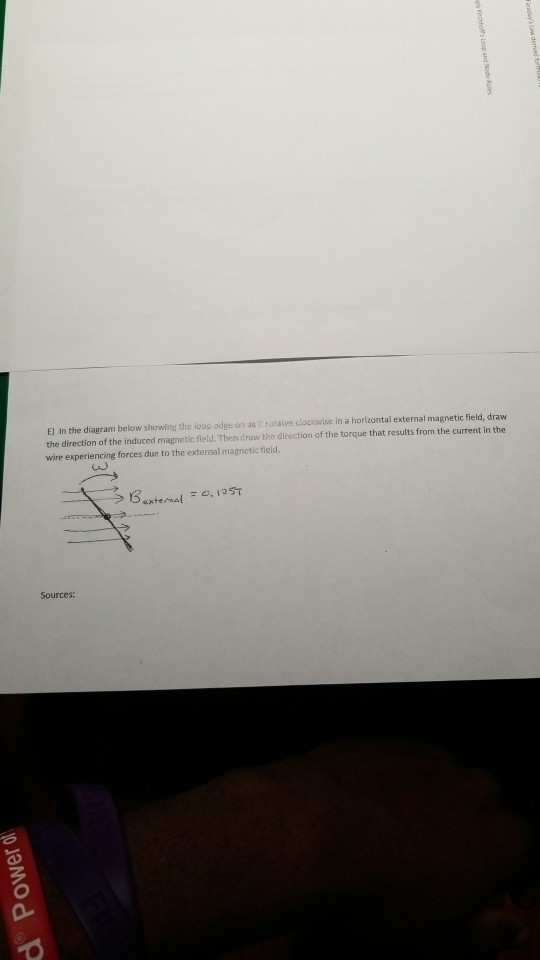

E) In the diagram below showing the loop edge on as it rotates clockwise in a horizontal external...

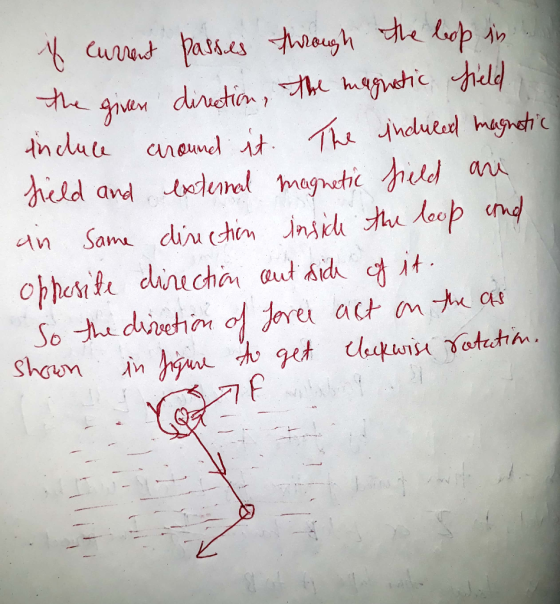

E) In the diagram below showing the loop edge on as it rotates clockwise in a horizontal external magnetic field, draw the direction of the induced magnetic field. Bonus: Then draw the direction of the torque that results from the current in the wire experiencing forces due to the external magnetic field. This is called the counter torque. Besteme
E) In the diagram below showing the loop edge on as it rotates clockwise in a horizontal external magnetic field, draw...
1. The electric circuit in the diagram on the left, below, consists of a wire (without...
1. The electric circuit in the diagram on the left, below, consists of a wire (without resistance) and a 5.0 2 resistor. Current is driven through the circuit by a changing magnetic field that fills the area inside of the circuit and points into the paper, as shown Magnetic field as a function of time T o ® ® ® 40.0 cm Magnetic field in tesla 0.02 Time in seconds 0.C 0.01 0.03 70.0 cm The external magnetic field points...
2. (1) An aircraft is flying directly over the North Magnetic pole with a velocity V....
2. (1) An aircraft is flying directly over the North Magnetic pole with a velocity V. The aircraft is pictured below as it would be viewed from above. What is the direction of the induced emf (voltage) on the wing? is this from P to or Q to P2. Draw the + and at the P and Qsides and explain. f ..P.. (11) A conducting loop of wire is horizontal. A bar magnet is pushed toward the loop from below,...
4. A long straight wire carrying a current is in the plane of a circular loop...
4. A long straight wire carrying a current is in the plane of a circular loop of wire. The current is decreasing. Both the loop and the wire are held in place by external forces. The loop has a resistance of 24. -Long wire Conducting loop a) In what direction does the induced current in the loop flow? Mint: first find the external magnetic field at the loop due to the long wire, figure out if the flux through the...
3. A current is induced in a loop of wire shown. Also shown is Knowing that...
3. A current is induced in a loop of wire shown. Also shown is Knowing that the induced magnetic field was created by a decreasing external magnetic fielod a) Draw the direction of the induced current on the loop b) Is the external magnetic field going into or out of the page?
Help me figure it out plz Consider the wire below in an external, constant magnetic field...
Help me figure it out plz
Consider the wire below in an external, constant magnetic field of 0.0100 T. The wire has an expanding radius given by r = r_0e^beta t where r_0 = 3.00 cm and beta = 0.250 s^-1. (a) What is the induced electric field in the wire at t = 2.00 s? (b) If the induced current is in the direction given below, what is the direction of the external magnetic field?
My% A coll is placed next to a straight wire. The current in the wire is...
My% A coll is placed next to a straight wire. The current in the wire is as shown in the diagram plane of the coil. The coil and wire lie in the same plane with the +z axis perpendicular to the coil wire (a) As the current in the wire increases, find the direction of the induced current in the coil by answering the folliowing questions (0) What is the direction of the magnetic field due to the current carrying...
Question Completion Status: QUESTION 5 In the diagram below, a coil of wire with a radius...
Question Completion Status: QUESTION 5 In the diagram below, a coil of wire with a radius of 5.00 cm is in a 1.50 T magnetic field (that points into the page/screen). How quickly must the loop be removed from the magnetic field in order to produce an emf of 0.50 V? If the magnetic field is into the page. then what is the direction of the induced current in the loop? x x x x O-O T TTT # Paragraph...
Lab 7 Magnetic Force Post Lab Questions Below is a diagram showing the side view of...
Lab 7 Magnetic Force Post Lab Questions Below is a diagram showing the side view of your experiment. 1. (2 points) CLEARLY label the following parts ofthe diagram: current, frame holding current, magnet, digital balance scale. M 3.S3 2. On the diagram below, show the direction of the magnetic field (1 points). What is the angle between the direction of current and the direction of the magnetic filed? (1 points) If current in the frame is as shown below, show...
A long wire carries a current in the direction shown above. The current I varies linearly with time t as follows: I-ct, where c is a positive constant. The long wire is in the same plane as a...
A long wire carries a current in the direction shown above. The current I varies linearly with time t as follows: I=ct, where c is a positive constant. The long wire is in the same plane as a square loop of wire of side b, as shown in the diagram. The side of the loop nearest the long wire is parallel to it and a distance a from it. The loop has a resistance R and is fixed in space. a. Determine...
E) In the diagram below showing the loop edge on as it rotates clockwise in a horizontal external magnetic field, draw the direction of the induced magnetic field. Bonus: Then draw the direction of the torque that results from the current in the wire experiencing forces due to the external magnetic field. This is called the counter torque. Besteme
E) In the diagram below showing the loop edge on as it rotates clockwise in a horizontal external magnetic field, draw...
1. The electric circuit in the diagram on the left, below, consists of a wire (without resistance) and a 5.0 2 resistor. Current is driven through the circuit by a changing magnetic field that fills the area inside of the circuit and points into the paper, as shown Magnetic field as a function of time T o ® ® ® 40.0 cm Magnetic field in tesla 0.02 Time in seconds 0.C 0.01 0.03 70.0 cm The external magnetic field points...
2. (1) An aircraft is flying directly over the North Magnetic pole with a velocity V. The aircraft is pictured below as it would be viewed from above. What is the direction of the induced emf (voltage) on the wing? is this from P to or Q to P2. Draw the + and at the P and Qsides and explain. f ..P.. (11) A conducting loop of wire is horizontal. A bar magnet is pushed toward the loop from below,...
4. A long straight wire carrying a current is in the plane of a circular loop of wire. The current is decreasing. Both the loop and the wire are held in place by external forces. The loop has a resistance of 24. -Long wire Conducting loop a) In what direction does the induced current in the loop flow? Mint: first find the external magnetic field at the loop due to the long wire, figure out if the flux through the...
3. A current is induced in a loop of wire shown. Also shown is Knowing that the induced magnetic field was created by a decreasing external magnetic fielod a) Draw the direction of the induced current on the loop b) Is the external magnetic field going into or out of the page?
Help me figure it out plz
Consider the wire below in an external, constant magnetic field of 0.0100 T. The wire has an expanding radius given by r = r_0e^beta t where r_0 = 3.00 cm and beta = 0.250 s^-1. (a) What is the induced electric field in the wire at t = 2.00 s? (b) If the induced current is in the direction given below, what is the direction of the external magnetic field?
My% A coll is placed next to a straight wire. The current in the wire is as shown in the diagram plane of the coil. The coil and wire lie in the same plane with the +z axis perpendicular to the coil wire (a) As the current in the wire increases, find the direction of the induced current in the coil by answering the folliowing questions (0) What is the direction of the magnetic field due to the current carrying...
Question Completion Status: QUESTION 5 In the diagram below, a coil of wire with a radius of 5.00 cm is in a 1.50 T magnetic field (that points into the page/screen). How quickly must the loop be removed from the magnetic field in order to produce an emf of 0.50 V? If the magnetic field is into the page. then what is the direction of the induced current in the loop? x x x x O-O T TTT # Paragraph...
Lab 7 Magnetic Force Post Lab Questions Below is a diagram showing the side view of your experiment. 1. (2 points) CLEARLY label the following parts ofthe diagram: current, frame holding current, magnet, digital balance scale. M 3.S3 2. On the diagram below, show the direction of the magnetic field (1 points). What is the angle between the direction of current and the direction of the magnetic filed? (1 points) If current in the frame is as shown below, show...
