1. Find the context free grammer for L over Σ={a,b} L ={ a3n : n =>...

Question

Question

1. Find the context free grammer for L over Σ={a,b}

L ={ a³ⁿ : n => 0 }

2. FInd the language L that is defined by the following grammar. (Use Set Builder Notation)
S $\rightarrow$ bS | Sb | a

3.Create a regular expression for the following:

L(r)= {w $\epsilon$ {a,b}* : w begins with an 'a' and ends with a 'b' }

engineering Computer-Science

Answer 1

Answer #1

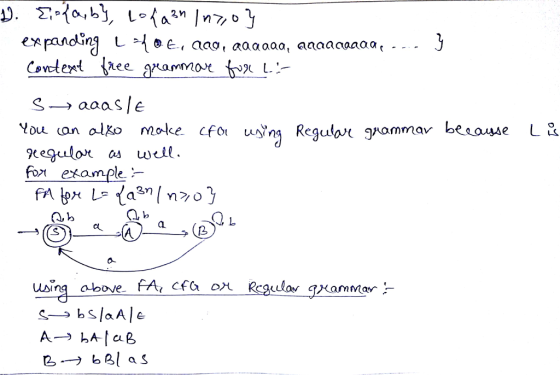

for example Cl,b
