A homogeneous circular disc has moment of inertia with respect to its center equal to 10...

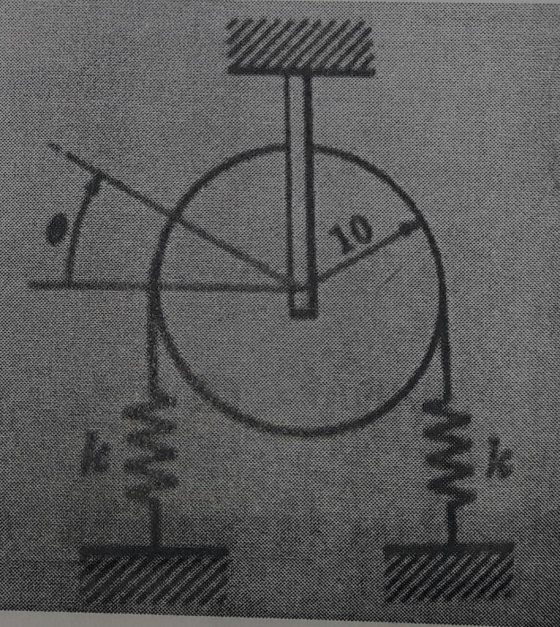

A
homogeneous circular disc has moment of inertia with respect to its
center equal to 10 lb-in-s². In the static equilibrium position,
both springs are stretched 1 in. Find the natural angular frequency
of the oscillation of the disc, when a small angular displacement
occurs and it is released. Consider the spring constant equal to k
= 10lb / in.

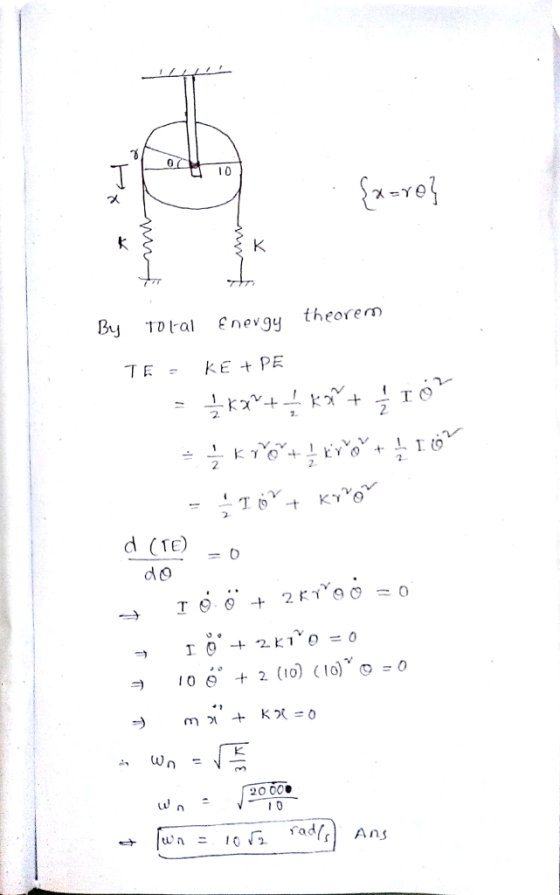

Homework Answers
