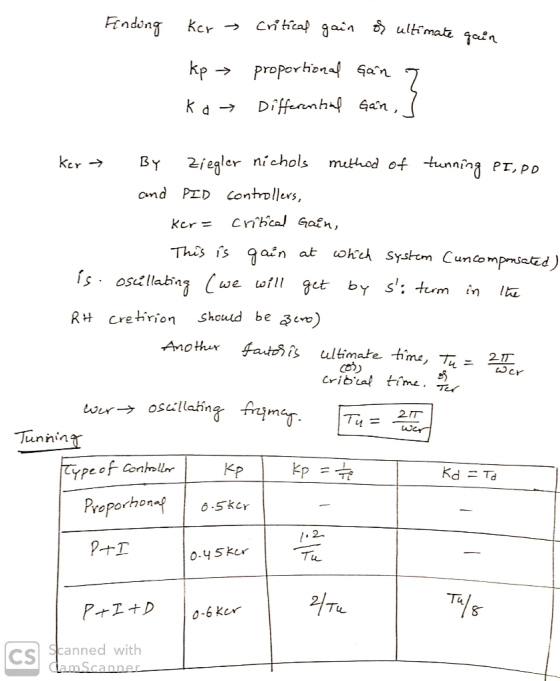

![Finding Kor critical gain of ultimate gain kp → kot proportional Differential gang gan, ] ker By Ziegler nichols method of tu](http://img.homeworklib.com/questions/dc26cf00-efc9-11eb-86b8-df1ec7bc482d.png?x-oss-process=image/resize,w_560)
Add Answer to:

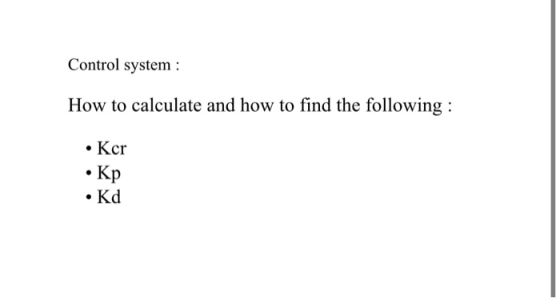

Control system : How to calculate and how to find the following: • Ker • Kp...
PROBLEMA: (25%) A closed-loop control system is shown below Ds) T(O) U(A) C(s) (a) Show that a proportional controller (C(s)-kp) will never make the closed-loop system stable. (8%) (Hint: you nee...
PROBLEMA: (25%) A closed-loop control system is shown below Ds) T(O) U(A) C(s) (a) Show that a proportional controller (C(s)-kp) will never make the closed-loop system stable. (8%) (Hint: you need to calculate the closed-loop pole locations and make discussion for the two possible cases.) (Medim) (b) When a PD controller is used (C(s)kp+ kps), calculate the steady state tracking error when both R(s) and D(s) are unit steps. (8%) (Easy) (e) Suppose R(s) is a unit step and D(s)...
For the closed-loop system shown, and given: Design a PD Controller i.e. where C(s)=Kp+Kds to satisfy the following specifications: For the closed-loop system shown, and given: 26.40 821.25 s+12.00...
For the closed-loop system shown, and given:
Design a PD Controller i.e. where C(s)=Kp+Kds to
satisfy the following specifications:
For the closed-loop system shown, and given: 26.40 821.25 s+12.00 Design a PD Controller i.e. where C(s) - Kp+ Kas to satisfy the following specifications: ess 0.11 to an input of Stref 4.2% :0.20 s Part A P Gain Find the P gain ie. Kp) vec Submit Request Answer Part B-D Gain Find the D gain Gie. Kd) vec Kd Submit...
For the closed-loop unity feedback system given below Kp - 350, Kd = 20. Find the...
For the closed-loop unity feedback system given below Kp - 350, Kd = 20. Find the maximum overshoot Mp? 1 S(+2)
this is from control lab IV. Given Kd-2 and Ki-5; When PID( Kd,Ki) command is executed, what will be the output value of Kp, Ki and Kd? V. In Ball and Beam system, given reference position of 200mm,...
this is from control lab
IV. Given Kd-2 and Ki-5; When PID( Kd,Ki) command is executed, what will be the output value of Kp, Ki and Kd? V. In Ball and Beam system, given reference position of 200mm, but ball stops at 160. Which parameter of PID need to be changed to attain the desired result.
IV. Given Kd-2 and Ki-5; When PID( Kd,Ki) command is executed, what will be the output value of Kp, Ki and Kd? V. In...
blem 5 (2000): The closed-loop system is given below. Controller El(s) ) (5% o) Find the system transfer function and discuss the range of Ko to make the stem stable assuming Kp-5. ) (5 %) Find t...
blem 5 (2000): The closed-loop system is given below. Controller El(s) ) (5% o) Find the system transfer function and discuss the range of Ko to make the stem stable assuming Kp-5. ) (5 %) Find the percentage of overshoot and steady state error to the unit ramp input as function of your design parameter Kp assuming KD-4. :) (5%) Find the design parameters KD and Kp such that the damping ratio of the closed- pop system is 0.5 and...
PD Controller Design 1 For the closed loop system shown, and given G(s) 35.20 s2+ 0.99 s+ 11.00 Design a PD Controller i.e. where C(s)-Kp + Kds to satisfy the following specifications t 0.03 s...
PD Controller Design 1 For the closed loop system shown, and given G(s) 35.20 s2+ 0.99 s+ 11.00 Design a PD Controller i.e. where C(s)-Kp + Kds to satisfy the following specifications t 0.03 s ts,1%-020 s K3 of 4 ( Qref Ω0ut C(s) plant control Part A-P Gain ▼ Find the P gain (i.e. Kp ) Submit Previous Answers Request Answer X Incorrect; Try Again Part B- D Gain Find the D gain (i.e. Kd)
PD Controller Design 1...
question b or the control system in Figure 1: C(s) Find the closed-loop transfer function T(s)-- R(s) a) b) Find a...
question b
or the control system in Figure 1: C(s) Find the closed-loop transfer function T(s)-- R(s) a) b) Find a value of Kp that will yield less than 15% overshoot for the closed-loop system. (Note: ignore the zero dynamics to calculate Kp initially). c IIsing vour K from nart h) write a MATI AR scrint that calculates the closedloon Motor Plant R(s)+ C(s) Controller 10 Kp (s+9) s2 +6s15 12 Figure 1: Unity feedback with PD control
or the...
3. The following step response of system with a proportional controller when Kp is set 10...
3. The following step response of system with a proportional controller when Kp is set 10 and Ki=Kd=0. Design a PID controller using Ziegler-Nichols ultimate cycle tuning method. Show all the formulas that you are using. a) (5 points) Tu b) (5 points) Ku d) (10 points) Kir 1 2 3 4 5 6 e) (10 points) Kd=
The diagram below shows a cruise control system for a car. VD (s) V(s) ms 89 (a) Find the open lo...
The diagram below shows a cruise control system for a car. VD (s) V(s) ms 89 (a) Find the open loop transfer function. (b) Find the closed loop transfer function. (c) This is a first order system, so make its closed loop transfer function fit the form: controller gain Kp. (d) If the desired speed is 60 mph and the actual speed is 55 mph, what is the error? A boat of mass m glides through the water, experiencing viscous...
For the closed-loop system shown, and given: 2.80 G(S) == 32+ 1.38 s+ 7.00 Design a...
For the closed-loop system shown, and given: 2.80 G(S) == 32+ 1.38 s+ 7.00 Design a PD Controller i.e. where C(s) = Kp + Kds to satisfy the following specifications: C(s) G(s) t = 0.01 s ts,1% = 0.19 s control plant Part A - P Gain Find the P gain (i.e. Kp) IVO AJ vec O O ? Kp = Submit Request Answer Part B - D Gain Find the D gain (i.e. Kd) O Ad Ovec mo ?...
PROBLEMA: (25%) A closed-loop control system is shown below Ds) T(O) U(A) C(s) (a) Show that a proportional controller (C(s)-kp) will never make the closed-loop system stable. (8%) (Hint: you need to calculate the closed-loop pole locations and make discussion for the two possible cases.) (Medim) (b) When a PD controller is used (C(s)kp+ kps), calculate the steady state tracking error when both R(s) and D(s) are unit steps. (8%) (Easy) (e) Suppose R(s) is a unit step and D(s)...
For the closed-loop system shown, and given:
Design a PD Controller i.e. where C(s)=Kp+Kds to
satisfy the following specifications:
For the closed-loop system shown, and given: 26.40 821.25 s+12.00 Design a PD Controller i.e. where C(s) - Kp+ Kas to satisfy the following specifications: ess 0.11 to an input of Stref 4.2% :0.20 s Part A P Gain Find the P gain ie. Kp) vec Submit Request Answer Part B-D Gain Find the D gain Gie. Kd) vec Kd Submit...
For the closed-loop unity feedback system given below Kp - 350, Kd = 20. Find the maximum overshoot Mp? 1 S(+2)
this is from control lab
IV. Given Kd-2 and Ki-5; When PID( Kd,Ki) command is executed, what will be the output value of Kp, Ki and Kd? V. In Ball and Beam system, given reference position of 200mm, but ball stops at 160. Which parameter of PID need to be changed to attain the desired result.
IV. Given Kd-2 and Ki-5; When PID( Kd,Ki) command is executed, what will be the output value of Kp, Ki and Kd? V. In...
blem 5 (2000): The closed-loop system is given below. Controller El(s) ) (5% o) Find the system transfer function and discuss the range of Ko to make the stem stable assuming Kp-5. ) (5 %) Find the percentage of overshoot and steady state error to the unit ramp input as function of your design parameter Kp assuming KD-4. :) (5%) Find the design parameters KD and Kp such that the damping ratio of the closed- pop system is 0.5 and...
PD Controller Design 1 For the closed loop system shown, and given G(s) 35.20 s2+ 0.99 s+ 11.00 Design a PD Controller i.e. where C(s)-Kp + Kds to satisfy the following specifications t 0.03 s ts,1%-020 s K3 of 4 ( Qref Ω0ut C(s) plant control Part A-P Gain ▼ Find the P gain (i.e. Kp ) Submit Previous Answers Request Answer X Incorrect; Try Again Part B- D Gain Find the D gain (i.e. Kd)
PD Controller Design 1...
question b
or the control system in Figure 1: C(s) Find the closed-loop transfer function T(s)-- R(s) a) b) Find a value of Kp that will yield less than 15% overshoot for the closed-loop system. (Note: ignore the zero dynamics to calculate Kp initially). c IIsing vour K from nart h) write a MATI AR scrint that calculates the closedloon Motor Plant R(s)+ C(s) Controller 10 Kp (s+9) s2 +6s15 12 Figure 1: Unity feedback with PD control
or the...
3. The following step response of system with a proportional controller when Kp is set 10 and Ki=Kd=0. Design a PID controller using Ziegler-Nichols ultimate cycle tuning method. Show all the formulas that you are using. a) (5 points) Tu b) (5 points) Ku d) (10 points) Kir 1 2 3 4 5 6 e) (10 points) Kd=
The diagram below shows a cruise control system for a car. VD (s) V(s) ms 89 (a) Find the open loop transfer function. (b) Find the closed loop transfer function. (c) This is a first order system, so make its closed loop transfer function fit the form: controller gain Kp. (d) If the desired speed is 60 mph and the actual speed is 55 mph, what is the error? A boat of mass m glides through the water, experiencing viscous...
For the closed-loop system shown, and given: 2.80 G(S) == 32+ 1.38 s+ 7.00 Design a PD Controller i.e. where C(s) = Kp + Kds to satisfy the following specifications: C(s) G(s) t = 0.01 s ts,1% = 0.19 s control plant Part A - P Gain Find the P gain (i.e. Kp) IVO AJ vec O O ? Kp = Submit Request Answer Part B - D Gain Find the D gain (i.e. Kd) O Ad Ovec mo ?...
