Homework Answers
(a)135.46.63.10
Find network address using bit mask 255.255.252.0 (22 bit bit massk)
| 135.46.63.10 | 1 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | . | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 0 | . | 0 | 0 | 1 | 1 | 1 | 1 | 1 | 1 | . | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 0 |
| 255.255.252.0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | . | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | . | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | . | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | . | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 0 | . | 0 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | . | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
network address =135.46.60.0
So longest matching network address with same bit mask in routing table is 135.46.60.0
So 135.46.63.10 is forwarded to interface 1
(b) 135.46.57.14
Find network address using bit mask 255.255.252.0 (22 bit bit massk)
| 135.46.57.14 | 1 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | . | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 0 | . | 0 | 0 | 1 | 1 | 1 | 0 | 0 | 1 | . | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 0 |
| 255.255.252.0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||
| 1 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 0 | 1 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
network address =135.46.56.0
So longest matching network address with same bit mask in routing table is 135.46.56.0
So 135.46.57.14 is forwarded to interface 0
(c)135.46.52.2
Find network address using bit mask 255.255.252.0 (22 bit bit massk)
| 135.46.52.2 | 1 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | . | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 0 | . | 0 | 0 | 1 | 1 | 0 | 1 | 0 | 0 | . | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
| 255.255.252.0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | . | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | . | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | . | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | . | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 0 | . | 0 | 0 | 1 | 1 | 0 | 1 | 0 | 0 | . | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
network address =135.45.52.0. It dose not matche the network addresses of the first three rows in routing table. The packet will be forwarded to default gateway Router 2.
(d). 192.53.40.7
By finding network address using bit mask 255.255.254.0 (23 bit bit
massk),we get network address as 192.53.40.0. It matches the
network address of the third row. The packet will be forwarded to
Router 1.
(e)192.53.56.7
By finding network address using bit mask 255.255.254.0 (23 bit bit massk),we get network address as 192.53.40.0. t dose not matche the network addresses of the first three rows in routing table. The packet will be forwarded to default gateway Router 2.
Add Answer to:

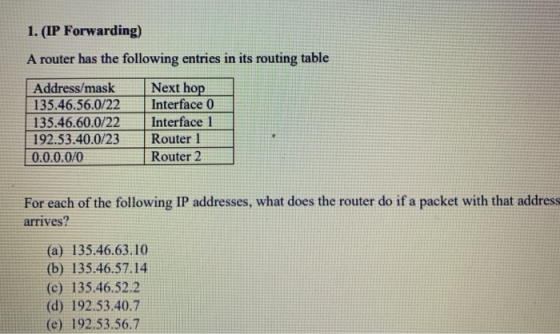

1. (IP Forwarding) A router has the following entries in its routing table Address/mask 135.46.56.0/22 135.46.60.0/22...
