For the purple section shown below, determine the orientation of the principal centroidal axes in degrees...
For the purple section shown below, determine the orientation of the principal centroidal axes in degrees and the principal centroidal moments of inertia in mm. The thickness of each rectangle is 15...
For the purple section shown below, determine the orientation of the principal centroidal axes in degrees and the principal centroidal moments of inertia in mm. The thickness of each rectangle is 15 mm. Use Mohr's Circle. (For θ0, enter the value with the smallest magnitude.) 570 im 545 mmi 585 mm x555 mm x" 585 mm 570 mm mm4 max
For the purple section shown below, determine the orientation of the principal centroidal axes in degrees and the principal centroidal...

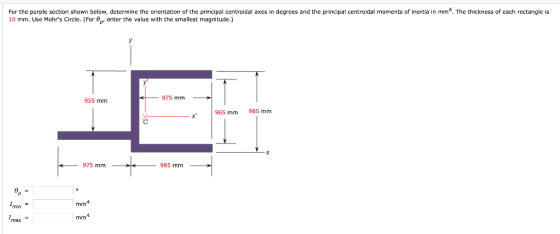

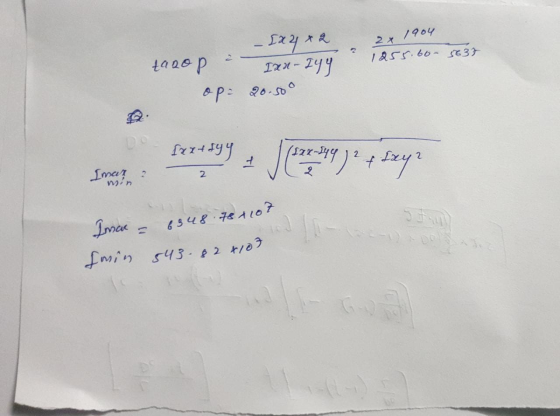

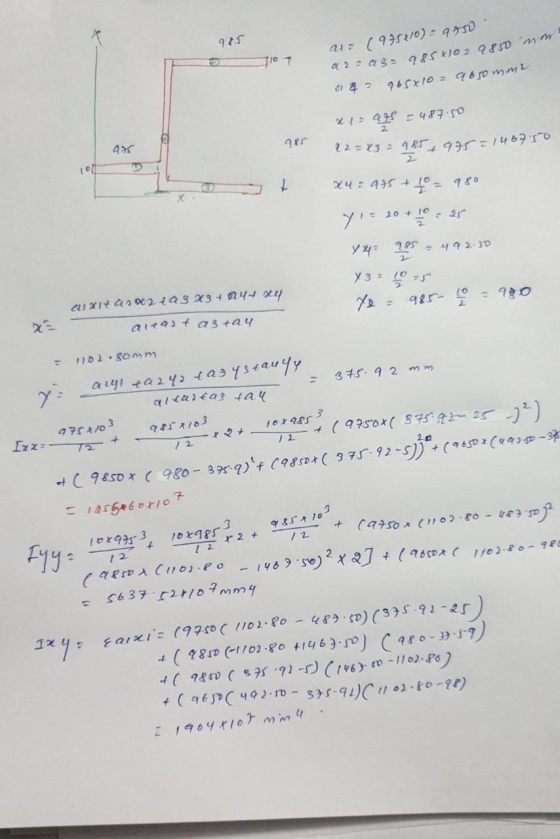

For the purple section shown below, determine the orientation of the principal centroidal axes in degrees and the principal centroidal moments of inertia in mm4. The thickness of each rectangle is 10...
For the purple section shown below, determine the orientation of
the principal centroidal axes in degrees and the principal
centroidal moments of inertia in mm4. The thickness of
each rectangle is 10 mm. Use Mohr's Circle.
650 mm 630 mm 660 mm 640 mm 650 mm 660 mm mm4 min mm4 Imax =
650 mm 630 mm 660 mm 640 mm 650 mm 660 mm mm4 min mm4 Imax =
For the thick angle cross-section shown below, use Mohr's Circle to determine the orientation of ...
For the thick angle cross-section shown below, use Mohr's Circle to determine the orientation of the principal centroidal axes in degrees and the principal moments of inertia associated with these principal axes in mm. (For,' enter the value with the smallest magnitude.) 143 mm 79 mm 143 mm 79 mm min max mm4 Transcript Request_Form From EPCC (1).pdf
For the thick angle cross-section shown below, use Mohr's Circle to determine the orientation of the principal centroidal axes in degrees and...
For the cross-section of the angle shown below, use Mohr's Circle to determine the orientation of...
For the cross-section of the angle shown below, use Mohr's
Circle to determine the orientation of the centroidal principal
axes in degrees and the principal moments of inertia associated
with the centroidal principal axes in in4. (For
θp, enter the value with the smallest
magnitude.)
6.9 in
3.3 in
3.3 in
6.9 in
θp = °
Imin = in4
Imax = in4
3.3 in 6.9 in 3.3 in 6.9 in e34 min312.498 max827.428xin4 in
For the thick angle cross-section shown below, use Mohr's Circle to determine the orientation of the...
For the thick angle cross-section shown below, use Mohr's Circle to determine the orientation of the principal centroidal axes in degrees and the principal moments of inertia associated with these principal axes in mm^4. (For theta_p, enter the value with the smallest magnitude.) theta_p = degree I_min = mm^4 I_max = mm^4
The lovely blue rectangle has a base of 35 mm and a height of 67 mm....
The lovely blue rectangle has a base of 35 mm and a height of 67 mm. Determine the orientation of the principal axes with their origin at O in degrees and the principal moments of inertia in mm4. (For 8p, enter the value with the smallest magnitude.) 2o riiin The baby blue ectangle has a base of 8.7 in and a height of 3.0 n Use Mohr's Circle to determine the orientation of the principal axes with the origin at...
For the cross-section of the angle shown below, use Mohr's Circle to determine the orientation of...
For the cross-section of the angle shown below, use Mohr's Circle to determine the orientation of the principal axes with origin O in degrees and the principal moments of inertia associated with these principal axes in in 4. (For e enter the value with the smallest magnitude.) 18.9 in 6.3 in >6.3 in 18.9 in- > Imax =
Determine the orientation of the principal axes with their origin at O in degrees and the corresp...
Determine the orientation of the principal axes with their
origin at O in degrees and the corresponding principal moments of
inertia in mm4 for the lavender angle section shown
below.
33 mm
12 mm
33 mm
12 mm
θp = °
Iu = mm4
Iv = mm4
y' 33 mm x" 12 Hun 12 Hun 33 mm iirI iirI
y' 33 mm x" 12 Hun 12 Hun 33 mm iirI iirI
Determine the orientation of the principal axes having an origin at point C, and the principal...
Determine the orientation of the principal axes having an origin
at point C, and the principal moments of inertia of the cross
section about these axes. Solve this without using
Mohr’s circle
1. Determine the orientation of the principal axes having an origin at point C, and the principal moments of inertia of the cross section about these axes. Solve this: a) without using Mohr’s circle b) using Mohr's circle (Quantities found in the first part of the question can...
Determine the orientation of the principal axes with their origin at O in degrees and the...
Determine the orientation of the principal axes with their origin at O in degrees and the corresponding principal moments of inertia in mm for the lavender angle section shown below 56 mm 18 mm 18 mm 6 mm -2052738 295x mm 1,-705037 7553xmm
For the purple section shown below, determine the orientation of the principal centroidal axes in degrees and the principal centroidal moments of inertia in mm. The thickness of each rectangle is 15 mm. Use Mohr's Circle. (For θ0, enter the value with the smallest magnitude.) 570 im 545 mmi 585 mm x555 mm x" 585 mm 570 mm mm4 max
For the purple section shown below, determine the orientation of the principal centroidal axes in degrees and the principal centroidal...
For the purple section shown below, determine the orientation of
the principal centroidal axes in degrees and the principal
centroidal moments of inertia in mm4. The thickness of
each rectangle is 10 mm. Use Mohr's Circle.
650 mm 630 mm 660 mm 640 mm 650 mm 660 mm mm4 min mm4 Imax =
650 mm 630 mm 660 mm 640 mm 650 mm 660 mm mm4 min mm4 Imax =
For the thick angle cross-section shown below, use Mohr's Circle to determine the orientation of the principal centroidal axes in degrees and the principal moments of inertia associated with these principal axes in mm. (For,' enter the value with the smallest magnitude.) 143 mm 79 mm 143 mm 79 mm min max mm4 Transcript Request_Form From EPCC (1).pdf
For the thick angle cross-section shown below, use Mohr's Circle to determine the orientation of the principal centroidal axes in degrees and...
For the cross-section of the angle shown below, use Mohr's
Circle to determine the orientation of the centroidal principal
axes in degrees and the principal moments of inertia associated
with the centroidal principal axes in in4. (For
θp, enter the value with the smallest
magnitude.)
6.9 in
3.3 in
3.3 in
6.9 in
θp = °
Imin = in4
Imax = in4
3.3 in 6.9 in 3.3 in 6.9 in e34 min312.498 max827.428xin4 in
For the thick angle cross-section shown below, use Mohr's Circle to determine the orientation of the principal centroidal axes in degrees and the principal moments of inertia associated with these principal axes in mm^4. (For theta_p, enter the value with the smallest magnitude.) theta_p = degree I_min = mm^4 I_max = mm^4
The lovely blue rectangle has a base of 35 mm and a height of 67 mm. Determine the orientation of the principal axes with their origin at O in degrees and the principal moments of inertia in mm4. (For 8p, enter the value with the smallest magnitude.) 2o riiin The baby blue ectangle has a base of 8.7 in and a height of 3.0 n Use Mohr's Circle to determine the orientation of the principal axes with the origin at...
For the cross-section of the angle shown below, use Mohr's Circle to determine the orientation of the principal axes with origin O in degrees and the principal moments of inertia associated with these principal axes in in 4. (For e enter the value with the smallest magnitude.) 18.9 in 6.3 in >6.3 in 18.9 in- > Imax =
Determine the orientation of the principal axes with their
origin at O in degrees and the corresponding principal moments of
inertia in mm4 for the lavender angle section shown
below.
33 mm
12 mm
33 mm
12 mm
θp = °
Iu = mm4
Iv = mm4
y' 33 mm x" 12 Hun 12 Hun 33 mm iirI iirI
y' 33 mm x" 12 Hun 12 Hun 33 mm iirI iirI
Determine the orientation of the principal axes having an origin
at point C, and the principal moments of inertia of the cross
section about these axes. Solve this without using
Mohr’s circle
1. Determine the orientation of the principal axes having an origin at point C, and the principal moments of inertia of the cross section about these axes. Solve this: a) without using Mohr’s circle b) using Mohr's circle (Quantities found in the first part of the question can...
Determine the orientation of the principal axes with their origin at O in degrees and the corresponding principal moments of inertia in mm for the lavender angle section shown below 56 mm 18 mm 18 mm 6 mm -2052738 295x mm 1,-705037 7553xmm
