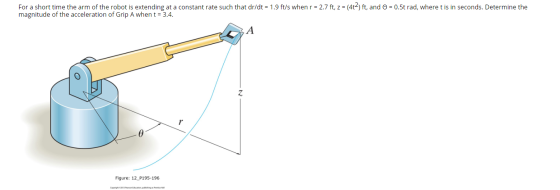

For a short time the arm of the robot is extending at a constant rate such that dr/dt = 1.9 ft/s when r = 2.7 ft, z = (412) f

engineering Mechanical-Engineering

Answer 1

Answer #1

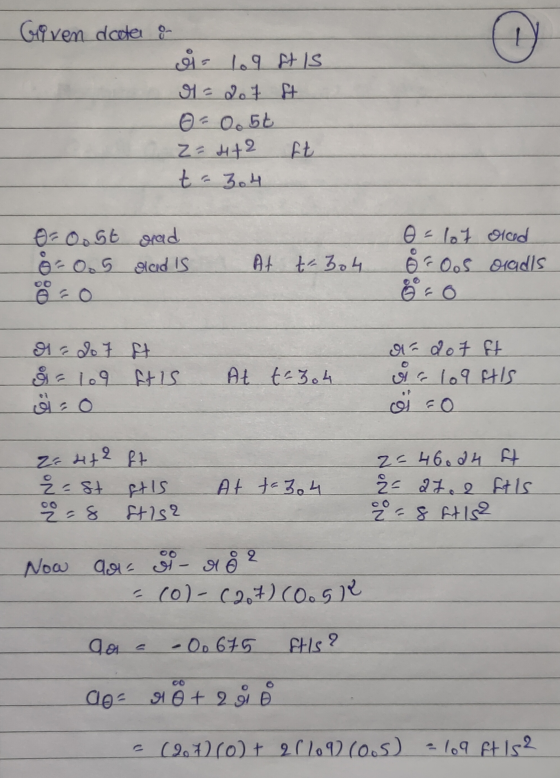

Please find below attached images for your solution.

I hope i am able to solve your problem ?.

Good luck and best wishes.

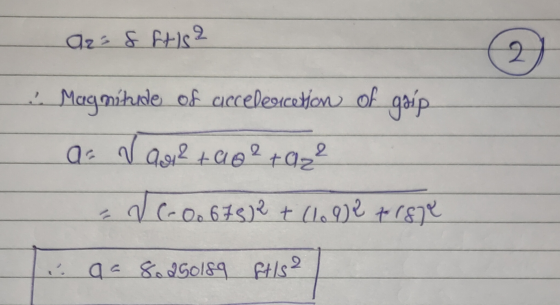

Az = f ftis? 2 2 Magnitude of acceleacetion of gaip Qui 2 ta g ² + az dc-00 678)2 + (109)2 + 1874 2 i aa 8.25olsa ft/s2

Answer 2

Similar Homework Help Questions

For a short time the arm of the robot is extending at a constant rate such...

For a short time the arm of the robot is extending at a constant rate such that dr/dt = 1.4 ft/s when r = 2.7 ft, z = (472) ft, and 0 = 0.5t rad, where t is in seconds. Determine the magnitude of the velocity of Grip A when t = 3.1. A z r Figure: 12_P195-196 Congs are urga maanil
A disk with an elevated hinged arm is rotating about the vertical z-axis. The arm has a sphere that slides along it. What is the magnitude of the acceleration of the sphere at the given time?

The disk A rotates about the vertical z-axis with a constant speed omega = dot theta = pi / 3 rad/s. Simultaneously, the hinged arm OB is elevated at the constant rate dot phi = 2pi / 3 rad/s. At time t = 0 both theta = 0 and phi = 0 The angle theta is measured from the fixed reference x-axis. The small sphere P slides out along the rod according to R = 50 + 200t2 where R...
