23. What is the value of the Relocation Register for Process 2? operating system 256000 process 2 Relocation Register 300040
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Question 23

Relocation is a base register which hold the smallest physical address

Here the value of relocation register for process P2 is 256000.

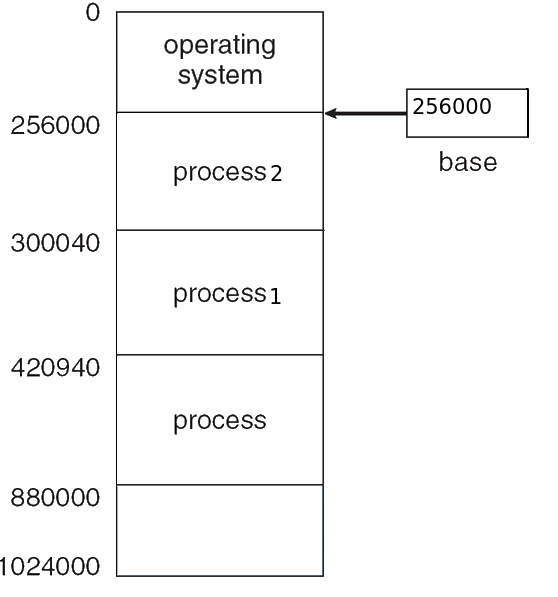

O operating system 256000 256000 process 2 base 300040 processi 420940 process 880000 1024000

The value in the relocation register is added to every address generated by a user process at the time it is sent to memory.

The user program deals with logical addresses; it never sees the real physical addresses

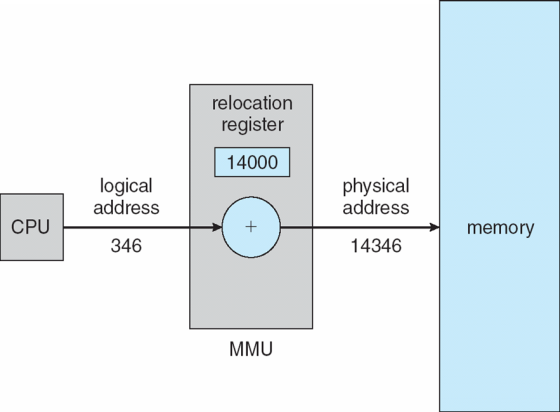

relocation register 14000 logical address physical address CPUH memory 346 14346 MMU

Question 24


Here there is a cycle which indicates the presence of deadlock
