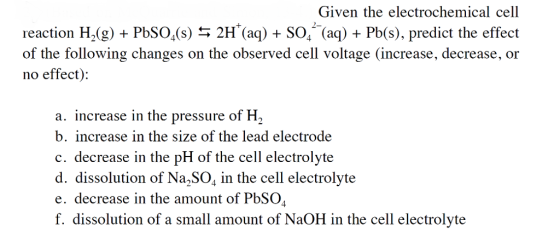

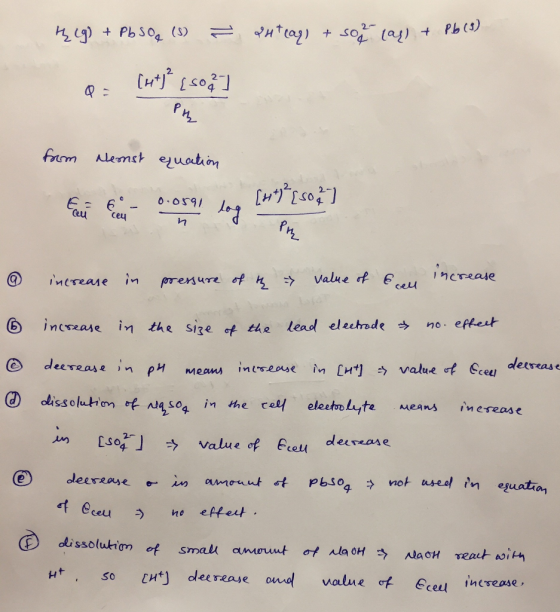

Given the electrochemical cell reaction H,(g) + PbSO,(s) 2H (a) +SO, (aq) Pb(s), predict the effect...
Pb2+(aq) + 2e− ⇌ Pb(s) E° = -0.126 V 2H+(aq) + 2e− ⇌ H2(g) E° =...
Pb2+(aq) + 2e− ⇌ Pb(s) E° = -0.126 V 2H+(aq) + 2e− ⇌ H2(g) E° = 0.000 V E°cell (in V)= 0.126 V 2. The electrochemical cell is comprised of a Pb electrode in a 1.67 × 100 M solution of Pb2+ (aq) coupled to a Pt electrode in a solution containing H+ (aq) where the pH of the solution is 0.37 and the partial pressure of H2(g) is 0.571 atm. The temperature of the cell is held constant at...
consider the electrochemical cell 2H^+ (aq)+ Cd(s) = Cd^2+ (aq) + H2(g) Ecell°=0.40 V what would...
consider the electrochemical cell 2H^+ (aq)+ Cd(s) = Cd^2+ (aq) + H2(g) Ecell°=0.40 V what would increase measured cell potential reducing H+ in hydrogen cell increasing the mass of the solid CD electrode reducing cd^2+ ion concentration increasing pressure of hydrogen gas in hydrogen cell none when 1.00kj(1000 j) of heat is added to 50.0 g of water how should the temp of the water change?
3. For the electrochemical cell: Pt(s) | H2(1 atm) | H'(I M)I| C u2(1 M) Cu(s),...
3. For the electrochemical cell: Pt(s) | H2(1 atm) | H'(I M)I| C u2(1 M) Cu(s), which one of the following changes will cause an increase in the cell voltage? A) Lower the H2(g) pressure. B) Increase the size/mass of the copper electrode. C) Lower the H (aq) concentration. D) Decrease the concentration of Cu* ion. E) None of the above. 2+
1.) Given the following notation for an electrochemical cell Pt(s) | H2(g) | H+(aq) || Ag+(aq)...
1.) Given the following notation for an electrochemical cell Pt(s) | H2(g) | H+(aq) || Ag+(aq) | Ag(s), what is the balanced overall (net) cell reaction? A. H2(g) + 2Ag(s) ® H+(aq) + 2Ag+(aq B. H2(g) + 2Ag+(aq) ® 2H+(aq) + 2Ag(s) C. H2(g) + Ag+(aq) ® H+(aq) + Ag(s D. 2H+(aq) + 2Ag(s) ® H2(g) + 2Ag+(aq) E. 2H+(aq) + 2Ag+(aq) ® H2(g) + 2Ag(s) 2.) Calculate E°cell for the following (nonspontaneous) reaction: Cd(s) + 2Fe3+(aq) ® 2Fe2+(aq) + Cd2+(aq) → A. -0.37...
G.1 Calculate DGo for the electrochemical cell: Pb(s) | Pb2+(aq) | H+(aq) H2(g) | Pt(s) -12...
G.1 Calculate DGo for the electrochemical cell: Pb(s) | Pb2+(aq) | H+(aq) H2(g) | Pt(s) -12 kJ/mol 0-24 kJ/mol +24 kJ/mol +12 kJ/mol -50 kJ/mol
calculate ecell for the following electrochemical cell at 25 C. Pt(s)| H2 (g,1.00 atm) | H+...
calculate ecell for the following electrochemical cell at 25 C. Pt(s)| H2 (g,1.00 atm) | H+ (aq, 1.00 M) || (Pb2+ (aq, 0.150 M) | Pb (s) Pb^2+(aq) + 2e- ---> Pb (s) Eo=-0.126 V 2H^+ (aq) + 2e- ---> H2 (g) Eo=0.00 V Thank you!
Separate galvanic cells are made from the following half-cells: cell 1: H+(aq)/H2(g) and Pb2+(aq)/Pb(s) cell 2:...
Separate galvanic cells are made from the following half-cells: cell 1: H+(aq)/H2(g) and Pb2+(aq)/Pb(s) cell 2: Fe2+(aq)/Fe(s) and Zn2+(aq)/Zn(s) Which of the following is correct for the working cells? Standard reduction potentials, 298 K, Aqueous Solution (pH = 0): Cl2(g) + 2e --> 2C1-(aq); E° = +1.36 V Fe3+(aq) + e --> Fe2+(aq); E° = +0.77 V Cu2+(aq) + 2e --> Cu(s); E° = +0.34 V 2H+(aq) + 2e --> H2(g); E° = 0.00 V Pb2+(aq) + 2e --> Pb(s);...
15. Consider the reaction occurring in a spontaneous electrochemical cell, starting with standard state conditions: Sn(s)...
15. Consider the reaction occurring in a spontaneous electrochemical cell, starting with standard state conditions: Sn(s) + 2H*(aq) → Snº(aq) + H2(g) Which of the following actions would cause the measured cell potential, Ecell, to be greater than Eºcell, (Ecell >Ecell) A. Reducing the mass of the Sn electrode B. Increasing the mass of the Sn electrode C. Increasing the Sn?* ion concentration in the anode compartment. D. Increasing the pressure of hydrogen gas in the hydrogen cell E. Lowering...
Question 12 Calculate Eº for an electrochemical cell based on the following overall reaction: 2H*(aq) +...
Question 12 Calculate Eº for an electrochemical cell based on the following overall reaction: 2H*(aq) + Cd(s) - H2(g) + Cd2+(aq) if Erd (Hº)=0.000 V and Exped (Cd2+) = -0.402 V. 0 -0.201 V 0 -0.402 V +0.402 V +0.201 V 0.000 V
Question 1 1 pts For the cell: Zn(s) + 2H+ (aq) + Zn2+(aq) + H2 (g)...
Question 1 1 pts For the cell: Zn(s) + 2H+ (aq) + Zn2+(aq) + H2 (g) If [Zn2+) = 1 M, PH2 = 1 atm, and E = 0.549 V what is pH? Question 2 1 pts Calculate the voltage for the following cell at 25° ZnZn+2 ( 2.832 M) || Cd2+ (0.027 M)| Cd
3. For the electrochemical cell: Pt(s) | H2(1 atm) | H'(I M)I| C u2(1 M) Cu(s), which one of the following changes will cause an increase in the cell voltage? A) Lower the H2(g) pressure. B) Increase the size/mass of the copper electrode. C) Lower the H (aq) concentration. D) Decrease the concentration of Cu* ion. E) None of the above. 2+
G.1 Calculate DGo for the electrochemical cell: Pb(s) | Pb2+(aq) | H+(aq) H2(g) | Pt(s) -12 kJ/mol 0-24 kJ/mol +24 kJ/mol +12 kJ/mol -50 kJ/mol
Separate galvanic cells are made from the following half-cells: cell 1: H+(aq)/H2(g) and Pb2+(aq)/Pb(s) cell 2: Fe2+(aq)/Fe(s) and Zn2+(aq)/Zn(s) Which of the following is correct for the working cells? Standard reduction potentials, 298 K, Aqueous Solution (pH = 0): Cl2(g) + 2e --> 2C1-(aq); E° = +1.36 V Fe3+(aq) + e --> Fe2+(aq); E° = +0.77 V Cu2+(aq) + 2e --> Cu(s); E° = +0.34 V 2H+(aq) + 2e --> H2(g); E° = 0.00 V Pb2+(aq) + 2e --> Pb(s);...
15. Consider the reaction occurring in a spontaneous electrochemical cell, starting with standard state conditions: Sn(s) + 2H*(aq) → Snº(aq) + H2(g) Which of the following actions would cause the measured cell potential, Ecell, to be greater than Eºcell, (Ecell >Ecell) A. Reducing the mass of the Sn electrode B. Increasing the mass of the Sn electrode C. Increasing the Sn?* ion concentration in the anode compartment. D. Increasing the pressure of hydrogen gas in the hydrogen cell E. Lowering...
Question 12 Calculate Eº for an electrochemical cell based on the following overall reaction: 2H*(aq) + Cd(s) - H2(g) + Cd2+(aq) if Erd (Hº)=0.000 V and Exped (Cd2+) = -0.402 V. 0 -0.201 V 0 -0.402 V +0.402 V +0.201 V 0.000 V
Question 1 1 pts For the cell: Zn(s) + 2H+ (aq) + Zn2+(aq) + H2 (g) If [Zn2+) = 1 M, PH2 = 1 atm, and E = 0.549 V what is pH? Question 2 1 pts Calculate the voltage for the following cell at 25° ZnZn+2 ( 2.832 M) || Cd2+ (0.027 M)| Cd
