It produces 1000 resistors with 10% tolerance in a production line. Resistance value X is the...

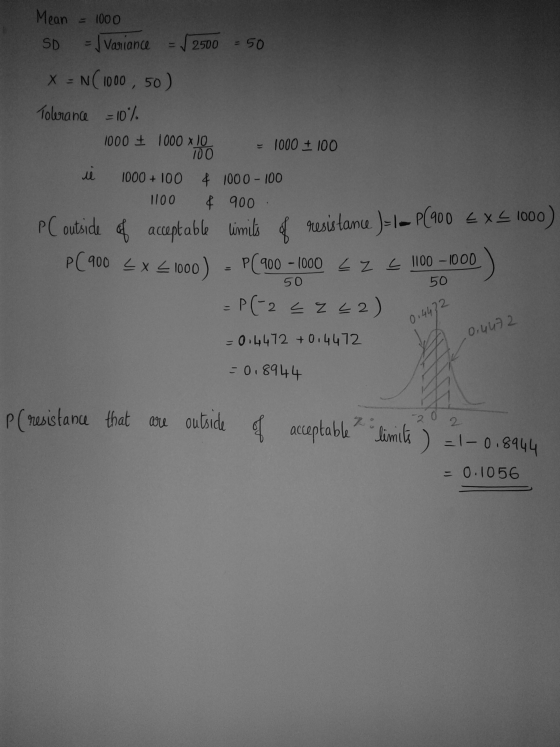

It produces 1000 resistors with 10% tolerance in a production line. Resistance value X is the gauss random variable with an expected value of 1000 and 2500 variations. Find the probability that a resistance will be outside of acceptable limits.
Homework Answers
Add Answer to:
It produces 1000 resistors with 10% tolerance in a production
line. Resistance value X is the...
Resistances. An automat produces resistors whose experience has shown that they are realizations of a normally...
Resistances. An automat produces resistors whose experience has shown that they are realizations of a normally distributed random variable with µ = 1000 Ω and σ = 20 Ω. Resistances outside the tolerance limits of 960 Ω and 1050 Ω count as rejects. 1. How many of 950 resistors are on the middle committee? 2. The proportion of resistors with a value greater than 1050 Ω should be reduced to an average of 0.1%. How large must µ be if...
Variance: A company produces several thousand nominally identical resistors each day. An operator tested a sample...
Variance: A company produces several thousand nominally identical resistors each day. An operator tested a sample of 100 resistors and obtained an average resistance of Ro=100 ohms with a standard deviation of S= 10 ohms. (a) If the operator discards 5% of the resistors as too high and another 5% as too low find the high and low acceptable limits? (b) What is the level of significance, level of confidence and the confidence interval for resistors having a value greater...
Page 16 Example: An electronic parts factory produces resistors. Assume the resistance follows a distribution with...
Page 16 Example: An electronic parts factory produces resistors. Assume the resistance follows a distribution with standard deviation 0.156 ohms. A random sample of 60 resistors has an average resistance of 0.45 ohms. The factory wishes to test that the population mean resistance is less than 0.5 ohms? a. Find the p-value b. Express the rejection region of the above test in terms of the sample mean. c. Find trpel error d. Find the probability of type II error if...
Required information The JMH Company manufactures resistors with an ideal resistance value of 400 ohms. A...
Required information The JMH Company manufactures resistors with an ideal resistance value of 400 ohms. A sample of 7000 resistors were tested and found to have a mean resistance of 391.5 ohms with a standard deviation of 31.7 ohms. Assume a normal distribution. Given a tolerance of ±10 percent, what is the probability that a particular resistor will be unusable? Round to four decimal places. The probability that a particular resistor will be unusable is
Please help. Part 3: Using the color coding for resistors, determine the resistance and the tolerance...
Please help.
Part 3: Using the color coding for resistors, determine the resistance and the tolerance for the following 3 resistors: exornn Rbolor coding: brown, black, yellow, gold Rgcolor coding: red, violet, orange, gold Rocolor coding: orange, orange, orange, gold The chage nowng thonuh a sece is every themes Find out the outest throsgh the sistance is diven e well se the colot code fur esch of the resistors 4-Band-Code 2%, 5%, 10% 560k Ω 5% 1ST BAND | 2ND...
10. Find the expected value of a random variable having the following probability distribution: x-3-1 |01|5
10. Find the expected value of a random variable having the following probability distribution: x-3-1 |01|5
[6] (10 points) n the circuit below, the resistance value of the resistor is a random...
[6] (10 points) n the circuit below, the resistance value of the resistor is a random variable such that R N(1,0.5). Determine and expression for the expected value of the voltage u (Note, solve the differential equation for the current and thus voltage, and then apply the solution presented in class for the expected value of an exponential function of a random variable.). i(t) 4 10u(t) V 1 H
Find the expected value for the random variable x whose probability function graph is displayed here. What...
Find the expected value for the random variable x whose
probability function graph is displayed here. What is
the expected value of the random variable?
Find the expected value for the random variable x whose probability function graph is displayed here. ULL 0 1 2 3 4 5 What is the expected value of the random variable? (Round to the nearest hundredth as needed.)
A random variable X has an expected value of 10 with a standard deviation of 5....
A random variable X has an expected value of 10 with a standard deviation of 5. Let Y= 5 -2*X be another random variable. Find the expected value of Y and its standard deviation
Let X be a random variable with probability density function fx= c1-x2, -1<x<10, &nb...
Let X be a random variable with probability density function fx= c1-x2, -1<x<10, otherwise What is the support of X? What is the value of c? Sketch the probability density function of X. Find P(X<0). Find P(X<0.5). Find P(X<2). Determine the expected value of X.
Page 16 Example: An electronic parts factory produces resistors. Assume the resistance follows a distribution with standard deviation 0.156 ohms. A random sample of 60 resistors has an average resistance of 0.45 ohms. The factory wishes to test that the population mean resistance is less than 0.5 ohms? a. Find the p-value b. Express the rejection region of the above test in terms of the sample mean. c. Find trpel error d. Find the probability of type II error if...
Required information The JMH Company manufactures resistors with an ideal resistance value of 400 ohms. A sample of 7000 resistors were tested and found to have a mean resistance of 391.5 ohms with a standard deviation of 31.7 ohms. Assume a normal distribution. Given a tolerance of ±10 percent, what is the probability that a particular resistor will be unusable? Round to four decimal places. The probability that a particular resistor will be unusable is
Please help.
Part 3: Using the color coding for resistors, determine the resistance and the tolerance for the following 3 resistors: exornn Rbolor coding: brown, black, yellow, gold Rgcolor coding: red, violet, orange, gold Rocolor coding: orange, orange, orange, gold The chage nowng thonuh a sece is every themes Find out the outest throsgh the sistance is diven e well se the colot code fur esch of the resistors 4-Band-Code 2%, 5%, 10% 560k Ω 5% 1ST BAND | 2ND...
10. Find the expected value of a random variable having the following probability distribution: x-3-1 |01|5
[6] (10 points) n the circuit below, the resistance value of the resistor is a random variable such that R N(1,0.5). Determine and expression for the expected value of the voltage u (Note, solve the differential equation for the current and thus voltage, and then apply the solution presented in class for the expected value of an exponential function of a random variable.). i(t) 4 10u(t) V 1 H
Find the expected value for the random variable x whose
probability function graph is displayed here. What is
the expected value of the random variable?
Find the expected value for the random variable x whose probability function graph is displayed here. ULL 0 1 2 3 4 5 What is the expected value of the random variable? (Round to the nearest hundredth as needed.)
