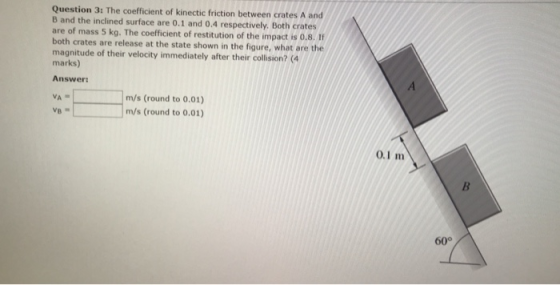

Question 3: The coefficient of kinectic friction between crates A and B and the inclined surface...

Question

Question

science physics

Answer 1

Answer #1

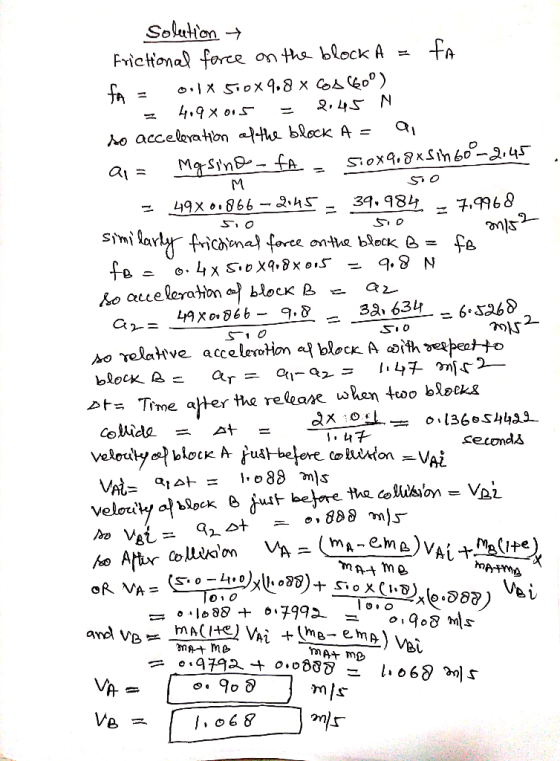

Solution + fa. Frictional force on the block A = fa = lx510x9.8 x cos(600) = 4,9 x 0.5 = 2.45 N to acceleration of the block

Answer 2
