Does changing the frequency value (between very low and very high frequencies) will affect the values in the bounce diagram? Explain your answer with suitable equation. (5 marks)jkdsjkjsdkjvd.PNG

0 0
Add a comment
Request Professional Answer

Request Answer!

We need at least 9 more requests to produce the answer.

1 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
electromagnetic
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coin

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
  • electromagnetic

    The red wire rectangular loop shown in Figure 1.1 is inside a uniform magnetic field ???⃗=50??⃗??+50??⃗?? mWb/m2. The side ???? of the loop cuts the flux lines at the frequency, ?? (in unit Hz) and the loop lies in the ????-plane at time, t = 0.a) Find the induced current at the resistor 1 Ω. (10 marks)b) By keeping the size of AB, BC, CD, and DA, suggest three the methods to increase the amplitude of the induced current? Explain...

  • Problem 11.37 A system has a transfer function H(S)= 72 +85 +4 (a) (b) In a...

    Problem 11.37 A system has a transfer function H(S)= 72 +85 +4 (a) (b) In a magnitude Bode diagram of its frequency response what are the values of all the corner frequencies (in radians/second)? What is the slope (in dB/decade) of the magnitude Bode diagram at very low frequencies (approaching zero)? What is the slope (in dB/decade) of the magnitude Bode diagram at very high frequencies (approaching infinity)? (c)

  • Student number: 40252516 since its needed to solve the questions. my student number is 40252516 its...

    Student number: 40252516 since its needed to solve the questions. my student number is 40252516 its needed to solve the questions. 1. Design a first order active low-pass filter with a voltage gain at low frequencies equal to (the last digit in your student number +12) and a cut-off frequency in Hz equal to your student number with the first two digits omitted. [2 marks] 2. Design a first order active high-pass filter with a voltage gain at high frequencies...

  • does the frequency distribution appear to have a normal distribution using the strict interpretation of the...

    does the frequency distribution appear to have a normal distribution using the strict interpretation of the relevant criteria? Do Homework - Allisha Charles - Google Chrome mathxl.com/Student/PlayerHomework.aspx?homeworkid=552316459&questionid=1&flushed=false&cid=5814415&centerwinyes 2020 Q1Math 245 F-03 Allisha Charles & T 01/20 Homework: Section 2.1 Score: 0 of 1 pt 5 of 14 (9 complete) HW Score: 57.86% 2.1.10 Quest Does the frequency distribution appear to have a normal distribution? Explain. Frequency Frequency Temperature (°F) 40-44 45-49 50-54 55-59 Temperature (°F) 60-64 65-69 70-74 Choose the...

  • electromagnetic

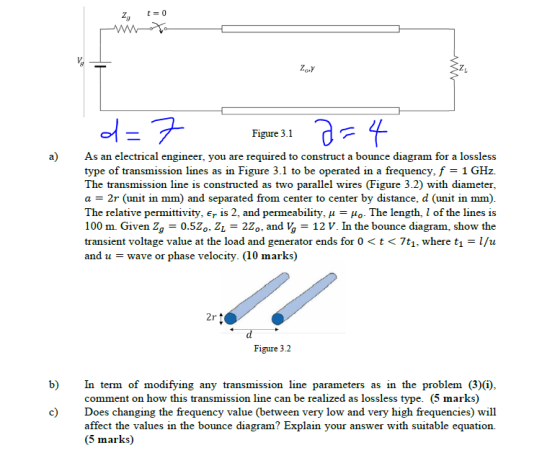

    As an electrical engineer, you are required to construct a bounce diagram for a lossless type of transmission lines as in Figure 3.1 to be operated in a frequency, ??=1 GHz. The transmission line is constructed as two parallel wires (Figure 3.2) with diameter, ??=2?? (unit in mm) and separated from center to center by distance, ?? (unit in mm). The relative permittivity, ???? is 2, and permeability, ??=????. The length, ?? of the lines is 100 m. Given ????=0.5????,...

  • The illustration shows the spectrum of electromagnetic radiation emitted by a blackbody at two different Kelvin...

    The illustration shows the spectrum of electromagnetic radiation emitted by a blackbody at two different Kelvin temperatures. The range of visible frequencies (those that can be detected by the human eye) is also shown. (a) No matter what the value of the Kelvin temperature T, the spectrum decreases to zero at very high frequencies. Why is this? (i) At very high frequencies the photon energy is very small compared to kT. (ii) At very high frequencies the photon energy is...

  • Identify the class? width, class? midpoints, and class boundaries for the given frequency distribution. Full data...

    Identify the class? width, class? midpoints, and class boundaries for the given frequency distribution. Full data set Daily Low Temperature ?(degrees ?F) Frequency 45 dash 47 1 48 dash 50 3 51 dash 53 5 54 dash 56 11 Daily Low Temperature ?(degrees ?F) Frequency 57 dash 59 7 60 dash 62 7 63 dash 65 1 What is the class? width? Question #2 Does the frequency distribution appear to have a normal? distribution? Explain. Temperature ?(degrees ?F) Frequency 35...

  • WITHIN THE LOW TO HIGH FREQUENCIES WHAT ARE THE RELATIONSHIPS IN BETWEEN WAVE AND GAIN FREQUENCY...

    WITHIN THE LOW TO HIGH FREQUENCIES WHAT ARE THE RELATIONSHIPS IN BETWEEN WAVE AND GAIN FREQUENCY SPECTRUM AND HOW IT WOULD AFFECT THE EFFECIENCIES? PLEASE USE MATHEMATICAL DERIVATIONS ALONG WITH CONCEPTS EXPLAINED HOW DOES THIS CAN BE RELATED TO THE BITS AND BYTES OF PACKETS AND SERIALS?

  • The capacitor in the figure below is designed to filter low-frequency signals, impeding their transmission between...

    The capacitor in the figure below is designed to filter low-frequency signals, impeding their transmission between circuits. Circuit Circuit Signal (a) What capacitance is needed to produce a 174 k12 reactance at a frequency of 191 Hz? nF (b) What would its reactance be at 1.00 MHz? (c) What are the implications of your answers to (a) and (b)? (Select all that apply.) High frequencies transmit better than low ones. Reactance is larger at high frequencies. Low frequencies transmit better...
