The 50-kg crate shown in Fig. 13- rests on a horizontal plane for which the coefficient...
The 50-kg crate shown in Fig. 13-6a rests on a horizontal surface for which the coefficient...

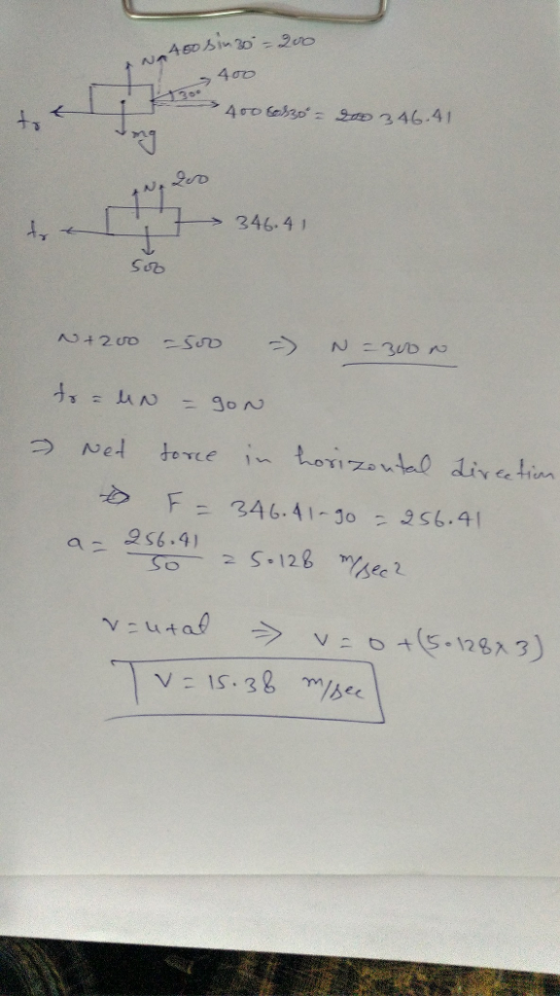

The 50-kg crate shown in Fig. 13-6a rests on a horizontal surface for which the coefficient of kinetic friction is Mik = 0.3. If the crate is subjected to a 400-N towing force as shown, determine the velocity of the crate in 3 s starting from rest. P= 400 N 30° Rolles in Portfolio
A 27 kg crate rests on a floor. A horizontal pulling force of 110 N is...
A 27 kg crate rests on a floor. A horizontal pulling force of 110 N is needed to move the crate with a constant velocity. What is the coefficient of kinetic friction between the crate and the floor?
A 5.0 kg crate is resting on a horizontal plank. The coefficient of static friction is...
A 5.0 kg crate is resting on a horizontal plank. The coefficient of static friction is 0.50 and the coefficient of kinetic friction is 0.40. One end of the plank is raised so the plank makes an angle of 30° with the horizontal. Find the minimum force that can be applied parallel to the plane to hold the crate at rest. a. 4.49N b. 0 c. 2.29N d. 3.29N e. 5.59N
QESTION 3 (a) If the coefficient of kinetic friction between the 50 kg crate shown in...
QESTION 3 (a) If the coefficient of kinetic friction between the 50 kg crate shown in Figure Q3(a) and the ground is u = 0.18, determine the speed of the crate and its displacement when time t = 2 s. The crate starts from rest and is towed by the 40 kg force. (8 marks) 40 kg 30° Figure Q3(a)
2. Fig. Q2 shows a 50 kg crate sliding down a 30° incline plane and eventually...
2. Fig. Q2 shows a 50 kg crate sliding down a 30° incline plane and eventually stopped by a bumper with spring constant k. The kinetic coefficient of between the crate and the floor is Mk = 0.33. At the moment shown, the crate has a velocity of 2.5 m/s. 50 kg 4 = 0 33 Bumper 30° 4.3 m ww 1.5 m Fig. 22 (1) Write the work and energy equation and use it to determine the velocity of...
4. + -/0.9 points A 29.kg crate rests on a horizontal floor, and a 63-kg person...
4. + -/0.9 points A 29.kg crate rests on a horizontal floor, and a 63-kg person is standing on the crate. (a) Determine the magnitude of the normal force that the floor exerts on the crate. (b) Determine the magnitude of the normal force that the crate exerts on the person. Additional Materials Section 4.9 5. -/0.9 points A 53.0-kg crate rests on a level floor at a shipping dock. The coefficients of static and kinetic friction are 0.780 and...
A 313-kg crate rests on a surface that is inclined above the horizontal at an angle...
A 313-kg crate rests on a surface that is inclined above the horizontal at an angle of 17.0°. A horizontal force (magnitude = 414 N and parallel to the ground, not the incline) is required to start the crate moving down the incline. What is the coefficient of static friction between the crate and the incline?
If the 50-kg crate starts from rest and travels a distance of 6 m up the plane in 4 s
If the 50-kg crate starts from rest and travels a distance of 6 m up the plane in 4 s, determine the magnitude of force P acting on the crate. The coefficient of kinetic friction between the crate and the ground is μk = 0.25.
15. A 12-kg crate rests on a horizontal surface and a boy pulls on it with...
15. A 12-kg crate rests on a horizontal surface and a boy pulls on it with a force that is 30° below the horizontal. If the coefficient of static friction is 0.40, the minimum magnitude force he needs to start the crate moving is: A) 44 N B) 47 N C) 54 N D) 56 N E) 71 N
Work on a sliding crate. A worker pushes a 47.0 Kg crate across a level horizontal...
Work on a sliding crate. A worker pushes a 47.0 Kg crate across a level horizontal floor by applying a constant force of exactly 150.0 N at an angle of 23.0 degrees below the horizontal. The crate begins at rest and ends 15.0m from where it started traveling at 2.6m/s A. What is the work done by the applied force as the crate moves across the floor? B What is the work done by the friction force as the crate...
The 50-kg crate shown in Fig. 13-6a rests on a horizontal surface for which the coefficient of kinetic friction is Mik = 0.3. If the crate is subjected to a 400-N towing force as shown, determine the velocity of the crate in 3 s starting from rest. P= 400 N 30° Rolles in Portfolio
A 27 kg crate rests on a floor. A horizontal pulling force of 110 N is needed to move the crate with a constant velocity. What is the coefficient of kinetic friction between the crate and the floor?
QESTION 3 (a) If the coefficient of kinetic friction between the 50 kg crate shown in Figure Q3(a) and the ground is u = 0.18, determine the speed of the crate and its displacement when time t = 2 s. The crate starts from rest and is towed by the 40 kg force. (8 marks) 40 kg 30° Figure Q3(a)
2. Fig. Q2 shows a 50 kg crate sliding down a 30° incline plane and eventually stopped by a bumper with spring constant k. The kinetic coefficient of between the crate and the floor is Mk = 0.33. At the moment shown, the crate has a velocity of 2.5 m/s. 50 kg 4 = 0 33 Bumper 30° 4.3 m ww 1.5 m Fig. 22 (1) Write the work and energy equation and use it to determine the velocity of...
4. + -/0.9 points A 29.kg crate rests on a horizontal floor, and a 63-kg person is standing on the crate. (a) Determine the magnitude of the normal force that the floor exerts on the crate. (b) Determine the magnitude of the normal force that the crate exerts on the person. Additional Materials Section 4.9 5. -/0.9 points A 53.0-kg crate rests on a level floor at a shipping dock. The coefficients of static and kinetic friction are 0.780 and...
15. A 12-kg crate rests on a horizontal surface and a boy pulls on it with a force that is 30° below the horizontal. If the coefficient of static friction is 0.40, the minimum magnitude force he needs to start the crate moving is: A) 44 N B) 47 N C) 54 N D) 56 N E) 71 N
