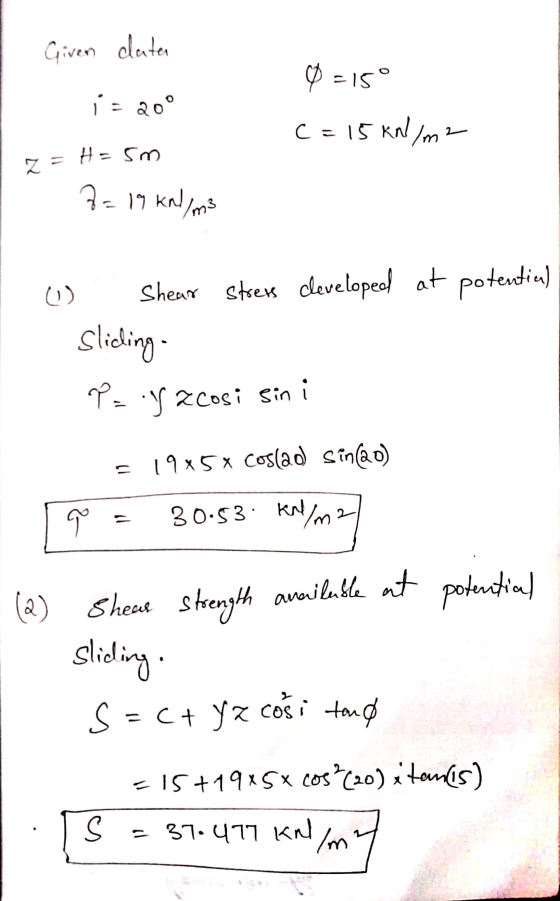

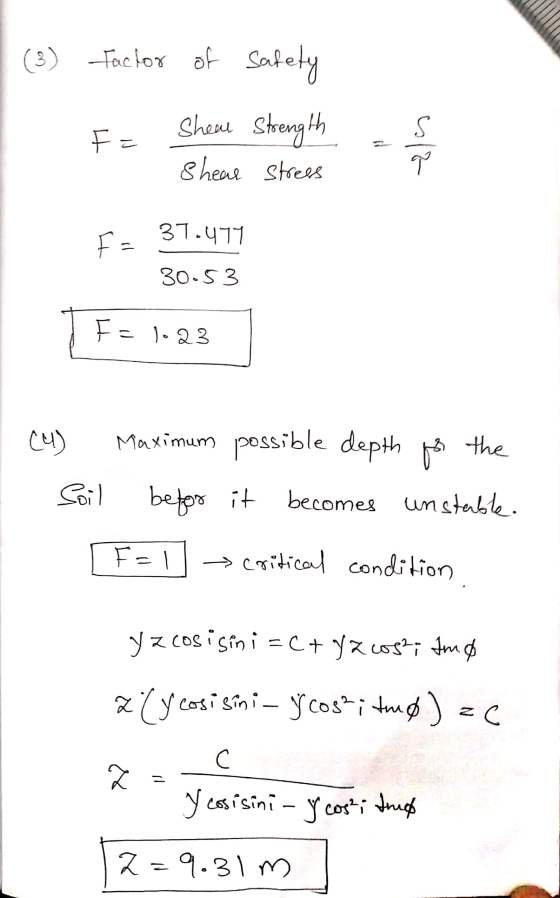

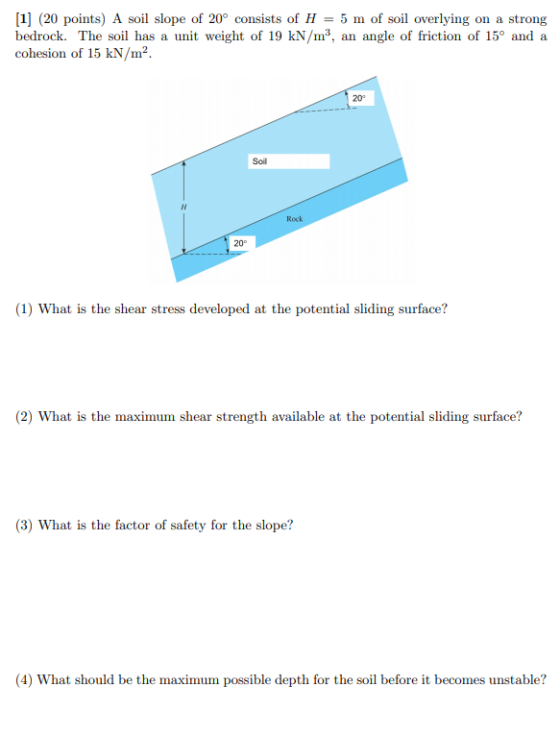

![[1] (20 points) A soil slope of 20° consists of H = 5 m of soil overlying on a strong bedrock. The soil has a unit weight of](http://img.homeworklib.com/questions/3ddf2b90-f48f-11eb-9c6f-f786e967cea7.png?x-oss-process=image/resize,w_560)
Homework Answers
In the figure below, the natural soil profile consists of sand overlying clay overlying sand overlying bedrock. A water...
In the figure below, the natural soil profile consists of sand
overlying clay overlying sand overlying bedrock. A
water table is present 1 m beneath the surface of the natural
ground. If 4 m of consistent fill material (γfill = 15
kN/m3) was placed on top of this soil profile that covered a
large area, determine:
(a) The consolidation settlement of the clay layer (using 4
equal layers in your calculation), and
(b) The time (in days) for this consolidation...
Q8 An oil tank, 20 m in diameter, is to be built on a site where the soil profile consists of 4 m of dense gravel overl...
Q8 An oil tank, 20 m in diameter, is to be built on a site where the soil profile consists of 4 m of dense gravel overlying 3 m of clay overlying rigid impermeable rock, and the water table is 1 m below the soil surface. If the tank applies a uniform pressure of 100 kPa to the surface of the soil calculate the differential settlement between the centre and perimeter of the tank after 1 year and after many...
5, A soil element inside a 20° natural soil slope carries total vertical stress (%) of...
5, A soil element inside a 20° natural soil slope carries total vertical stress (%) of 140 kPa, total horizontal stress (on) of 80 kPa and shear stress (Tvh) of 15 kPa Canticlockwise shear stress on vertical plane). The pore-water pressure (u) inside the element is 30 kPa. The critical state angle of friction of the soil is 30o and its undrained shear strength is 40 kPa. (a) Draw the Mohr's stress circles for this element in terms of total...
. A long natural slope in fissured overconsolidated clay is inclined to the horizontal with an...
. A long natural slope in fissured overconsolidated clay is inclined to the horizontal with an angle =15 o . The saturated unit weight of clay is 18 kN/m3 . The water table is at the surface and the seepage is roughly parallel to the slope. A slip has developed on a plane parallel to the surface at the depth of 4.0 m. Find the factor of safety along the slip plane, for the following two cases: a. Peak shear...
(5 points) 6. A soil profile consists of 4 ft of organic soil (a 75 pe)...
(5 points) 6. A soil profile consists of 4 ft of organic soil (a 75 pe) over a uniform soft clay layer. For the clay y 120 pcf and, ?'/o 1.0 The water table is at the ground surface. For a clay element A, at the depth of 10 feet from the ground surface (6 feet into the soft clay) compute the following Assume a wide fill, thickness 7 feet, ? 105 pcf is placed over the surface of the...
soil 3m 1 1 Q2)-A - Calculate the shearing strength along plane at 7 m in...
soil
3m 1 1 Q2)-A - Calculate the shearing strength along plane at 7 m in coarse sand soil , the ground water table is at depth of 3 m below the surface .the bulk density of soil above the water table is Yo=18.9 kN/m3 and the saturated density below ground water table is 20.5 kN/m². The angle of internal friction of the sand is 32° GS Yo = 18.9 kN/m3 GWT Ysat. = 20.5 kN/m B) A Q =...
The figure shows an element of soil at the interface between two dry sand layers on a a-32° slope...
The figure shows an element of soil at the interface between two dry sand layers on a a-32° slope The interface is d=7 m below the ground surface and ror both sand layers the friction angle is φ=30, and Ko= 0.41 Assume that the shear stress is zero on both the vertical and horizontal planes. Va1 (dry unit weight of sand layer 1) - 19 kN/m3 Ys2 (dry unit weight of sand layer 2) 20 kN/m Dry Sand (Yai Dry...
Soil mechanics Q2)-A - Calculate the shearing strength along plane at 7 m in coarse sand...
Soil mechanics
Q2)-A - Calculate the shearing strength along plane at 7 m in coarse sand soil , the ground water table is at depth of 3 m below the surface the bulk density of soil above the water table is Xb=18.9 kN/m3 and the saturated density below ground water table is 20.5 kN/m². The angle of internal friction of the sand is 320 1 GS 3m 1 4 m Yo = 18.9 kN/m2 GWT Ysat. = 20.5 kN/m2 B)...
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y...
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y 14.0 kN/m3 3.0 m Sand Y 17.5 kN/m3 2.0 m 3.0m A Soft clay y= 13.5 kN/m3 6.0 m Medium clay y=15.0 kN/m3 B 4.0 m Bedrock a) Before placing the compacted soil, what are the overconsolidation ratios (OCR) for point A and B? b) When placing the compacted soil, what external load Ag would be? c)...
1. (25 points) The soil profile at a site consists of a layer of fine sand...
1. (25 points) The soil profile at a site consists of a layer of fine sand 5 m thick above a layer of clay 4 m thick. Below the clay is a layer of impermeable rock. The groundwater table was observed at 2 m below ground level. The unit weight of the sand above and below the water table is 20 KN/m'. The water content of the clay is 25% and its dry unit weight is 15 KN/m'. The compression...
In the figure below, the natural soil profile consists of sand
overlying clay overlying sand overlying bedrock. A
water table is present 1 m beneath the surface of the natural
ground. If 4 m of consistent fill material (γfill = 15
kN/m3) was placed on top of this soil profile that covered a
large area, determine:
(a) The consolidation settlement of the clay layer (using 4
equal layers in your calculation), and
(b) The time (in days) for this consolidation...
Q8 An oil tank, 20 m in diameter, is to be built on a site where the soil profile consists of 4 m of dense gravel overlying 3 m of clay overlying rigid impermeable rock, and the water table is 1 m below the soil surface. If the tank applies a uniform pressure of 100 kPa to the surface of the soil calculate the differential settlement between the centre and perimeter of the tank after 1 year and after many...
5, A soil element inside a 20° natural soil slope carries total vertical stress (%) of 140 kPa, total horizontal stress (on) of 80 kPa and shear stress (Tvh) of 15 kPa Canticlockwise shear stress on vertical plane). The pore-water pressure (u) inside the element is 30 kPa. The critical state angle of friction of the soil is 30o and its undrained shear strength is 40 kPa. (a) Draw the Mohr's stress circles for this element in terms of total...
(5 points) 6. A soil profile consists of 4 ft of organic soil (a 75 pe) over a uniform soft clay layer. For the clay y 120 pcf and, ?'/o 1.0 The water table is at the ground surface. For a clay element A, at the depth of 10 feet from the ground surface (6 feet into the soft clay) compute the following Assume a wide fill, thickness 7 feet, ? 105 pcf is placed over the surface of the...
soil
3m 1 1 Q2)-A - Calculate the shearing strength along plane at 7 m in coarse sand soil , the ground water table is at depth of 3 m below the surface .the bulk density of soil above the water table is Yo=18.9 kN/m3 and the saturated density below ground water table is 20.5 kN/m². The angle of internal friction of the sand is 32° GS Yo = 18.9 kN/m3 GWT Ysat. = 20.5 kN/m B) A Q =...
The figure shows an element of soil at the interface between two dry sand layers on a a-32° slope The interface is d=7 m below the ground surface and ror both sand layers the friction angle is φ=30, and Ko= 0.41 Assume that the shear stress is zero on both the vertical and horizontal planes. Va1 (dry unit weight of sand layer 1) - 19 kN/m3 Ys2 (dry unit weight of sand layer 2) 20 kN/m Dry Sand (Yai Dry...
Soil mechanics
Q2)-A - Calculate the shearing strength along plane at 7 m in coarse sand soil , the ground water table is at depth of 3 m below the surface the bulk density of soil above the water table is Xb=18.9 kN/m3 and the saturated density below ground water table is 20.5 kN/m². The angle of internal friction of the sand is 320 1 GS 3m 1 4 m Yo = 18.9 kN/m2 GWT Ysat. = 20.5 kN/m2 B)...
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y 14.0 kN/m3 3.0 m Sand Y 17.5 kN/m3 2.0 m 3.0m A Soft clay y= 13.5 kN/m3 6.0 m Medium clay y=15.0 kN/m3 B 4.0 m Bedrock a) Before placing the compacted soil, what are the overconsolidation ratios (OCR) for point A and B? b) When placing the compacted soil, what external load Ag would be? c)...
1. (25 points) The soil profile at a site consists of a layer of fine sand 5 m thick above a layer of clay 4 m thick. Below the clay is a layer of impermeable rock. The groundwater table was observed at 2 m below ground level. The unit weight of the sand above and below the water table is 20 KN/m'. The water content of the clay is 25% and its dry unit weight is 15 KN/m'. The compression...
