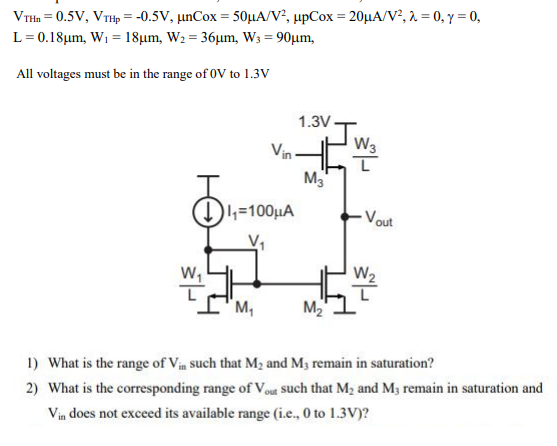

VHn 0.5V, VTHp= -0.5V, unCox 50iA/V2, upCox 20HA/V2, 2 = 0, y = 0, L 0.18um,...
Similar Homework Help Questions
CURRENT MIRRORS µn= 0.05 m2V-1s-1, µp= 0.02m2V-1s-1, Cox= 0.0125 F/m2, Vthn=0.4V, Vthp= -0.4V, λn=0.1 V-1, λp=0.3 V-1 VDD=1.8V W1= 40µm; W2=W3=80µm; all L are 0.5µm. RL=4k; VIN=0.5V Calculate voltag...
CURRENT MIRRORS
µn= 0.05 m2V-1s-1,
µp= 0.02m2V-1s-1,
Cox= 0.0125 F/m2, Vthn=0.4V,
Vthp= -0.4V, λn=0.1 V-1,
λp=0.3 V-1
VDD=1.8V
W1= 40µm; W2=W3=80µm; all L are
0.5µm. RL=4k; VIN=0.5V
Calculate voltage gain of the circuit below ignoring channel
length modulation.
Calculate voltage gain of the circuit below including channel
length modulation in small signal circuit.
M3 out lim
M3 out lim
CURRENT MIRRORS
µn= 0.05 m2V-1s-1,
µp= 0.02m2V-1s-1,
Cox= 0.0125 F/m2, Vthn=0.4V,
Vthp= -0.4V, λn=0.1 V-1,
λp=0.3 V-1
VDD=1.8V
W1= 40µm; W2=W3=80µm; all L are
0.5µm. RL=4k; VIN=0.5V
Calculate voltage gain of the circuit below ignoring channel
length modulation.
Calculate voltage gain of the circuit below including channel
length modulation in small signal circuit.
M3 out lim
M3 out lim
