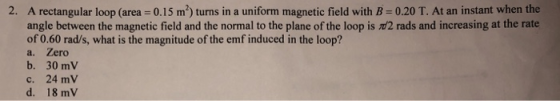

Which letter is correct? 2. A rectangular loop (area 0.15 m2) turns in a uniform magnetic...

Question

Question

Which letter is correct?

science Advanced-Physics

Answer 1

Answer #1

Sagn he wagmitile es induced enf 3, magnati c p alt dt ohare dt a Sahahe dhe magnitude ef inducod emft

Answer 2

Similar Homework Help Questions

A rectangular loop (area = 0.250 m2) turns in a uniform magnetic field with B =...

A rectangular loop (area = 0.250 m2) turns in a uniform magnetic field with B = 0.210 T. At an instant when the angle between the magnetic field and the normal to the plane of the loop is π/2 rads and increasing at the rate of 0.530 rad/s, what is the magnitude of the emf induced in the loop? 9.91E–2 V 1.47E–2 V 2.78E–2 V 5.25E–2 V 0
2.) (a) A rectangular loop of area 0.15 m2 turns in a uniform magnetic field B-...

2.) (a) A rectangular loop of area 0.15 m2 turns in a uniform magnetic field B- 0.2 T. When the angle between the field and the normal to the loop is ?/2 radians and increasing at 0.6 rad/s, what emf is induced in the loop? (b) A current of 20 mA flows ina single circular loop of 2m circumference. A magnetic field of 1 T is directed parallel to the plane of the loop. What is the magnetic moment of...
A rectangular loop (area = 1.1 m2) turns in a uniform magnetic field, B = 2.6...

A rectangular loop (area = 1.1 m2) turns in a uniform magnetic field, B = 2.6 T. When the angle between the field and the normal to the plane of the loop is pi/2 rad and increasing at 2.1 rad/s, what emf is induced in the loop?

Chapter 30, Problem 022 A rectangular loop (area 2.6 m2) turns in a uniform magnetic field,...

Chapter 30, Problem 022 A rectangular loop (area 2.6 m2) turns in a uniform magnetic field, B = 2.9 T. when the angle between the field and the normal to the plane of the loop is π / 2 what emf is induced in the loop? Number the tolerance is +/-596 rad and increasing at 3.7 rad/s, Units
7.) (a) A rectangular loop of area 0.1 m2 rotates in a uniform magnetic field of...

7.) (a) A rectangular loop of area 0.1 m2 rotates in a uniform magnetic field of B 2 T. When the angle between the magnetic field and the surface of the loop is 600 and increasing at 1 rad/s, what emf is induced in the loop? (b) The loop has turned further and has stopped with its surface parallel to the magnetic field. If the magnetic field then changes at the rate of 1 T/s, what emf is induced in...
A coil of 255 turns and area 0.500 m2 rotates in a uniform magnetic field B...

A coil of 255 turns and area 0.500 m2 rotates in a uniform magnetic field B = 0.350 T such that the angle between the magnetic field and the area vector is given by φ(t) = 6.50t rad. If the coil starts from rest at t = 0, what is the magnitude of the emf induced in the coil at t = 25.8 s?

A single loop of wire with an area of 0.0900 m2 is in a uniform magnetic...

A single loop of wire with an area of 0.0900 m2 is in a uniform magnetic field that has an initial value of 3.80 T, is perpendicular to the plane of the loop, and is decreasing at a constant rate of 0.190 T s. (a) What emf is induced in this loop? (b) If the loop has a resistance of find the current induced in the loop.
A single loop of wire with an area of 9.07×10−2 m2 is in a uniform magnetic...

A single loop of wire with an area of 9.07×10−2 m2 is in a uniform magnetic field that has an initial value of 3.77 T , is perpendicular to the plane of the loop, and is decreasing at a constant rate of 0.191 T/s . A) What emf is induced in this loop? B) If the loop has a resistance of 0.620 Ω , find the current induced in the loop.
A rectangular loop of wire is pushed into a region of uniform magnetic field. Given the...

A rectangular loop of wire is pushed into a region of uniform magnetic field. Given the data in the figure, what is the magnitude of the emf induced in the one-turn loop? B into page B=0.60 T 0.20 m 10 ms ® 0.50 m 3.00 V 0.120 V 1.20 V 0.300 V 6.00 V

12. A rectangular loop of wire carrying a 4.0-A current is placed in a magnetic field...

12. A rectangular loop of wire carrying a 4.0-A current is placed in a magnetic field of 0.60 1. The magnitude of the torque acting on this wire when the plane of the loop makes a 30° angle with the field is measured to be 1.1 N.m. What is the area of this loop? A) 0.20 m2 B) 0.40 m2 C) 0.26 m2 D) 0.80 m2 E) 0.53 m2
