A building, 20 m wide × 25 m long × 5 m high is ventilated at...

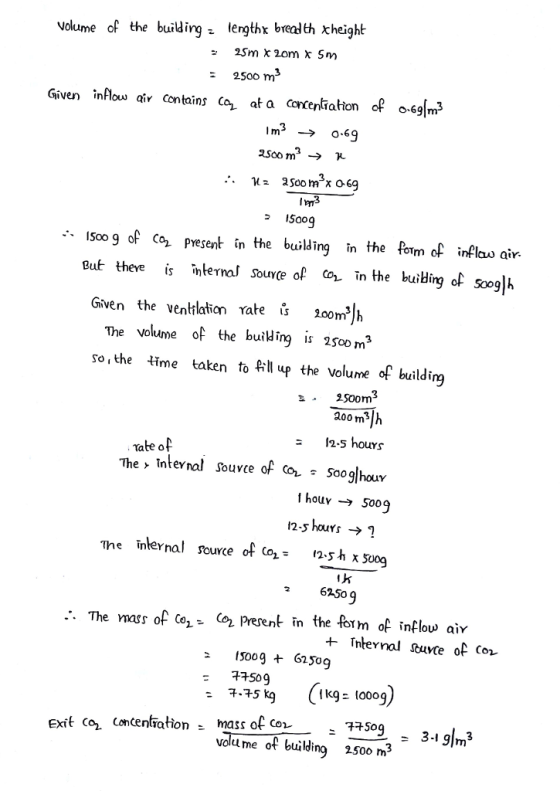

A building, 20 m wide × 25 m long × 5 m high is ventilated at a rate of 200 m3/h. The inflow air contains CO2 at a concentration of 0.6 g/m3. There is an internal source of CO2 in the building of 500 g/h. What is the mass of CO2 in the building and the exit CO2 concentration?
Homework Answers
